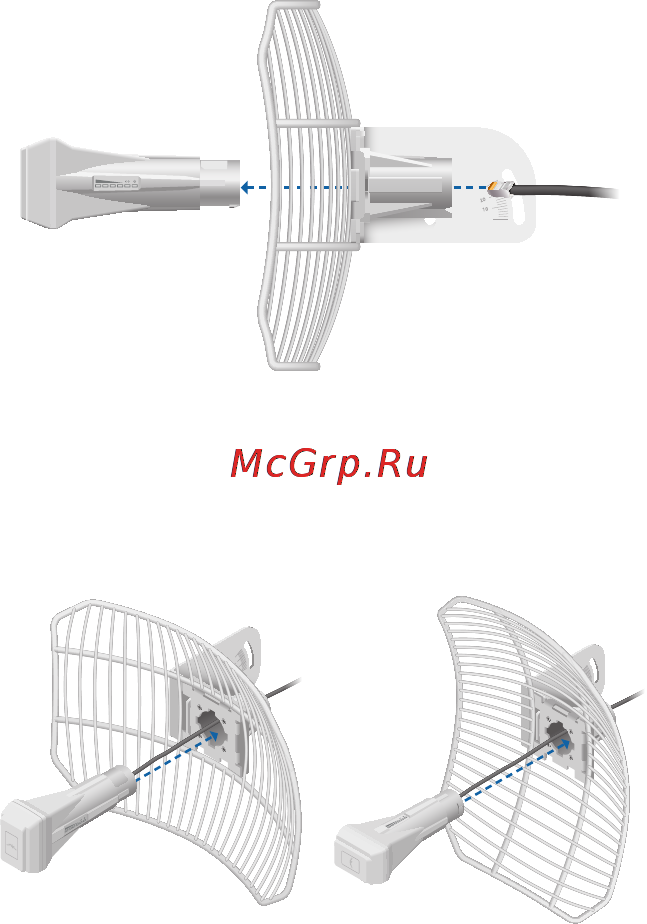

5. Route an Ethernet cable through the Rear Housing. Connect
the cable to the Ethernet port on the back of the Antenna
Feed.
6. Attach the Antenna Feed:
a. Rotate the Antenna Feed to match the signal
polarization.
b. Insert the Antenna Feed into the Rear Housing, and push
until it locks into place with a click.
Vertical Polarization Horizontal Polarization
