7. Lightly pull the Antenna Feed to ensure that the Release

Button is fully engaged and locked into place.

Bottom View

Release Button

Note: If you need to remove the Antenna Feed, you

must depress the Release Button first.

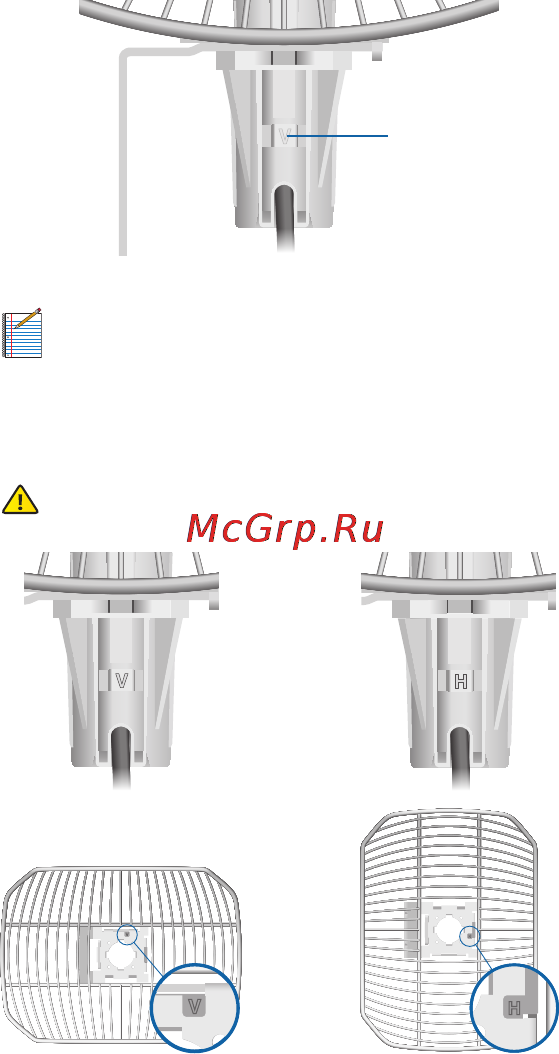

8. The Release Button indicates the Antenna Feed polarization.

Confirm that the polarization indicator, V or H, on the

Antenna Feed matches the indicator on the Grid Reflector.

WARNING: The polarization indicators must match.

Vertical Polarization Horizontal Polarization
