Introduction

Thank you for purchasing the Ubiquiti Networks

™

airGrid

™

5GHz

High-Performance Integrated InnerFeed Antenna. This Quick

Start Guide is designed to guide you through the installation, and

show you how to access the airOS

™

Configuration Interface. This

Quick Start Guide also includes the warranty terms and is for use

with the airGridM5 HP, model AG-HP-5G23.

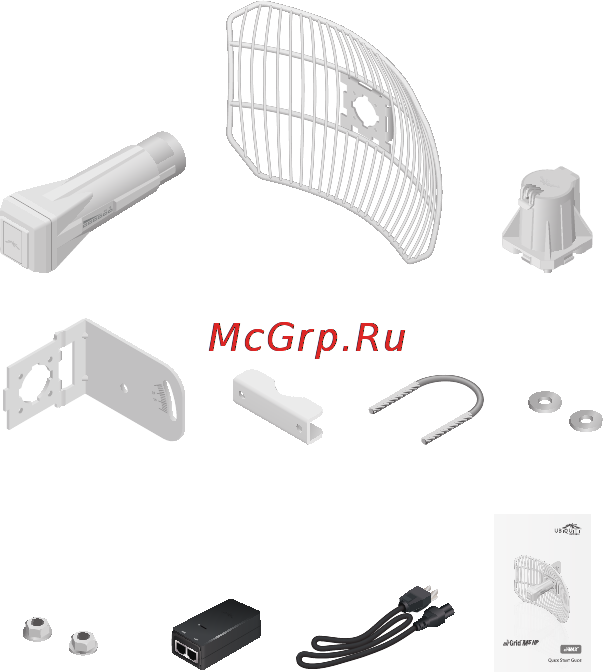

Package Contents

Antenna Feed Grid Reflector Rear Housing

L-Bracket Pole Clamp M6 U-Bolt M6 Washers

(Qty. 2)

5 GHz High-Performance

Integrated InnerFeed

Antenna

Model: AG-HP-5G23

M6 Flange Nuts

(Qty. 2)

PoE Adapter

(24V, 0.5A)

Power Cord Quick Start Guide

Grid reflector and mounting hardware packaged separately. Products may be different from

pictures and are subject to change without notice.

cable and earth grounding must be used as conditions of product warranty. TOUGHCable is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.
