Hardware Installation

Assemble the airGrid according to your chosen polarization.

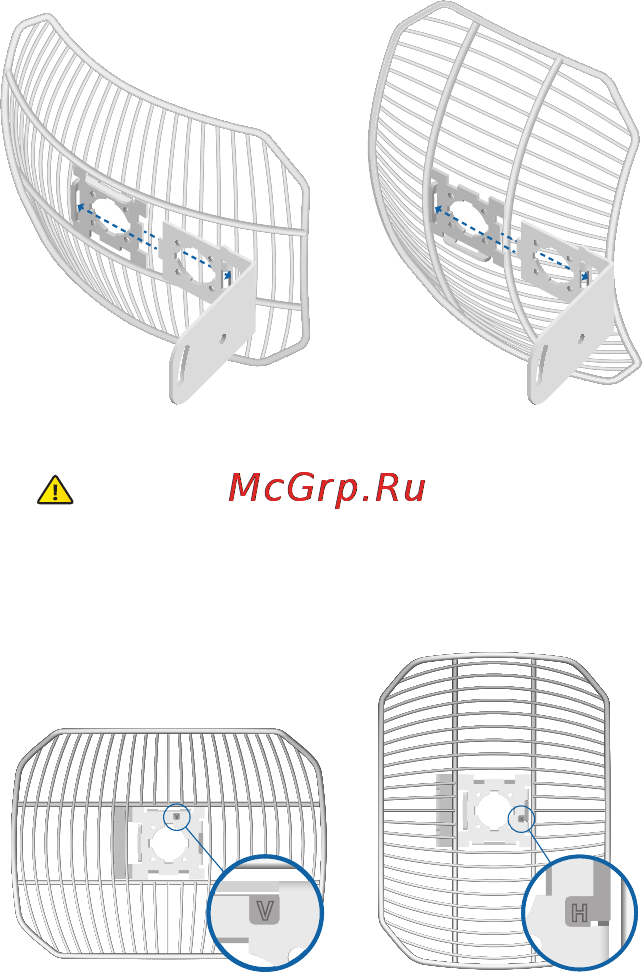

1. Attach the L-Bracket to the Grid Reflector by sliding the tabs

into the slots.

Vertical Polarization Horizontal Polarization

WARNING: The polarization of the airGrid must

match the polarization of its corresponding device

(horizontal to horizontal, vertical to vertical).

2. On the front of the airGrid, ensure the polarization indicator,

V or H, properly matches your desired polarization.

Vertical Polarization Horizontal Polarization
