Ubiquiti AirGrid M5 HP 27dBi [2/6] Aghp_ds_02
![Ubiquiti AirGrid M5 HP 27dBi [2/6] Aghp_ds_02](/views2/1072820/page2/bg2.png)
Ubiquiti’s revolutionary InnerFeed technol-
ogy integrates the entire radio system into
the feedhorn of an antenna. AirGrid M HP
combines Ubiquiti’s Innerfeed and AirMax
(TDMA Protocol) technologies to create a
simple, yet extremely powerful and robust
wireless unit capable of 100+Mbps real
outdoor throughput and up to 30km+
range.
Complete antenna and radio system
integration provides revolutionary cost/
performance solutions to the Worldwide
Broadband Industry.
The low cost, hi-performance, robust
“all-in-one” design, and light weight of
AirGrid M HP make it extremely versatile
and ideal in several different applications
(see diagrams on right for some usage
examples).

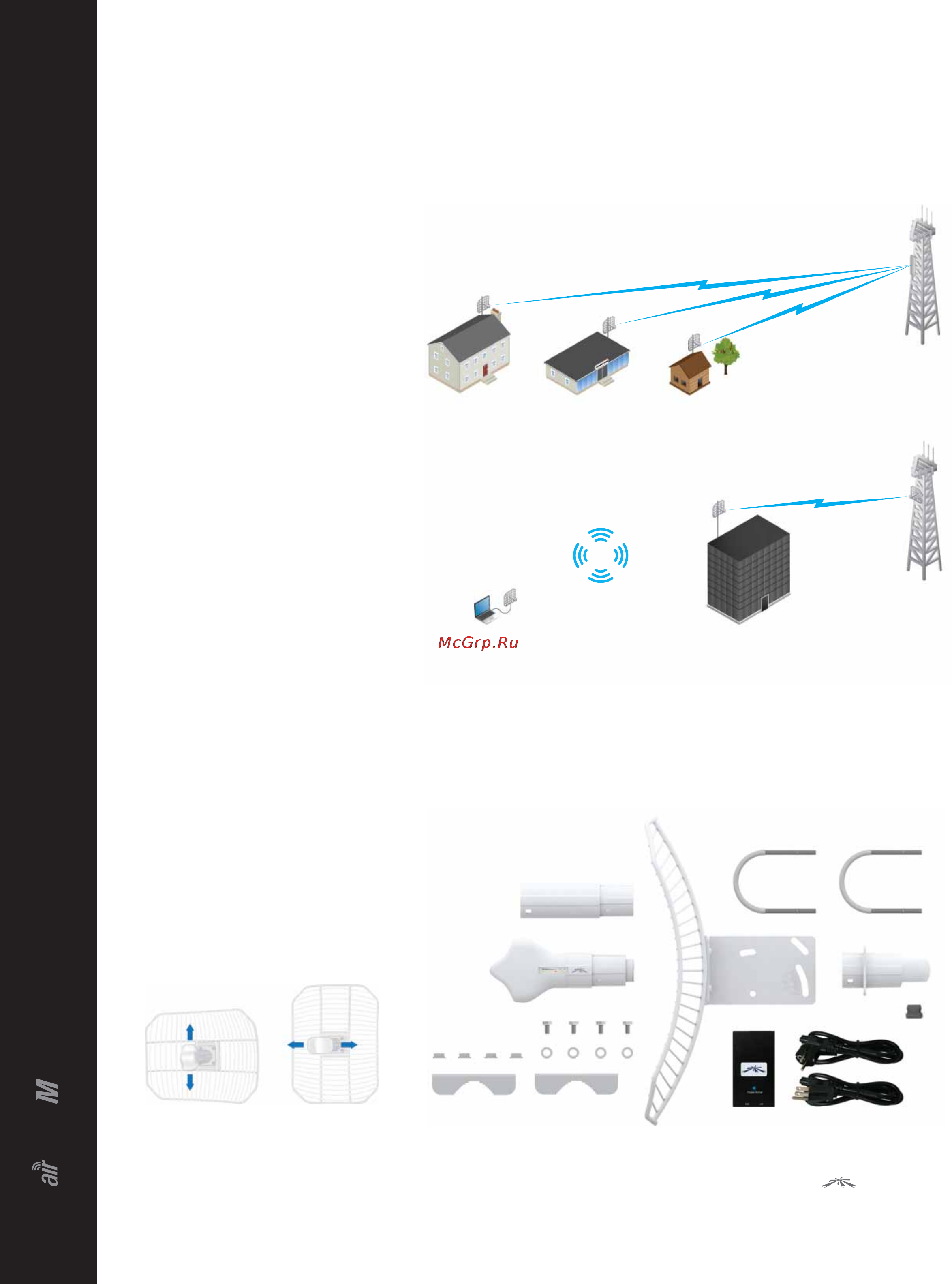

Usage Examples
AirGrid M as powerful clients in an AirMax
PTMP (point to multi-point) network setup.
Using two AirGrid M to create a powerful, long
range, PTP (point to point) link.
AirGrid M as a powerful wireless client.
InnerFeed Antenna Technology
AirGrid M HP was designed to be extremely
robust to use. It can be easily oriented to
use either vertical or horizontal polarization.
To adjust polarization, just rotate the
antenna in the desired polarization position
and rotate the opening on the rear portion
of the feed to face the ground (for optimal
weatherproofing).
AirGrid M HP is available for 2.4GHz and
5GHz in both 11x14” and 17x24“ grid
dimensions. A “snap-on” feed extension is
included when using 17x24”.
Mechanical design provides complete
weatherproof performance. Activity and
signal strength LED's provided for installers.
Enhanced RF and Ethernet ESD/Surge
protection enables prolonged operation in
harshest environments.
Vertical Polarity Horizontal Polarity
Robust and Simple Design
02
Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reserved www.ubnt.com
PTMP CLIENT LINKS
PTP LINK
Overview
Datasheet
|
Grid
