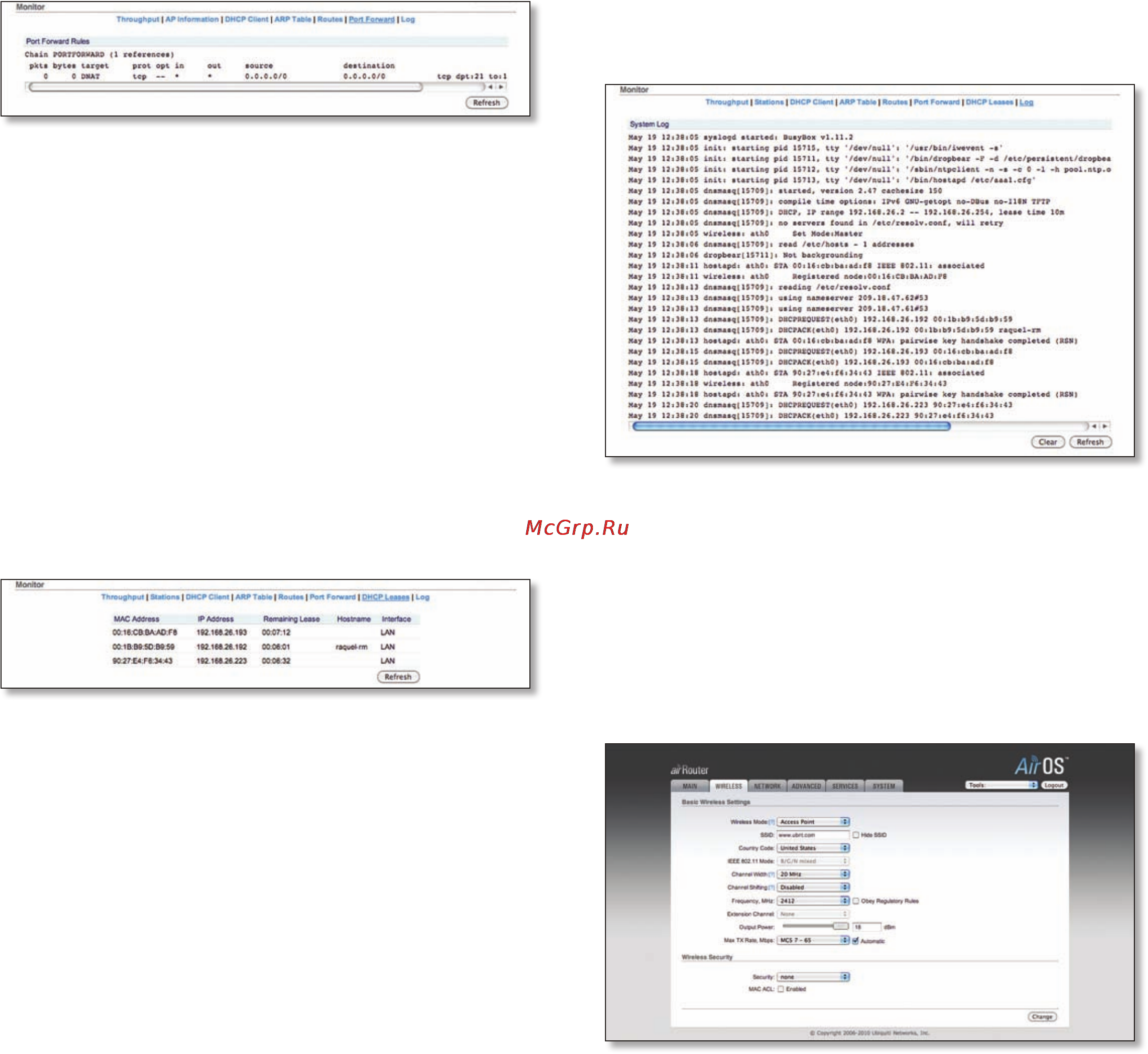

8Ubiquiti Networks, Inc.
Chapter 3: AirOS™ AirRouter User Guide
Port Forward
Lists active port forward entries in the PORTFORWARD
chain of the standard iptables nat table, while the device is
operating in Router mode.
The list can be refreshed using the Refresh button. Port
forwarding is enabled and configured on the Network tab.
Port forwarding allows you to connect to a specific service
such as an FTP server or Web server. Port Forwarding
creates a transparent tunnel through a firewall/NAT,
granting access from the WAN side to the particular
network service running on the LAN side.
DHCP leases
Shows the current status of the leased IP addresses by
the device’s DHCP server. This option is available if DHCP
Server is enabled while the device is operating in Router
mode.
MAC Address Displays the client’s MAC address, which is
connected to the Access Point.
IP Address Displays the client’s IP address leased by the
device’s DHCP server.
Remaining Lease Time Shows for how long the leased
IP address will be valid and reserved for particular DHCP
client.
Hostname Displays the device name (hostname) of the
client receiving an IP lease.
Interface Name Displays the interface to which the
specific MAC address is connected.
The list can be updated using the Refresh button.
More information is provided in the Wireless section.
Log
When logging is enabled (Services > System Log > Enable
Log) this option lists all registered system events. By
default, logging isn’t enabled.
Clear Deletes all entries in the system log.
Refresh The System Log content is updated.
Wireless
The Wireless Page contains everything needed by the
operator to setup the wireless part of the link. This
includes regulatory requirements, SSID, channel and
frequency settings, device mode, data rates, and wireless
security.
Basic Wireless Settings
The general wireless settings, such as wireless mode,
wireless network name(SSID), country code, 802.11 mode,
output power and data rates can be configured in this
section.
Wireless Mode Allows you to specify the operating
mode of the device. The mode depends on the network
topology requirements. There are 4 operating modes
supported on the AirRouter:
