2Ubiquiti Networks, Inc.
Chapter 2: InstallationAirRouter User Guide
Chapter 2:
Installation
Hardware Installation

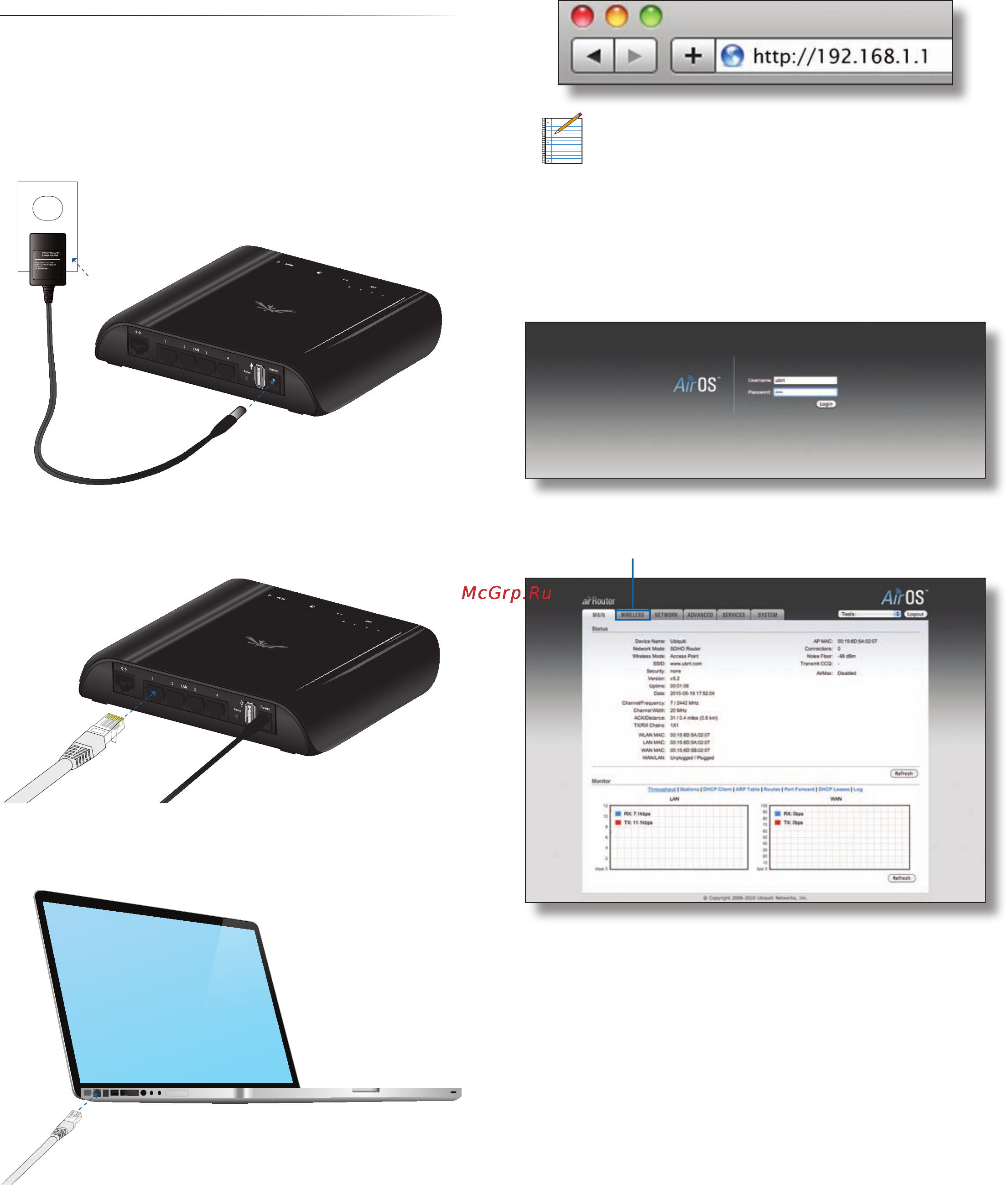

To install the AirRouter, perform the following steps:
1. Connect the power adapter to the port labeled Power
on the AirRouter. Connect the other end to of the
power adapter to a power outlet.
2. Connect an Ethernet cable to Ethernet port 1.
3. Connect the other end of the Ethernet cable to your
computer.
4. Launch your Web browser and type http://192.168.1.1
in the address field and press enter (PC) or return (Mac).
Note: Your computer needs to be on the
192.168.1.x subnet. If you have DHCP
enabled on your Ethernet adapter, it should
receive an address automatically. If not, you
will need to set a static IP address in the
192.168.1.2 - 192.168.1.254 range.
5. The login screen will appear. Enter ubnt in the
Username and Password fields and click Login.
6. The AirOS interface will appear. Go to the Wireless tab.
Wireless tab
