46
7 DV MODE OPERATION (Optional UT-121 is required for IC-91A)
■ Received call sign
When a call is received in DV mode, the calling station and
the repeater call signs being used can be stored into the re-
ceived call record. The stored call signs are viewable in the
following manner.
Up to 20 calls can be recorded.
DD
Desired call record indication
qEnter RX call sign set mode.
• RX CALL SIGN screen is displayed.
wRotate [DIAL]
†
to select the desired record channel.

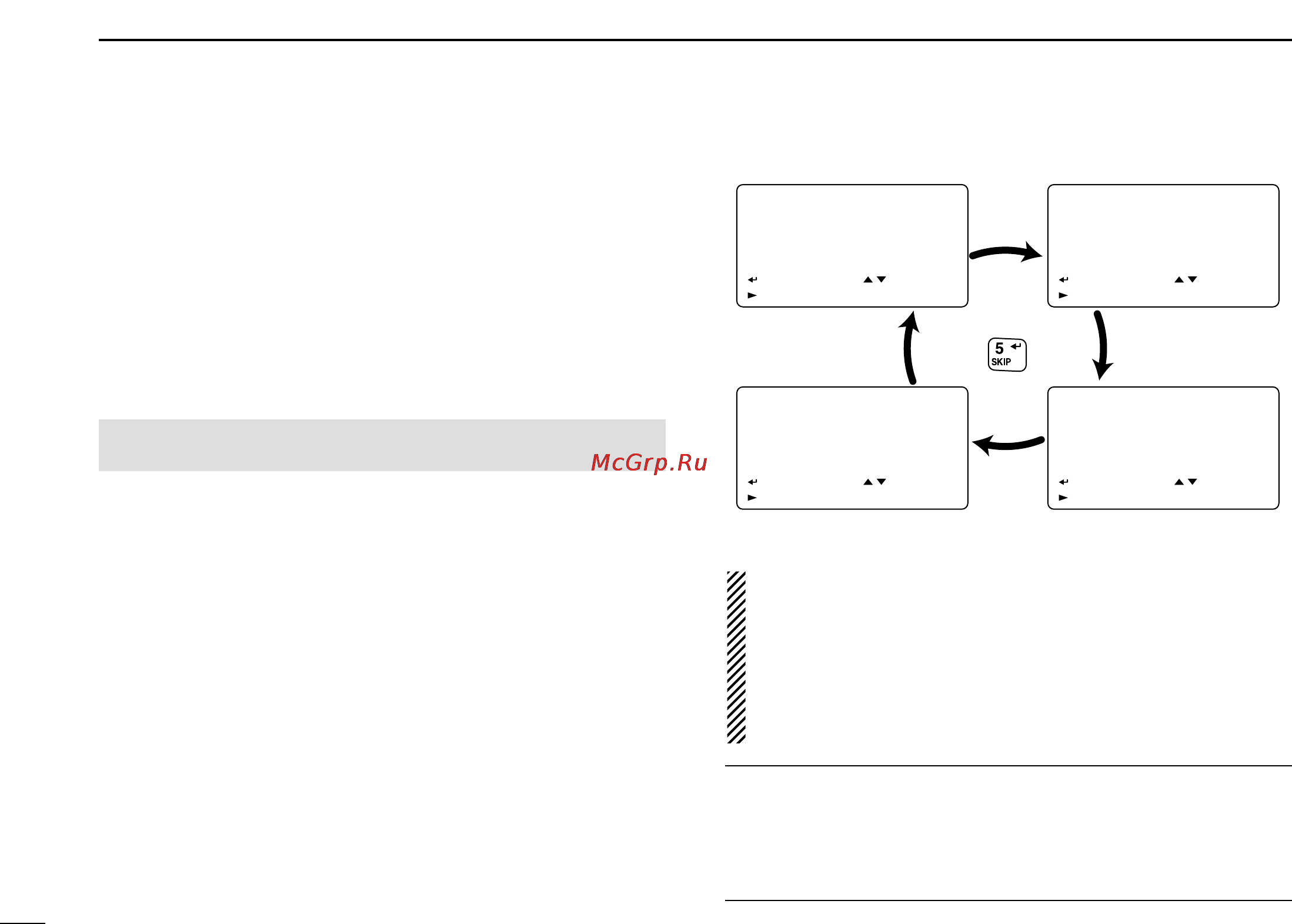

eTo confirm the received call, push [ï](5) several times to
select the desired call sign from CALLER, CALLED,
RXRPT1 and RXRPT2.
CALLER : The station call sign that made a call.
CALLED : The station call sign called by the caller.
RXRPT1 : The repeater call sign used by the caller station.
RXRPT2 : The repeater call sign linked from RXRPT1.
rPush [MENU/LOCK] to return to frequency indication.
NOTE: When a call is received in DV mode when the
power save function is activated, the call sign may not be
received correctly.
This is normal, not a malfunction, because of header of the
call sign cannot be detected during power save.
Turn the power save function OFF
(p. 115) if you want to
receive a call sign correctly even in stand-by condition.
✔
For your information
When receiving a call, the received station call sign is auto-
matically displayed and scrolled in sequence at the bottom
line of the function display.
This can be turned OFF in display set mode. (p.100)
RX01RX01
CALLER: CALLER:
AAAAAAAAAAAA
/
:CALLED
:SEL
:COPY CLR:CLR
RX CALL SIGN
r
RX01RX01
CALLED: CALLED:
CQCQCQCQCQCQ
:RXRPT1
:SEL
:COPY CLR:CLR
RX CALL SIGN
r
RX01RX01
RXRPT2: RXRPT2:
:CALLER
:SEL
:COPY CLR:CLR
RX CALL SIGN
r
RX01RX01
RXRPT1: RXRPT1:
:RXRPT2
:SEL
:COPY CLR:CLR
RX CALL SIGN
r
Push
• Station call sign • Called station call sign
• Repeater 1 call sign• Repeater 2 call sign
MENU screen ➪ RX CALL SIGN
(Push [MENU/LOCK]) (Rotate [DIAL]
†
, then push [ï](5)
†
.)
†
[DIAL] ↔ [
∫∫
](2)/[
√√
](8) [ï](5) ↔ [
≈≈
](6)
