31
4
BATTERY CHARGING
D Using the BC-197 to rapid charge the BP-264 or
BP-265

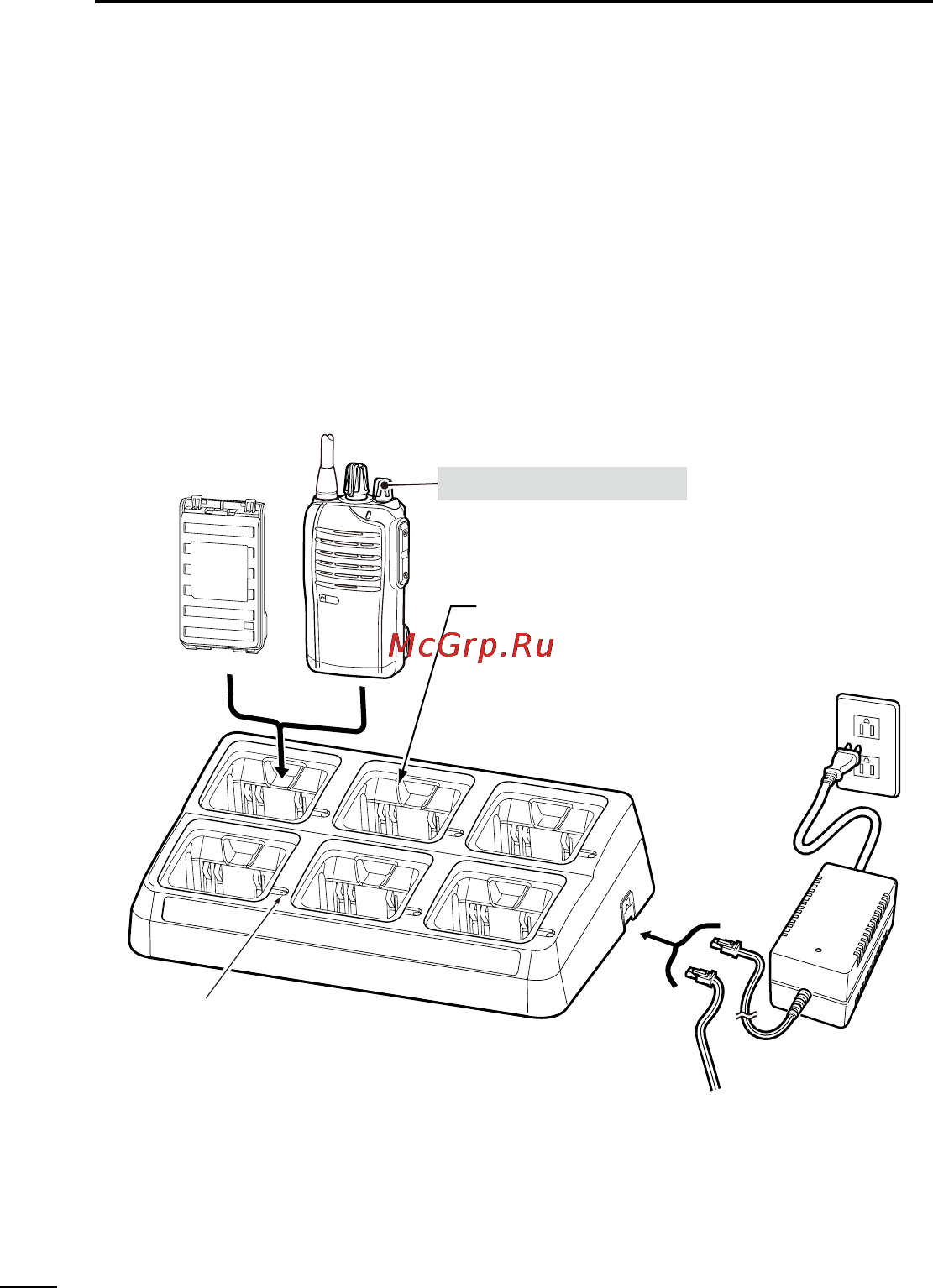

The BC-197 rapidly charges up to six battery packs.
Charging time for the BP-264: Approximately 2 hours
Charging time for the BP-265: Approximately 2.5 hours
The following additional item is required:
• An AC adapter (not supplied with some versions) or the OPC-656 d c
p o w e r c a b l e
Transceiver
Battery pack
Tu rn OFF the power
Status indicator
(each indicator independently functions)
OPC-656 (DC power cable)
AC adapter
(No AC adapt-
er is supplied,
depending on
the version.)
(Connect to a DC power supply;
12 to 16 V/at least 7 A)
Red line : + Black line : _
The charger adapters are in-
stalled in each slot. The shape
of charger adapter depends
on the version of the BC-197.
