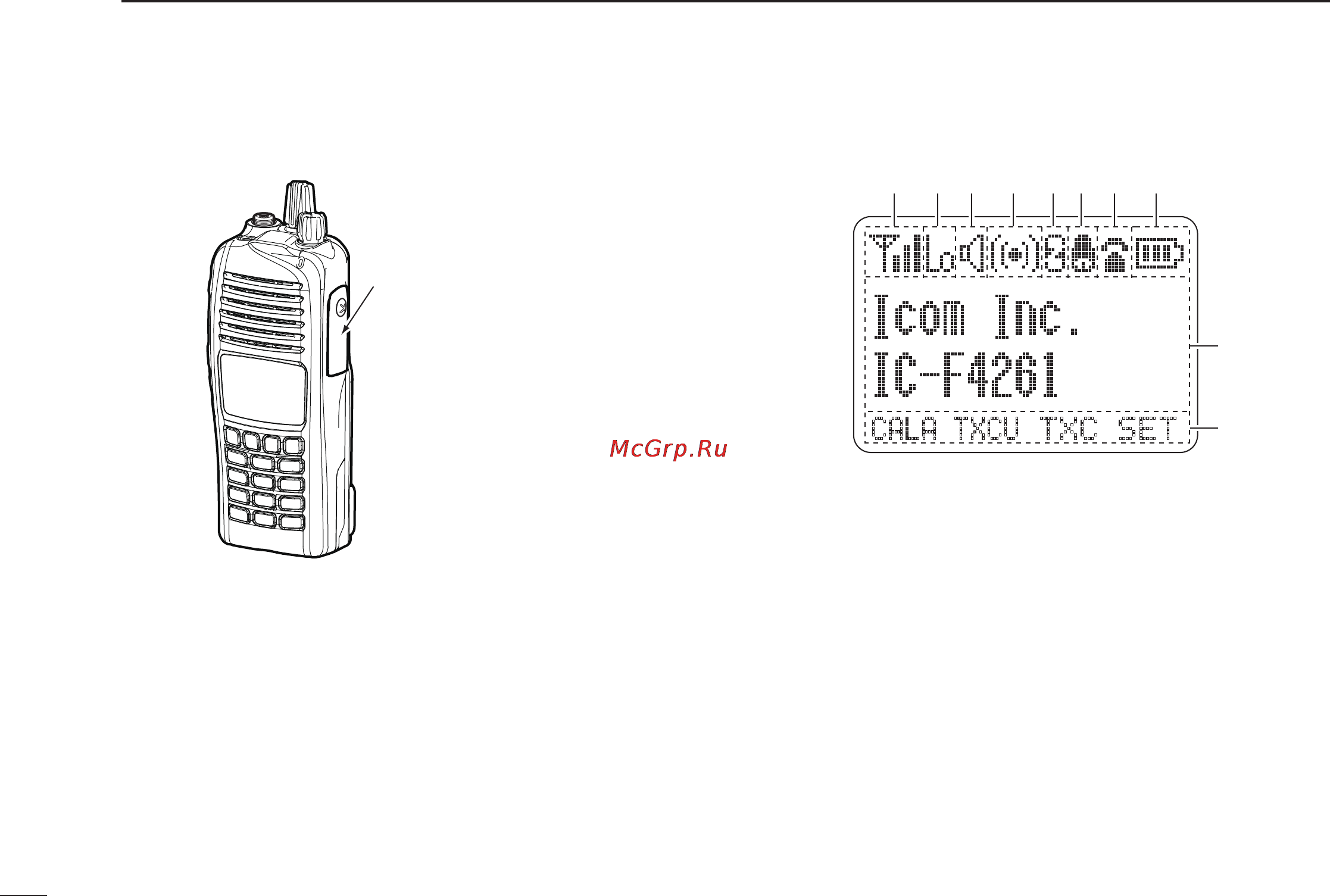

Icom IC-F4260 [10/40] Function display

!0 MULTI-CONNECTOR

Connects to optional equipment.

Connector cover

NOTE: Attach the connec-

tor cover when optional

equipment is not used.

See page 3 for details.

!1 BUSY/TRANSMIT INDICATOR

 ➥Lights green while receiving a signal, or when the

squelch is open.

 ➥Lights red while transmitting.

!2 VOLUME CONTROL [VOL]

Rotate to turn the transceiver power ON or OFF, and ad-

just the audio level.

Function display ■

SET

CALA TXCU

TXC

q t iuyrew

q SIGNAL STRENGTH ICON

 Indicates relative signal strength level.

w LOW POWER ICON

 Appears when low output power is selected.

• When the battery power decreases to a specied level, low

power is automatically selected.

e AUDIBLE ICON

 ➥ Appears when the channel is in the ‘audible’ (unmute)

mode.

 ➥ Appears when a matched signal is received.

r COMPANDER ICON

 Appears when the compander function is activated.

t SCRAMBLER ICON

 Appears when the voice scrambler function is activated.

PANEL DESCRIPTION
