23
3
BIIS OPERATION
3
DD
Programming an SDM memory
(IC-F1821/D or IC-F2821/D only)
q During standby condition, push [P1] (Digital) twice, then
push [Up] or [Down] to select the desired SDM to be edit-
ed.
w Push [M] or [#] to enter the message editing condition.
•The first character blinks when [#] is pushed, the last character
blinks when [M] is pushed.
• “ ” blinks.
e Push the appropriate digit key, [0] to [9], to enter the
desired character.
• See the table at right for the available characters.
•Pushing [UP] also enters space, pushing [DOWN] deletes the
selected character.
r Push [#] to move the cursor to the right, push [M] to move
the cursor to the left.
t Repeat steps e and r to set the desired text message.
y Push [P1] (Digital) for 1 sec. to overwrite the set content
into the memory.
• Push [P1] (Digital) momentarily to cancel the editing and return to
the original message indication.
• Available characters
NOTE: A decimal point can only be written with the CS-
F70/F1700
CLONING SOFTWARE
. Pre-programmed charac-
ters can be rewritten with the 10-keypad, except for the
decimal point, as it is not included in the transceiver char-
acter list, and cannot be displayed again.
Key
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
Characters
0 ! ? ' " , ; : _ ( ) < > [ ]
1 (space) # * / + - = & % $ @ ^
2 A B C a b c
3 D E F d e f
4 G H I g h i
5 J K L j k l
6 M N O m n o
7 P Q R S p q r s
8 T U V t u v
9 W X Y Z w x y z
/
!

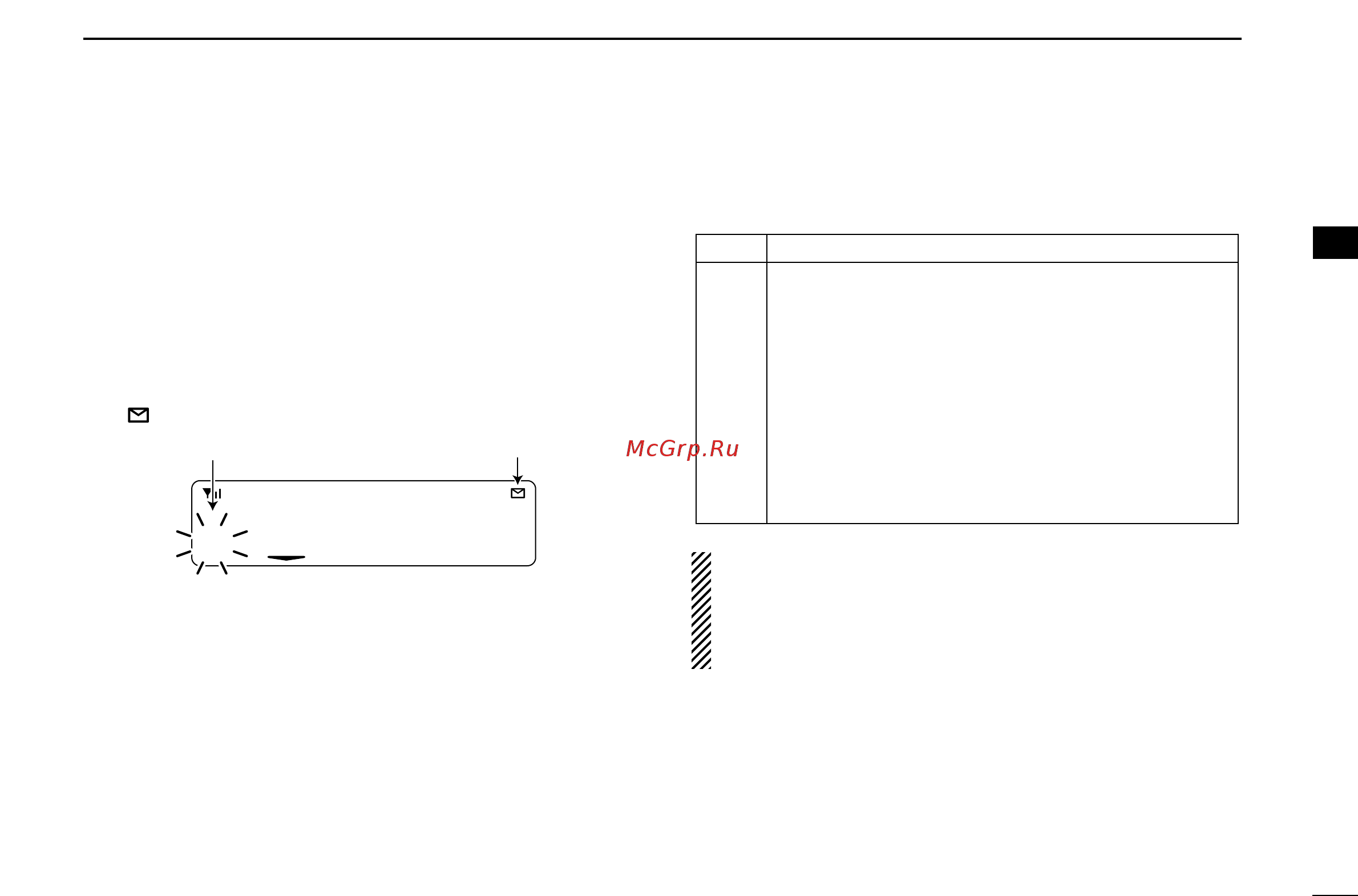

MESSAGE 8
SDM 8
BlinksBlinks
When [#] is pushed.
