Icom IC-F9511S [19/24] N rear panel connection
![Icom IC-F9511S [19/24] N rear panel connection](/views2/1074231/page19/bg13.png)
14
3
CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
r
Antenna
Solder
Crimp
NOTE: Use the terminals as shown
below for the cable connections.
R CAUTION! NEVER remove
the fuse-holder from the DC
power cable.
q
ew
q ANTENNA CONNECTOR
Connects to an antenna.
Contact your dealer about
antenna selection and
placement.
w D-SUB 25-PIN
Connect an
external unit.
e EXTERNAL
SPEAKER JACK
Connect a 4–8 ø
external speaker.
r MICROPHONE HANGER
Connect the supplied mi-
crophone hanger to the
vehicle’s ground for micro-
phone on/off hook func-
tions. (See p. 2)
y DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay atten-
tion to polarities. NEVER connect to a 24 V
battery. This could damage the transceiver.
Supplied speaker SP-22
(IC-F9511T only. IC-F9511S have
a built-in speaker.)
t
t IGNITION LEAD
Connects to a ignition line.
R
DO NOT put a pressure
to this lead.
Binding to the DC power
cable is recommended.
Black
Red
12V
Battery
y

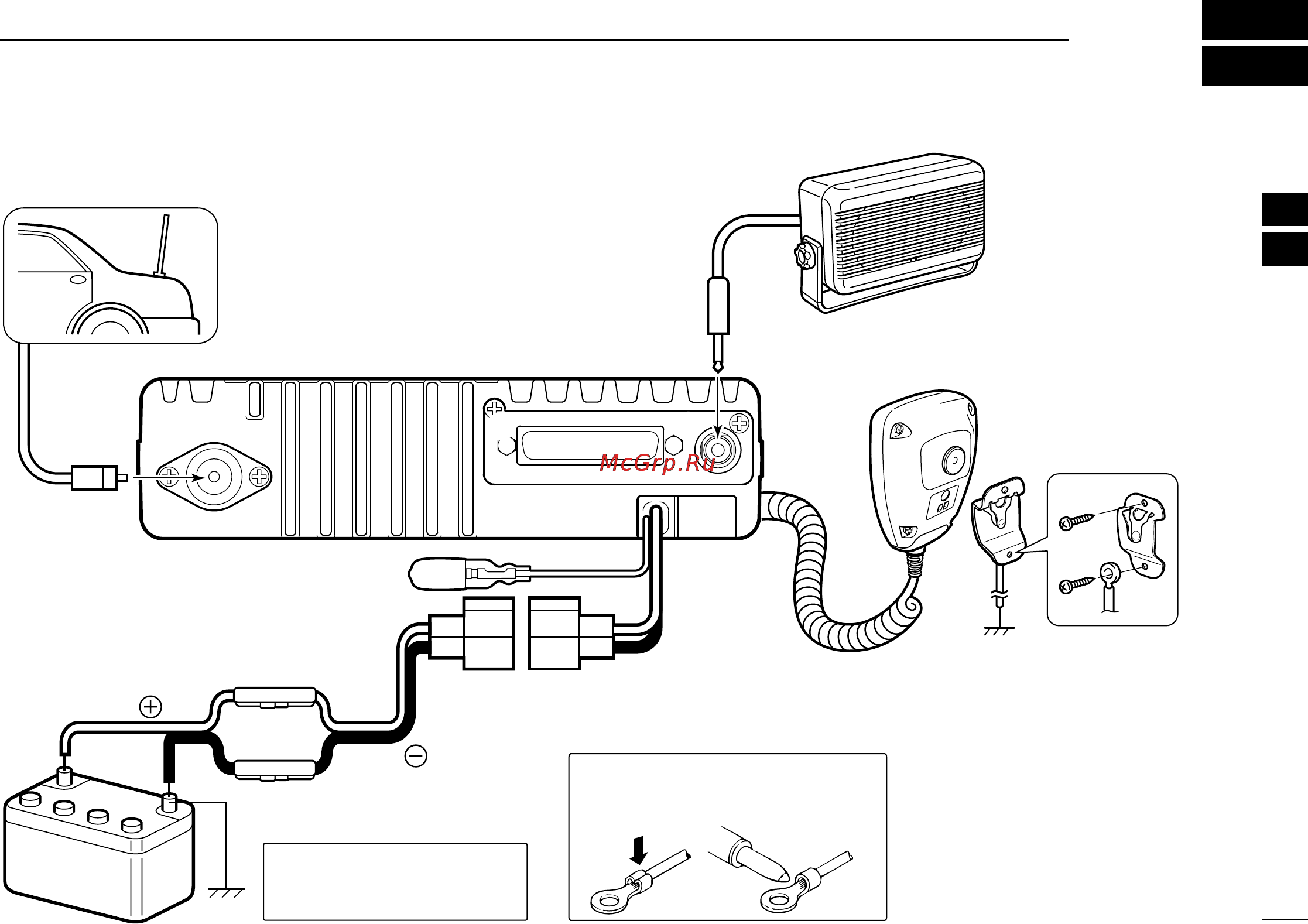

n Rear panel connection
