1
1
PANEL DESCRIPTION
0 1 c h -01
I C - F 9 51 1 T
o
q
e*w
e*
IC-F9511S
IC-F9511T
y ru ti

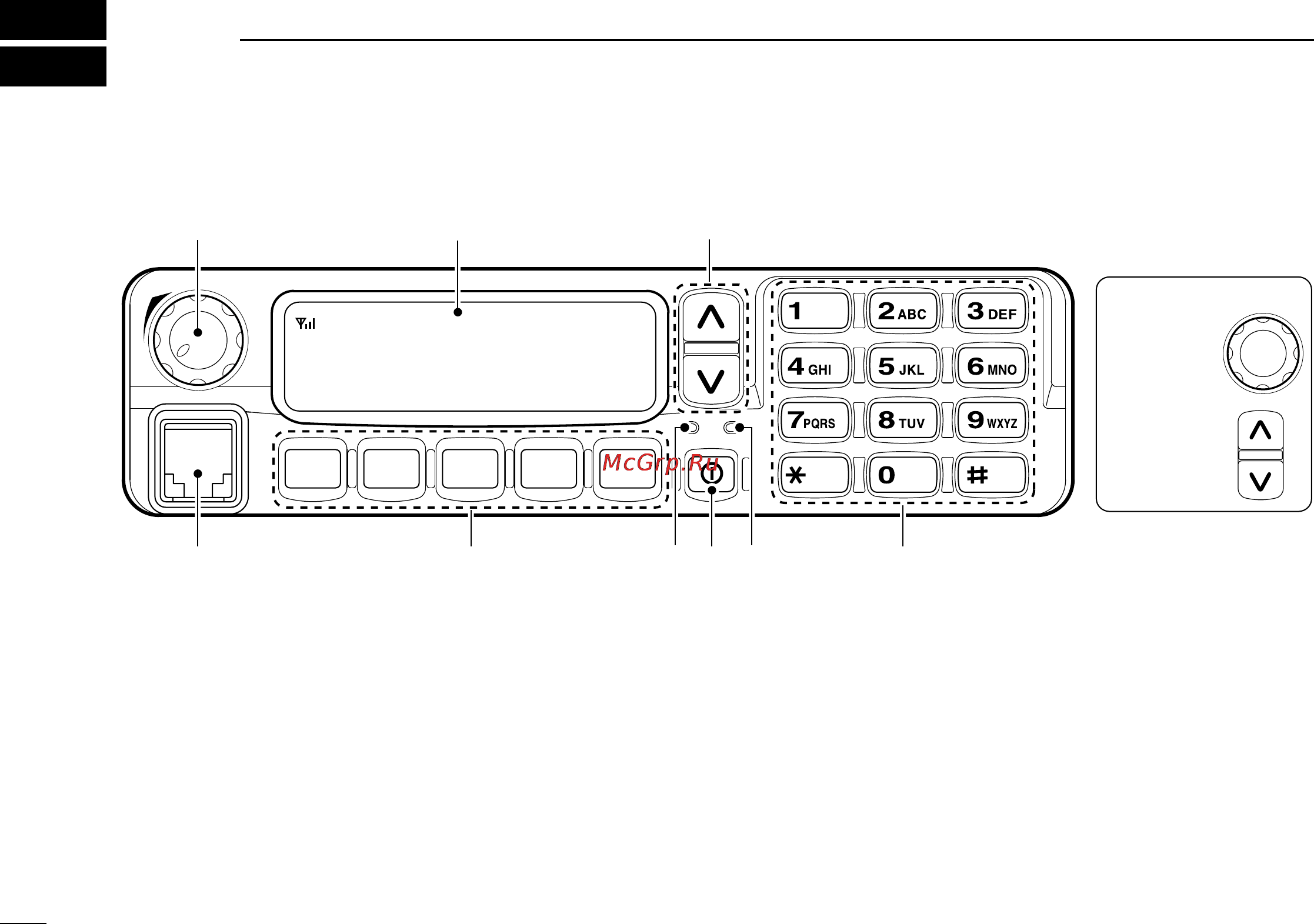

n Front panel
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w FUNCTION DISPLAY (p. 3)
Displays a variety of information, such as an operating
channel number/name, DTMF numbers and audible con-
dition, etc.
e DIAL or UP/DOWN KEYS
• IC-F9511S:
DIAL
Rotate to select an operating channel, etc.
• IC-F9511T:
UP/DOWN Keys
Push to select an operating channel, etc.
*The desired function can be assigned by your dealer. (p. 4)
