Icom IC-F9511HT [20/32] Connection and maintenance
![Icom IC-F9511HT [20/32] Connection and maintenance](/views2/1074237/page20/bg14.png)
15
3
CONNECTION AND MAINTENANCE
D Main unit

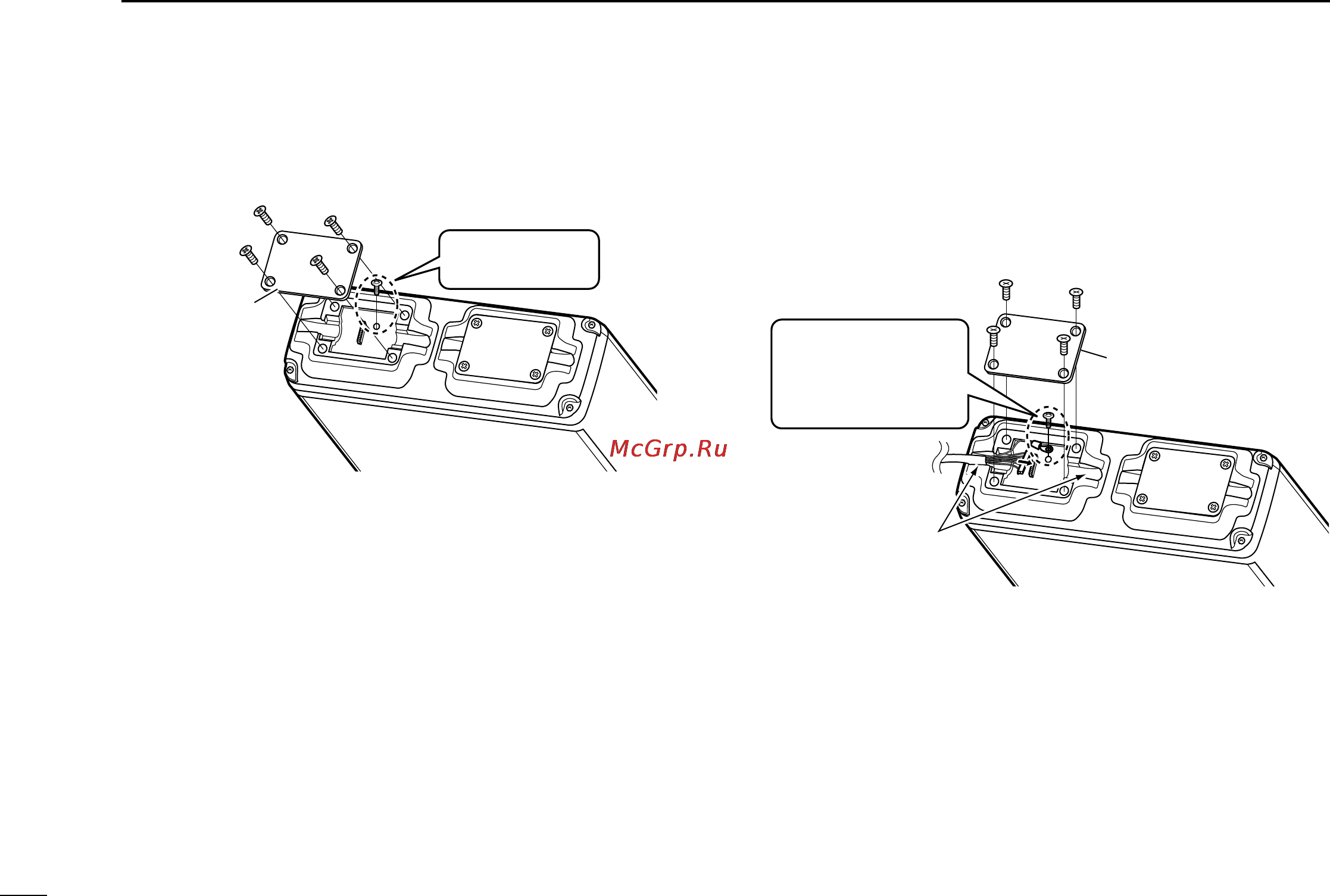

q Unscrew the 4 screws of the front plate (either the left or
right), then remove the front plate from the main unit.
Main unit
Unscrew the cir-
cuit board screw.
Front plate
w Connect the opposite side of the separation cable that is
connected to the controller described on the previous page
as shown below.
• The cable can be inserted into either the left or right grooves as
desired.
Main unit
Separation
cable
Front plate
Cable grooves
Screw the removed
circuit board screw
in step q to connect
the cable terminal.
e After the cable connection, replace the removed front plate
and the 4 screws, then connect the DC power cable.
