PANEL DESCRIPTION

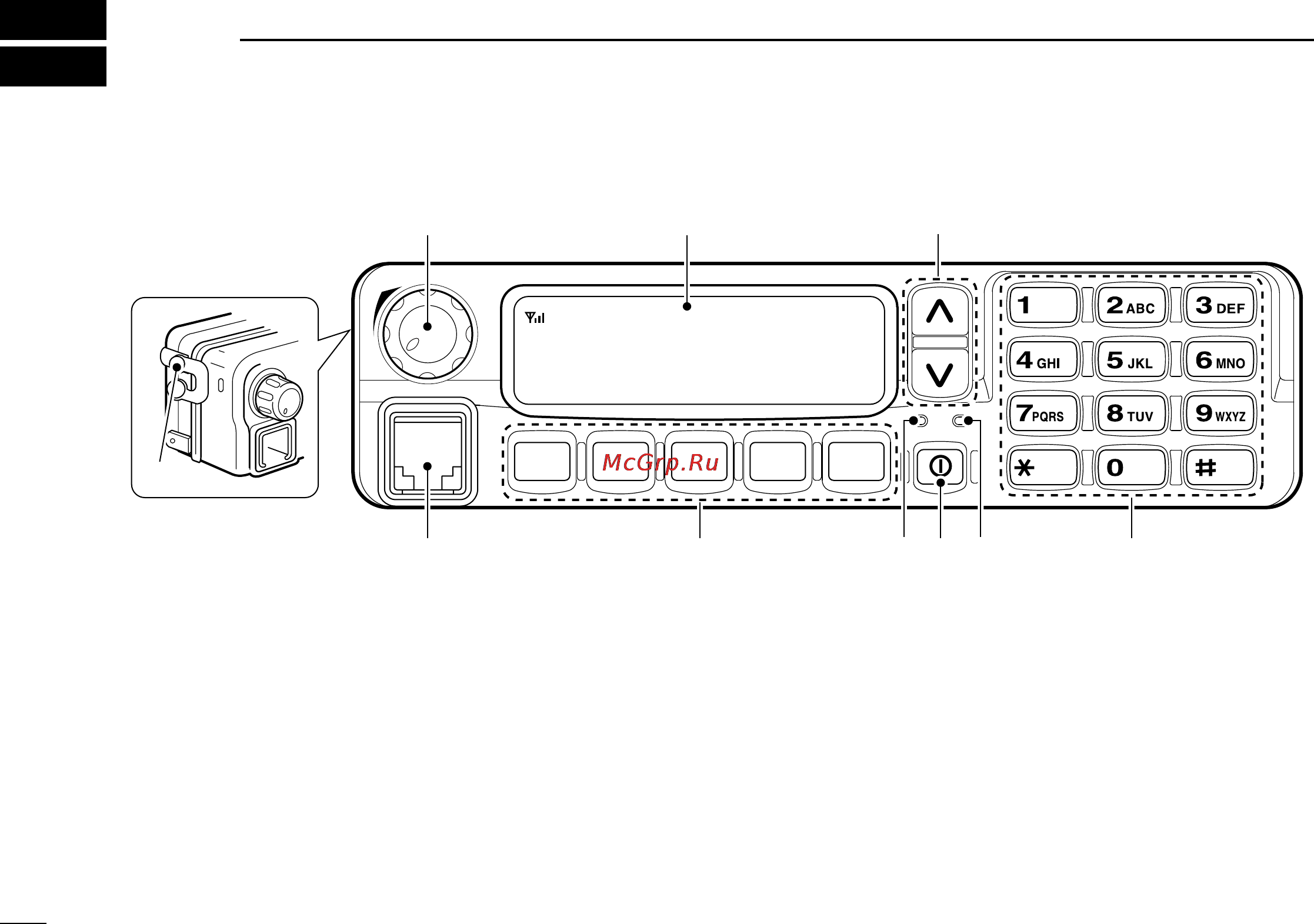

n Front panel— Controller

0 1 c h -01

I C - F 9 51 1 H T

y ru ti

q AF VOLUME CONTROL KNOB

Rotate the knob to adjust the audio output level.

• Minimum audio level is pre-programmed.

w FUNCTION DISPLAY (p. 3)

Displays a variety of information, such as an operating

channel number/name, DTMF numbers and audible con-

dition, etc.

e UP/DOWN KEYS

Push to select an operating channel, etc.

*The desired function can be assigned by your dealer. (p. 4)

r 10-KEYPAD

The keypad allows you to enter digits to:

• Select memory channels, tone channels and DTMF codes (when

in the DTMF code channel selection mode)

• Start up with a password

• Input the Individual ID code during P25 mode operation. (De-

pending on the pre-setting)

t BUSY INDICATOR

Lights green while receiving a signal, or when the squelch

is open.
