1 LCD DISPLAY

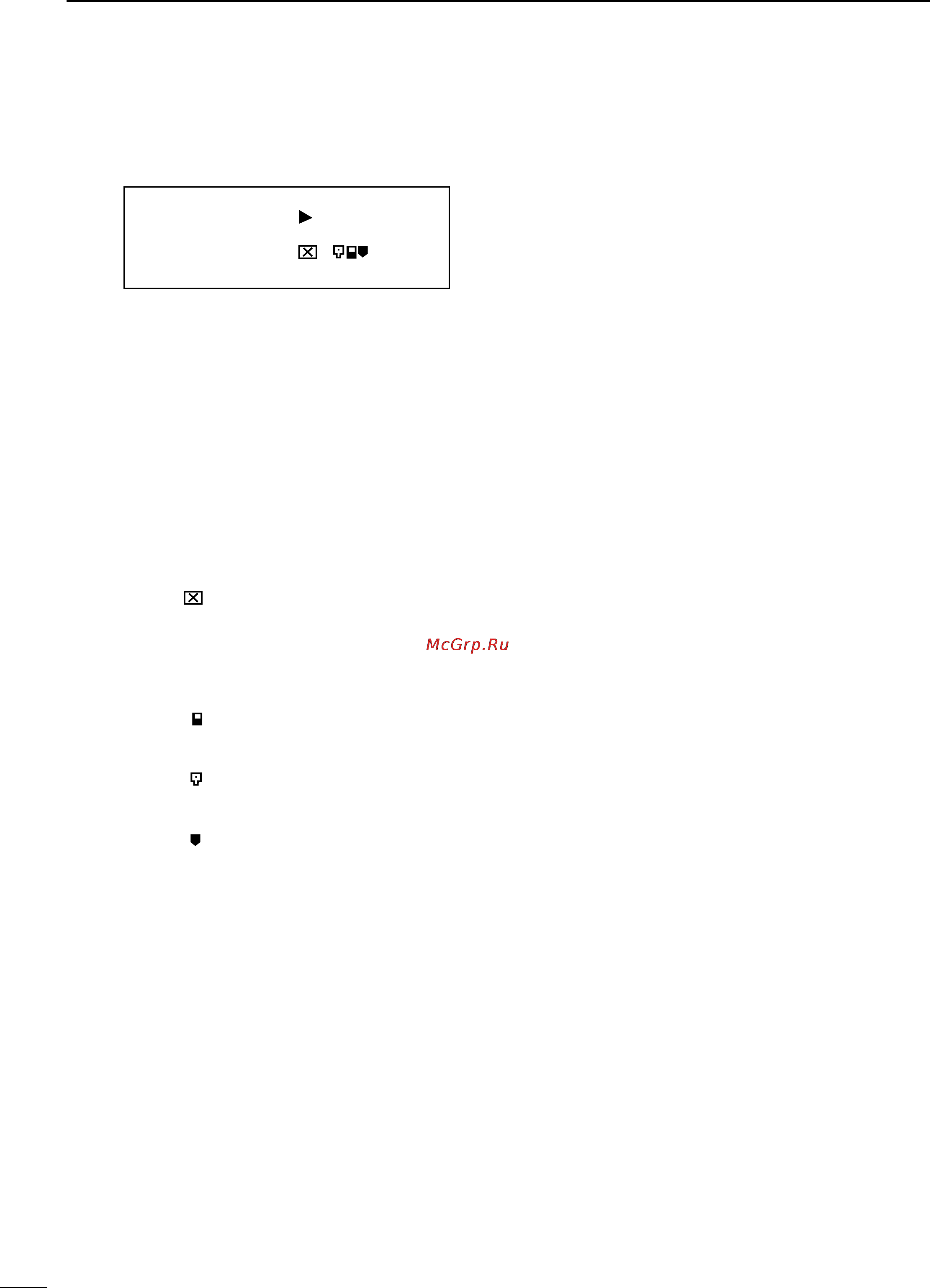

LCD display consists of 4 x 20 characters as shown.
Line 1: The incoming RSSI with 10 steps
Line 2: The output power levels with 10 steps
Line 3: The left 4 letters show channel numbers.
The middle 8 letters shows the channel name.
(If not programmed, it will be blank.)
The right 4 letters displays the status of the ra-
dio as described below.
a. RX mode:
M = Mix, both analog and digital can be
received
D = Only digital can be received
b. TX mode:
D = PTT digital transmission
A = PTT analog transmission
c. Monitor mode:
= Monitor off
S = Selective squelch
d. P25 squelch:
N = Normal squelch
S = Selective squelch
e. Low Voltage Icon:
= Low Voltage state (Icon flashes with
ALM LED)
f. Key lock mode:
= Key lock (Not displayed if in Low
Voltage alarm)
g. Shift mode:
= SHIFT KEY ICON (reverts to normal
within 2 seconds)
Line 4: The left 2 letters show GPC (GROUP CALL),
AC (ALL CALL), IC (INDIVIDUAL CALL). The
right 18 letters displays the GROUP NAME, IN-
DIVIDUAL NUMBERS, and so on.
2 LED DISPLAY
The IC-FR9010/FR9020 has 5 LED's from left to
right.
DIGI = The LED is ON when receiving a digital sig-
nal
REP = The LED is ON when in repeat mode
(The IC-FR9010/FR9020 can be programmed
for SIMPLEX - SEMIDUPLEX - DUPLEX -
REPEATER on a per channel basis.)
ALM = The LED flashes when an error on either TX
or RX occurs
TX = The LED is ON when in Transmit
BUSY = The LED is ON when receiving a signal
3 KEY CONTROLS
3.1 Key entry without [SHIFT] key
[0]–[9] = Channel numbers and individual call
address (target address)
[A] = P25 calls (Group Call, All Call, and
Individual Call)
[B] = The beginning and the end of indi-
vidual call number
[C] = TX Transmit mode (Clear or Secure),
only models with encryption
[D] = P25 mode (analog or digital TX)
[Q] = Cancel channel number, individual
number
[#] = Ending channel number, individual
number
[CH] = Channel number entry, depress CH,
then 0–9 for channels
[F] (Scan) = P25 Conventional Control Messages
(SBC)
[MON] = monitor ON or OFF
Rotary knob = Volume, Squelch, Back Light Dimmer
and Timer
3.2 Key entry following [SHIFT] key
[0] = P25 test mode start and finish
[1] = Backlight ON/OFF
[2] = TX power HIGH/LOW
[3] = Talkaround ON/OFF
[4] = Change
[5] = No function
[6] = No function
[7] = Indicates Analog channel data
[8] = Key lock ON/OFF
[9] = No function
[A] = Manual CWID send key
[B] = Programmed CWID Start/Stop key
[C] = Cryptogram Test
[D] = No function
[Q] = Indicating P25 data (while de-
pressed)
[#] = DTMF Entry
[CH] = Toggle Bar-Graph or TX RX Fre-
quencies
[F] (Scan) = SBC (Conventional Control Messag-
es) Log/Emergency Call
[MON] = P25 squelch normal or selective and
analog MONITOR modes
RX = = = = = = = = = =
TX = = = = = = = = = =
C001 TAC 2 MD N
GPC 500
