DRIVER INSTALLATION

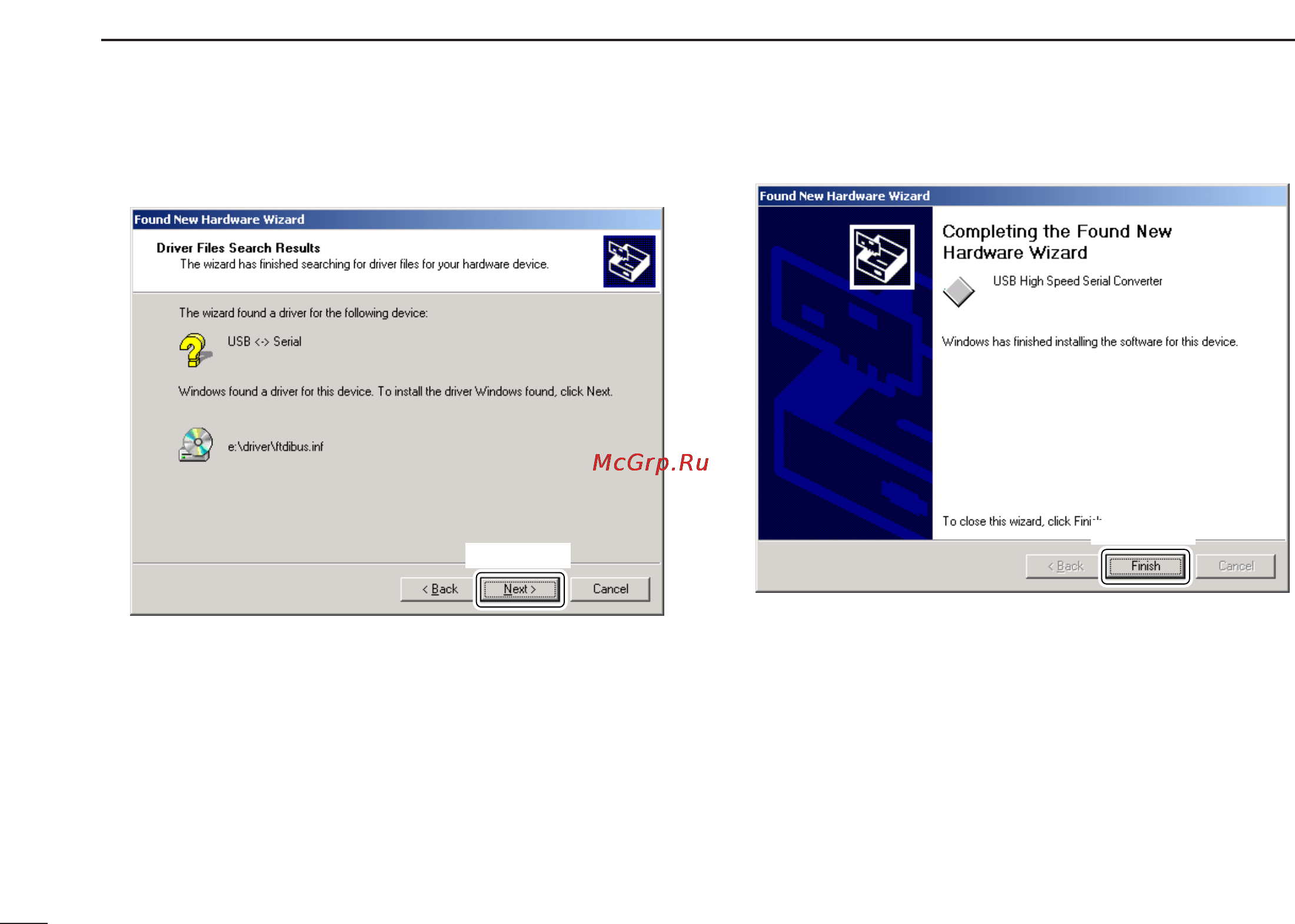

tWhen the driver is found, the following dialog is displayed.
Click [Next>] to start the installation.
yAfter the installation is completed, click [Finish].
