88
17
DRIVER INSTALLATION

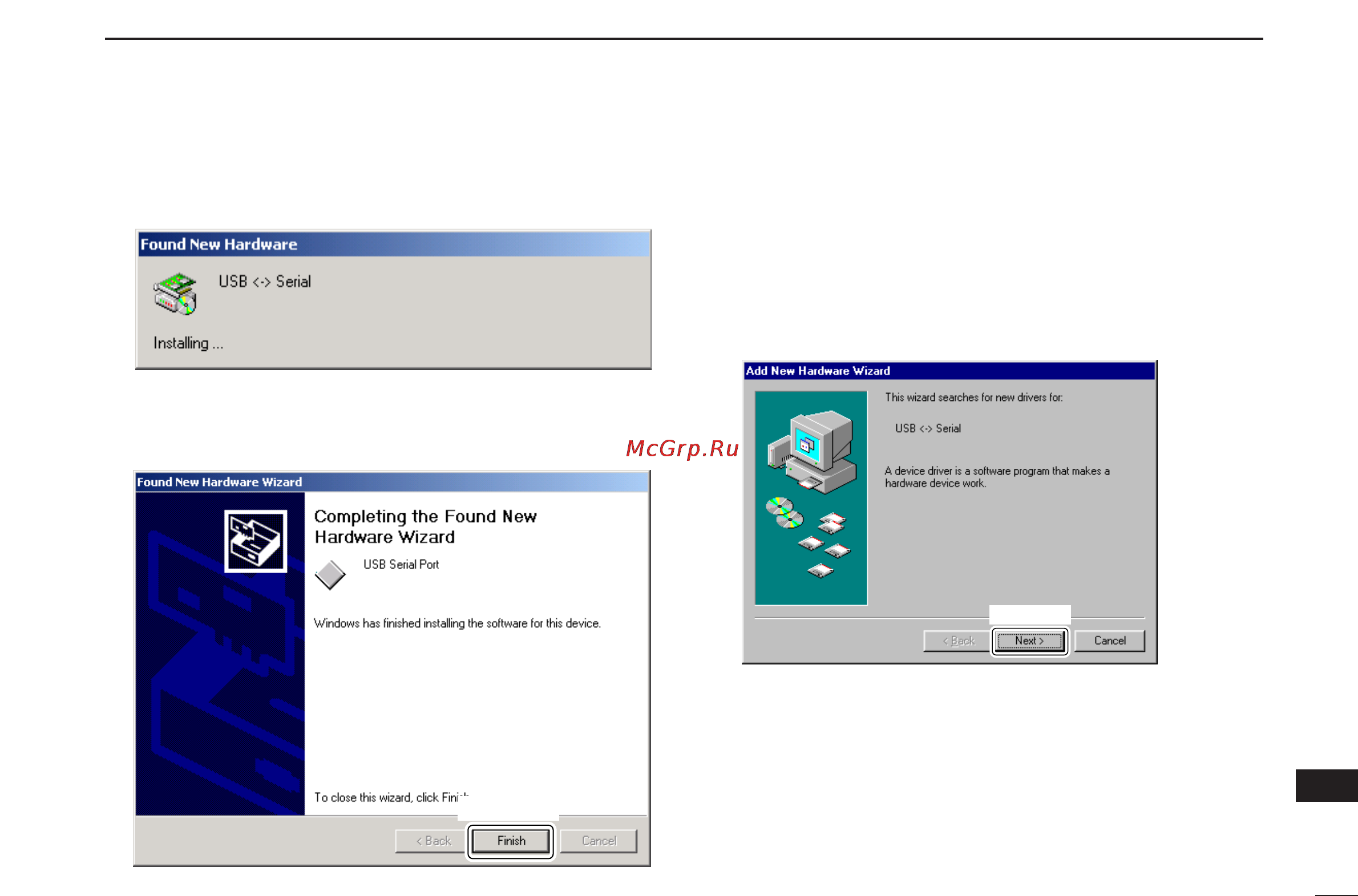

uThe “Found New Hardware Wizard,” will come up again to
install the USB serial port driver.
• “Found New Hardware” appears as below.
iRepeat step w to t.
oThe following screen appears when the installation is com-
pleted. Click [Finish] to close the screen.
• Rebooting the PC is recommended.
■ For Microsoft
®
Windows
®
98/98SE/Me
q Connect the IC-R20 to the desired USB port using with the
USB cable, OPC-1382.
w The “Add New Hardware Wizard” will come up as below.
Click [Next>].
Click
Click
17
