Icom IC-R20 [96/108] Driver installation
![Icom IC-R20 [96/108] Driver installation](/views2/1074317/page96/bg60.png)
83
17
DRIVER INSTALLATION

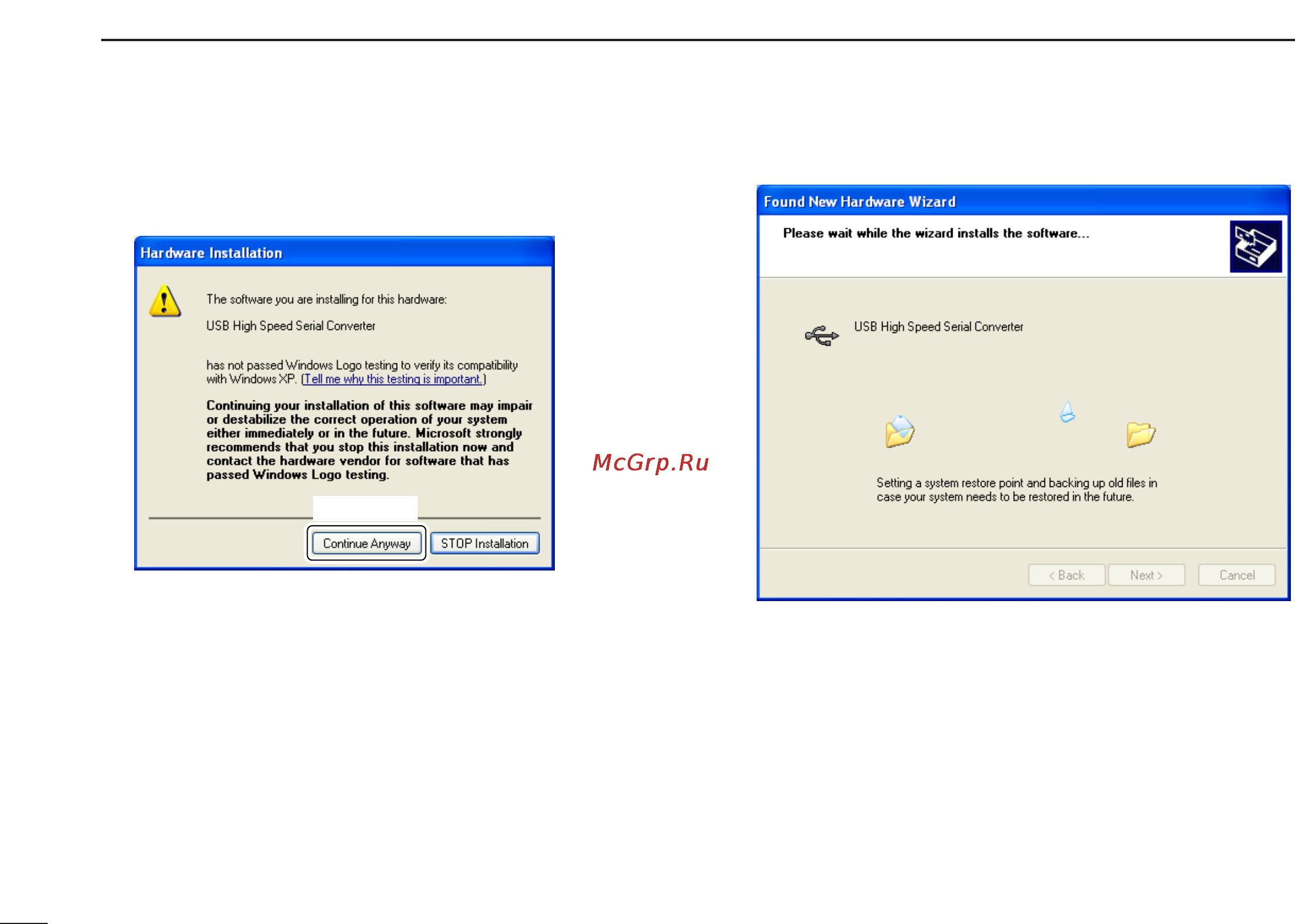

tAfter the driver is found the “Hardware Installation” dialog
box appears as below.
• Click [Continue Anyway] to start the installation.
yWindows starts installing the USB driver.
Click
