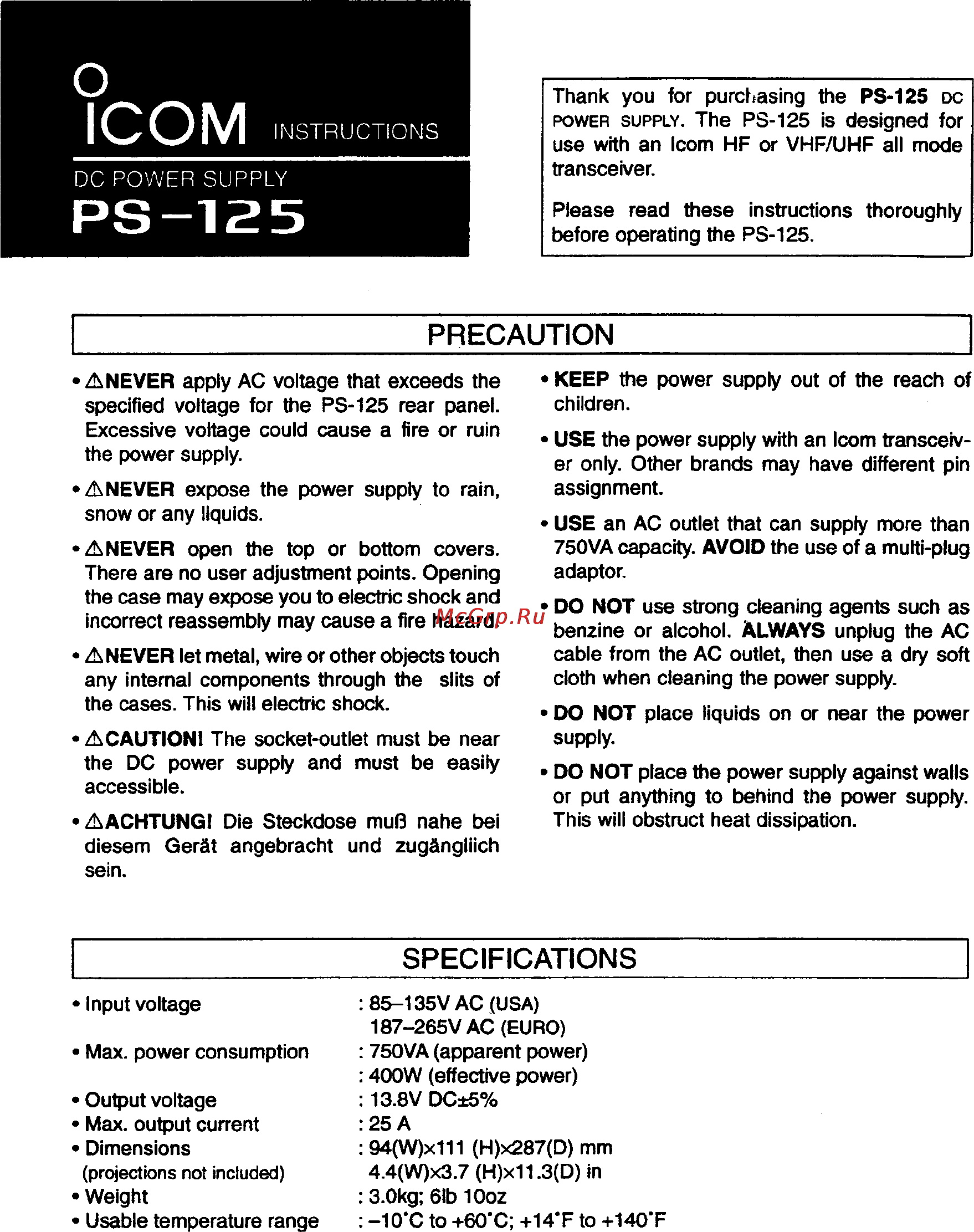

O ICOM Thank you for purchasing the PS 125 DC POWER SUPPLY The PS 125 is designed for use with an Icom HF or VHF UHF all mode transceiver INSTRUCTIONS DC POWER SUPPLY PS 125 Please read these instructions thoroughly before operating the PS 125 PRECAUTION ANEVER apply AC voltage that exceeds the specified voltage for the PS 125 rear panel Excessive voltage could cause a fire or ruin the power supply ANEVER expose the power supply to rain snow or any liquids A NEVER open the top or bottom covers There are no user adjustment points Opening the case may expose you to electric shock and incorrect reassembly may cause a fire hazard A NEVER let metal wire or other objects touch any internal components through the slits of the cases This will electric shock ACAUTION The socket outlet must be near the DC power supply and must be easily accessible AACHTUNGI Die Steckdose muß nahe bei diesem Gerät angebracht und zugängliich sein KEEP the power supply out of the reach of children USE the power supply with an Icom transceiv er only Other brands may have different pin assignment USE an AC outlet that can supply more than 750VA capacity AVOID the use of a multi plug adaptor DO NOT use strong cleaning agents such as benzine or alcohol ALWAYS unplug the AC cable from the AC outlet then use a dry soft cloth when cleaning the power supply DO NOT place liquids on or near the power supply DO NOT place the power supply against walls or put anything to behind the power supply This will obstruct heat dissipation SPECIFICATIONS Input voltage Max power consumption Output voltage Max output current Dimensions projections not included Weight Usable temperature range 85 135V AC USA 187 265V AC EURO 750VA apparent power 400W effective power 13 8V DC 5 25 A 94 W x111 H x287 D mm 4 4 W x3 7 H x11 3 D in 3 0kg 6lb 10oz 10 C to 60 C 14T to 140T
