OPTIONS

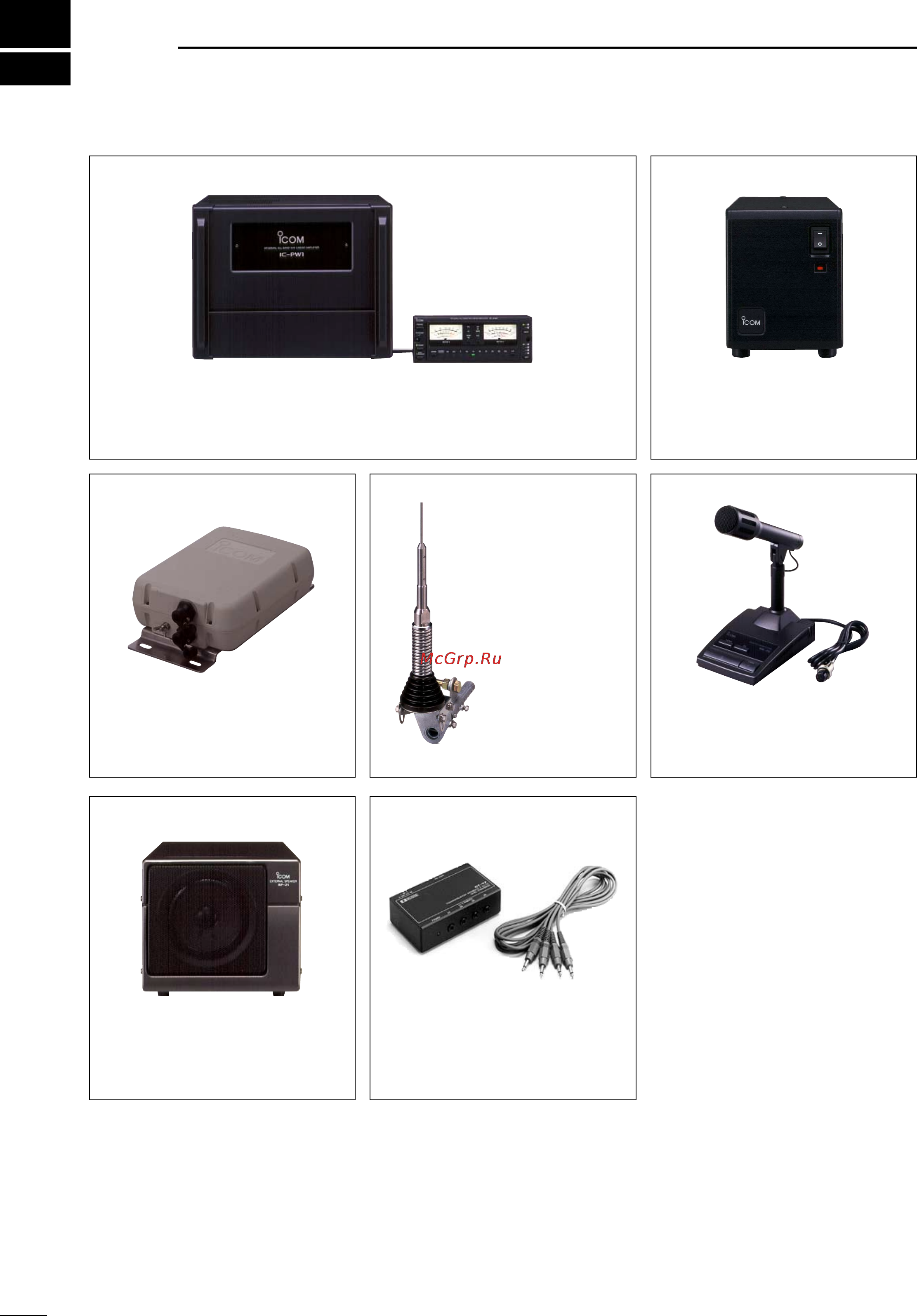

IC-PW1 HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER
Full-duty 1 kW linear amplifier including an automatic antenna tuner. Has
automatic tuning and band selection capability. Full break-in (QSK) oper-
ation is possible. The amplifier/power supply unit and the remote control
unit are separated.
AH-4 HF/50 MHz AUTOMATIC
ANTENNA TUNER
Specially designed to tune a long
wire antenna for portable or mobile
HF operation. The PTT tuner start
function provides simple operation.
• Input power rating: 120 W
AH-2b ANTENNA ELEMENT
A 2.5 m long an-
tenna element for
mobile operation
with the AH-4.
•Frequency
coverage:
7–54 MHz bands
with the AH-4
SM-20 DESKTOP MICROPHONE
Unidirectional, electret microphone
for base station operation. Includes
[UP]/[DOWN] switches and a low
cut function.
SP-21 EXTERNAL SPEAKER
Designed for base station opera-
tion.
• Input impedance: 8 Ω
• Max. input power: 5 W
CT-17 CI-V LEVEL CONVERTER
For remote transceiver control
using a personal computer. You
can change frequencies, operating
mode, memory channels, etc.
HM-36 HAND MICROPHONE
Hand microphone equipped with
[UP]/[DOWN] switches.
UT-102 VOICE SYNTHESIZER UNIT
Announces the receive frequency, mode
and S-meter level in a clear, electroni-
cally-generated voice, in English (or
Japanese).
SP-20 EXTERNAL SPEAKER
4 audio filters; headphone jack; can con-
nect to 2 transceivers.
• Input impedance: 8 Ω
• Max. input power: 5 W
PS-125 DC POWER SUPPLY
Light weight switching regulator
system power supply.
• Output voltage: 13.8 V DC
• Max. current drain: 25 A
•About DC power supply
The use of IC-756PROII (#23, #24, #25, #28, #30) in com-
bination with the DC power supply complies with European
Harmonised Standard regulations under the conditions
listed below.
Conditions
•In combination with PS-125
•
About IC-PW1
LINEAR AMPLIFIER
The IC-PW1
LINEAR AMPLIFIER
does not comply with Euro-
pean Harmonised Standard regulations. Please do not use
this equipment within European countries.
