Icom IC-F11 [8/28] Led indicator

‘‘

LED indicator

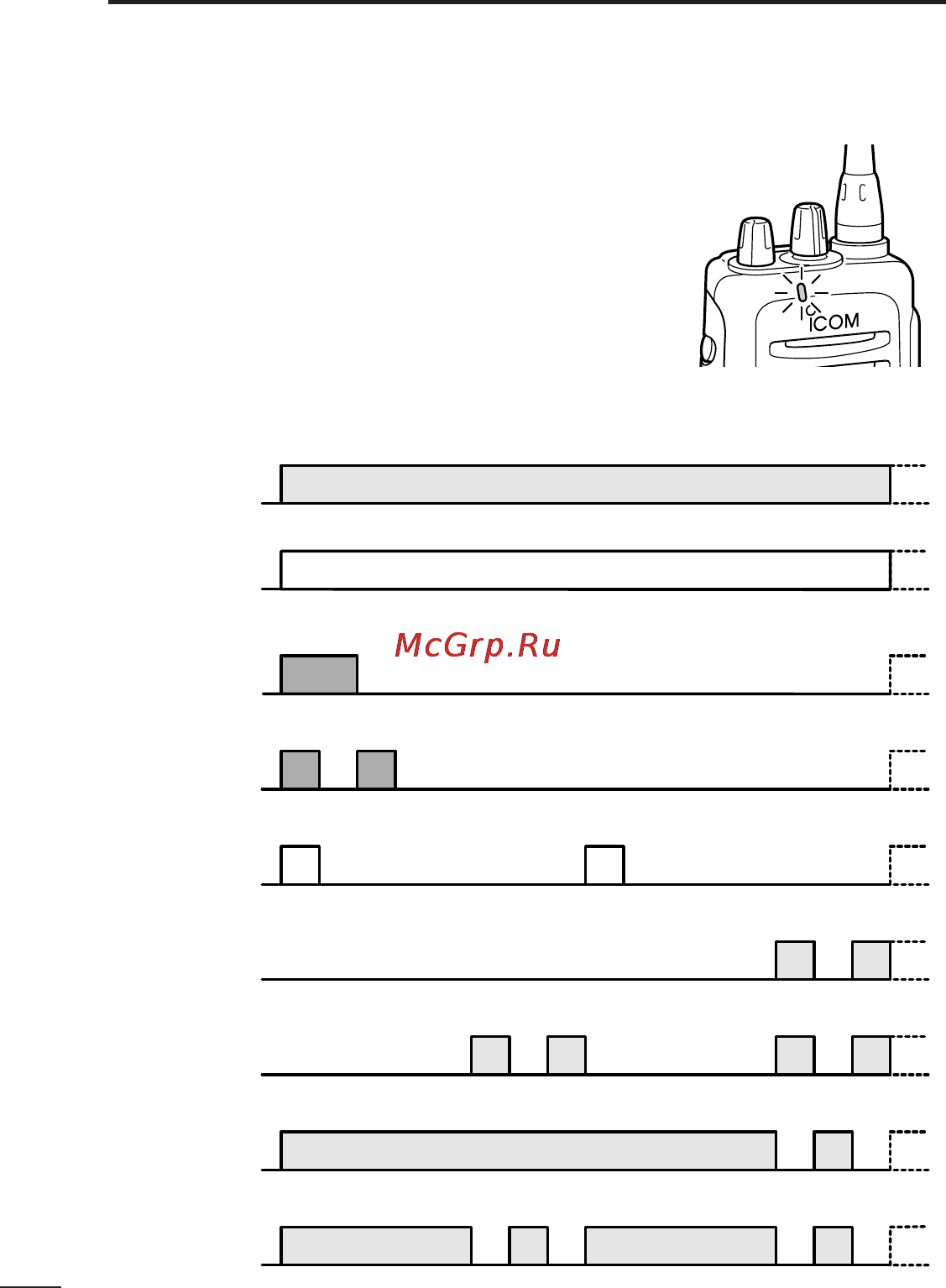

The TX/RX indicator LED indicates several

more information as follows;

(Ref.; R=Red, G=Green, O=Orange)

PANEL DESCRIPTION

R R R R

R R

O O

R R R R

R R

G G

• TX: Turns Red while transmitting a signal.

• RX: Turns Green while receiving a signal.

• Call LED (ON): When receiving a matched 2/5TONE.

• Call LED (Blink): When receiving a matched 2/5TONE.

• Fast/Slow scan: Blinks while Fast/Slow scan is activated.

•Low BATT1: You should charge the battery. (blinks slowly)

•Low BATT2: You must charge the battery. (blinks fast)

•TX low BATT1: Low BATT1 was detected during TX mode.

•TX low BATT2: Low BATT2 was detected during TX mode.
