BATT
CALL
LOW
WX
DUP
USA
INT
CAN
BUSYTX
SCRM
DUAL TRI
ALT SCAN
TAG
LOW BATTERY INDICATOR (p. 15)
Blinks when the battery voltage drops to
approx. 6 V or below. The attached battery
pack requires charging in this case.

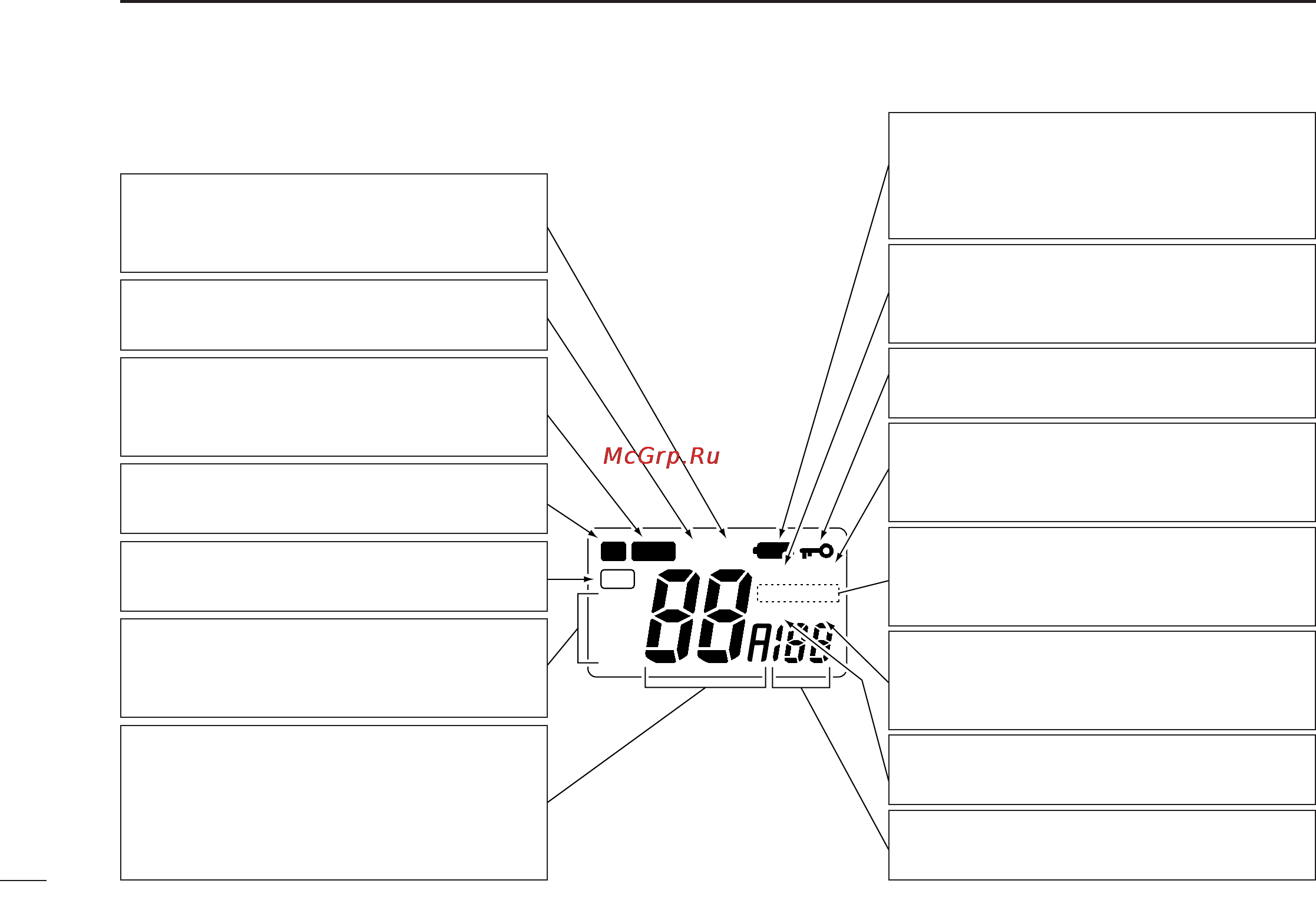

■Function display
1
PANEL DESCRIPTION
3
CALL CHANNEL INDICATOR (p. 5)
Appears when a call channel is selected.
TRANSMIT INDICATOR (p. 7)
Appears while transmitting.
LOCK INDICATOR (p. 6)
Appears while the lock function is activated.
WEATHER ALERT INDICATOR (p. 14)
Appears while the weather alert function is
activated; blinks when alert tone is received.
SCAN INDICATOR (pgs. 12, 14)
Blinks while scanning; appears when the
auto scan function is in standby.
DUALWATCH/TRI-WATCH INDICATORS
“DUAL” appears during dualwatch; “TRI” ap-
pears during tri-watch. (p. 10)
DUPLEX INDICATOR
Appears when a duplex channel is selected.
SCRAMBLER INDICATOR (p. 8)
Appears when the optional voice scrambler
is activated.
SCRAMBLE CODE READOUT (p. 8)
Shows the scrambler code while setting.
TAG CHANNEL INDICATOR (p. 12)
Appears when a tag channel is selected.
CHANNEL INDICATORS (pgs. 5, 6)
Indicate whether a U.S.A., international,
Canadian or weather channel is selected.
CHANNEL NUMBER READOUT
•Indicates the selected operating channel
number. (pgs. 5, 6)
•In SET mode, indicates the selected con-
dition. (pgs. 13, 14)
LOW POWER INDICATOR (p. 7)
•Appears when low power is selected.
•Blinks when extra low power is selected.
BUSY INDICATOR (p. 7)
Appears when receiving a signal or when
