4
2 PANEL DESCRIPTION
New2001

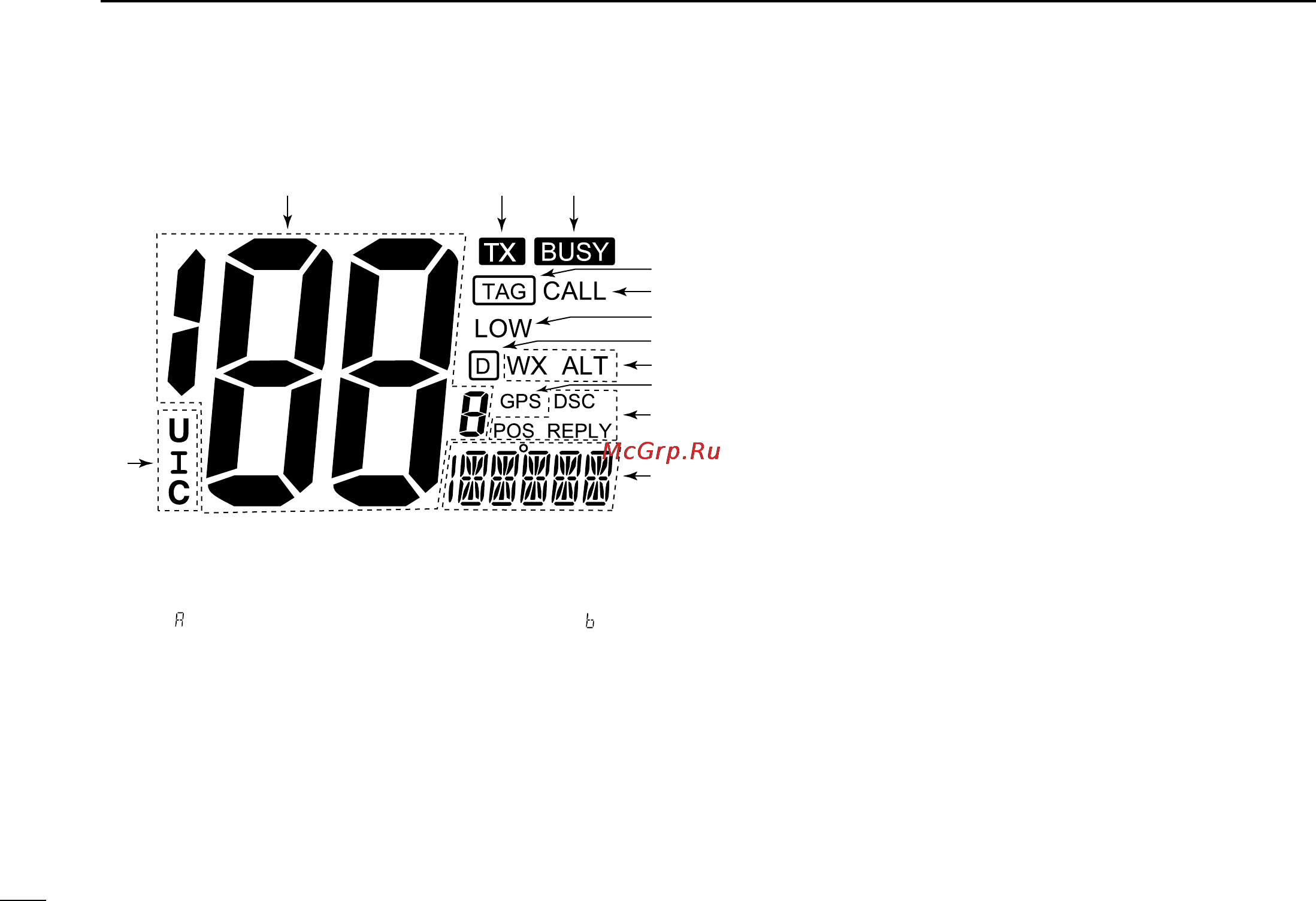

■ Function display
q CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
• “” appears when a simplex channel is selected. “” appears
when a receive only channel for a Canadian channel group
is selected. (p. 7)
➥ In Set mode, indicates the selected condition. (p. 30)
w TRANSMIT INDICATOR (p. 8)
Appears while transmitting.
e BUSY INDICATOR (p. 8)
Appears when receiving a signal or when the squelch
opens.
r TAG CHANNEL INDICATOR (p. 13)
Appears when a tag channel is selected.
t CALL CHANNEL INDICATOR (p. 6)
Appears when the call channel is selected.
y LOW POWER INDICATOR (p. 8)
Appears when low power is selected.
u DUPLEX INDICATOR (p. 7)
Appears when a duplex channel is selected.
i WEATHER CHANNEL INDICATOR (pgs. 7, 31)
➥ “WX” appears when a weather channel is selected.
➥ “WX ALT” appears when the Weather alert function is
in use; blinks when an alert tone is received.
o GPS INDICATOR
➥ Appears while valid position data is received.
➥ Blinks when invalid position data is received.
➥ Disappears when no GPS receiver is connected.
!0 DSC INDICATOR
Indicates the DSC status.
➥ “DSC” appears when a DSC call is received. (p. 25)
➥ “POS REPLY” appears when a Position Request Reply
call or Position Report Reply call is received. (p. 28)
ewq
!2
r
t
y
u
i
o
!0
!1
!IC-M402A_SA.qxd 03.11.11 2:51 PM Page 4 (1,1)
