PANEL DESCRIPTION
New2001
!1 CHANNEL COMMENT INDICATOR
➥ Channel comment appears if programmed. (p. 10)
➥ “” scrolls when the battery voltage drops to
approx. 10 V DC or below.
➥ “” blinks during Dualwatch; “” blinks during Tri-
watch. (p. 11)
!2 CHANNEL GROUP INDICATOR (p. 7)
Indicates whether a U.S.A. “U,” International “I” or Cana-
dian “C” channel is in use.

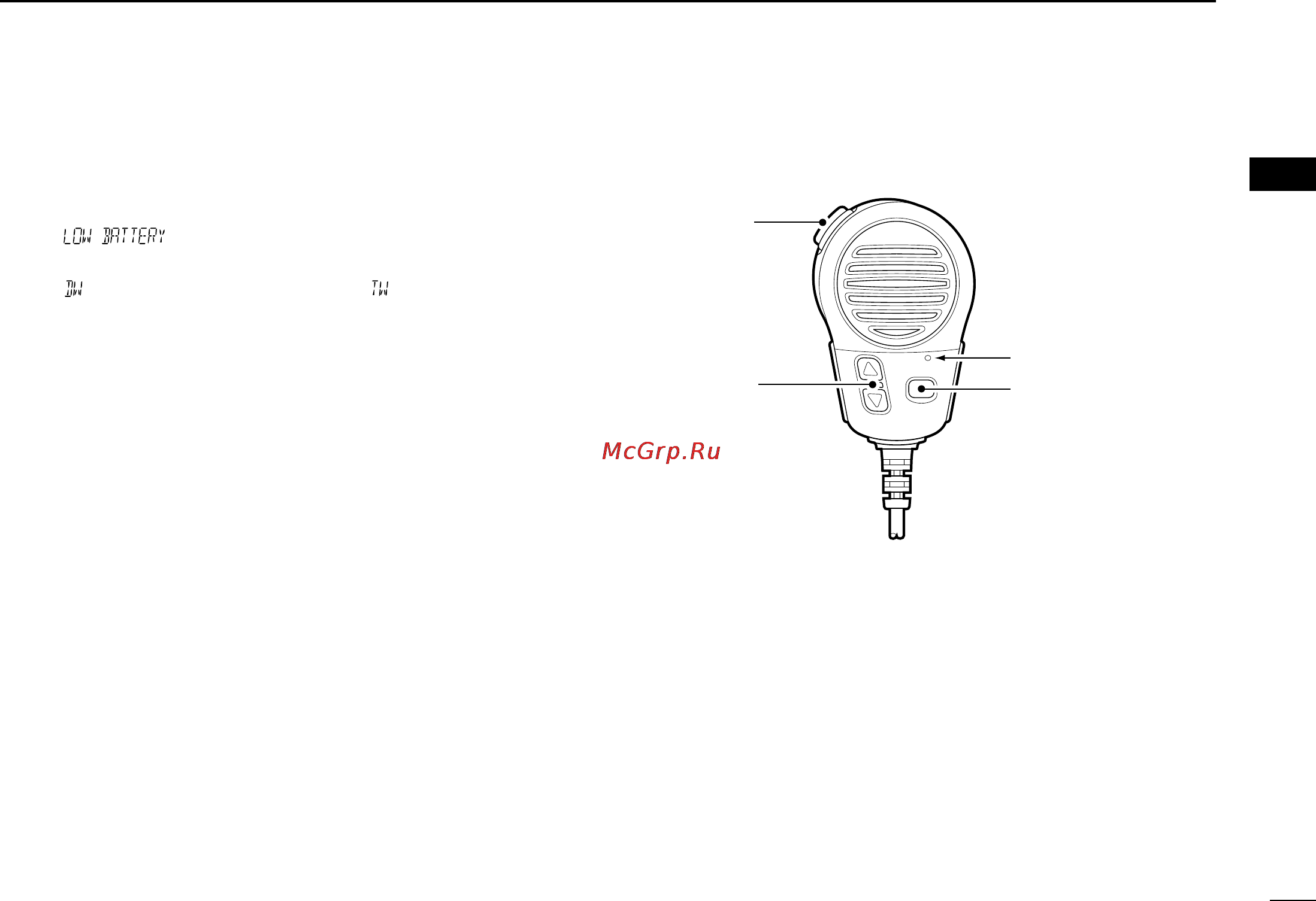

■ Microphone
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 8)
w CHANNEL UP/DOWN KEYS [
YY
]/[
ZZ
]
Push either key to change the operating memory channel,
Set mode settings, etc. (pgs. 6, 7, 30)
e TRANSMIT POWER KEY [HI/LO]
➥ Toggles power high and lower when pushed. (p. 8)
• Some channels are set to low power only.
➥ While pushing [HI/LO], turn power ON to toggle the mi-
crophone lock function ON and OFF. (p. 10)
Microphone
w
q
e
