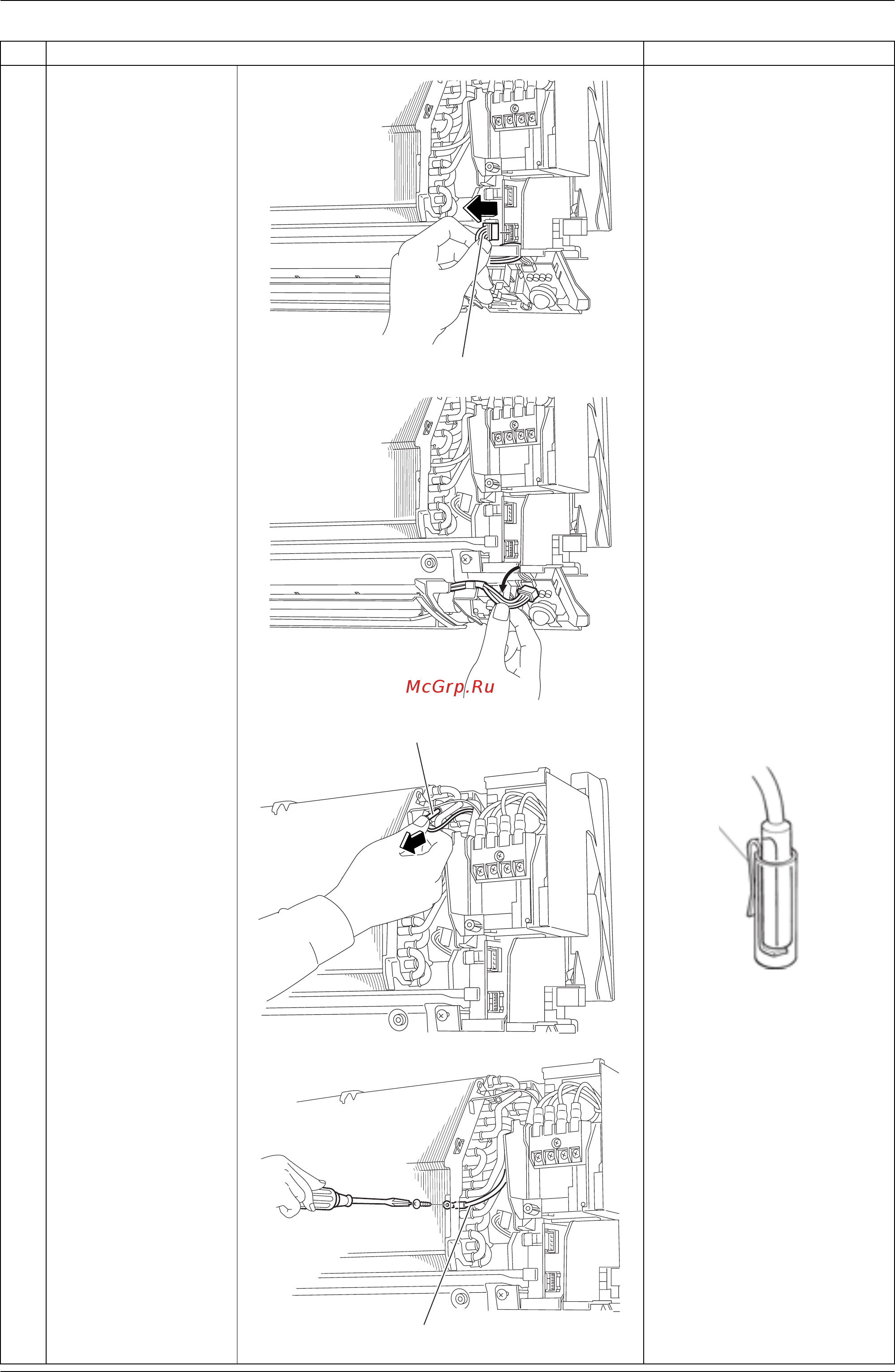

SiBE04-808_B Indoor Unit
Removal Procedure 168
5
Disconnect the
connector for swing
motors [S41].
6
Release the harness for
swing motors from the
hook.
7
Pull out the indoor heat
exchanger thermistor.
Be careful not to lose the
clip of the thermistor.
8
Remove the screw and
detach the earth wire.
Step Procedure Points
(R7935)
[S41]
(R7936)
(R7937)
Indoor heat exchanger thermistor
Clip
(R11268)
(R7938)
Earth wire
