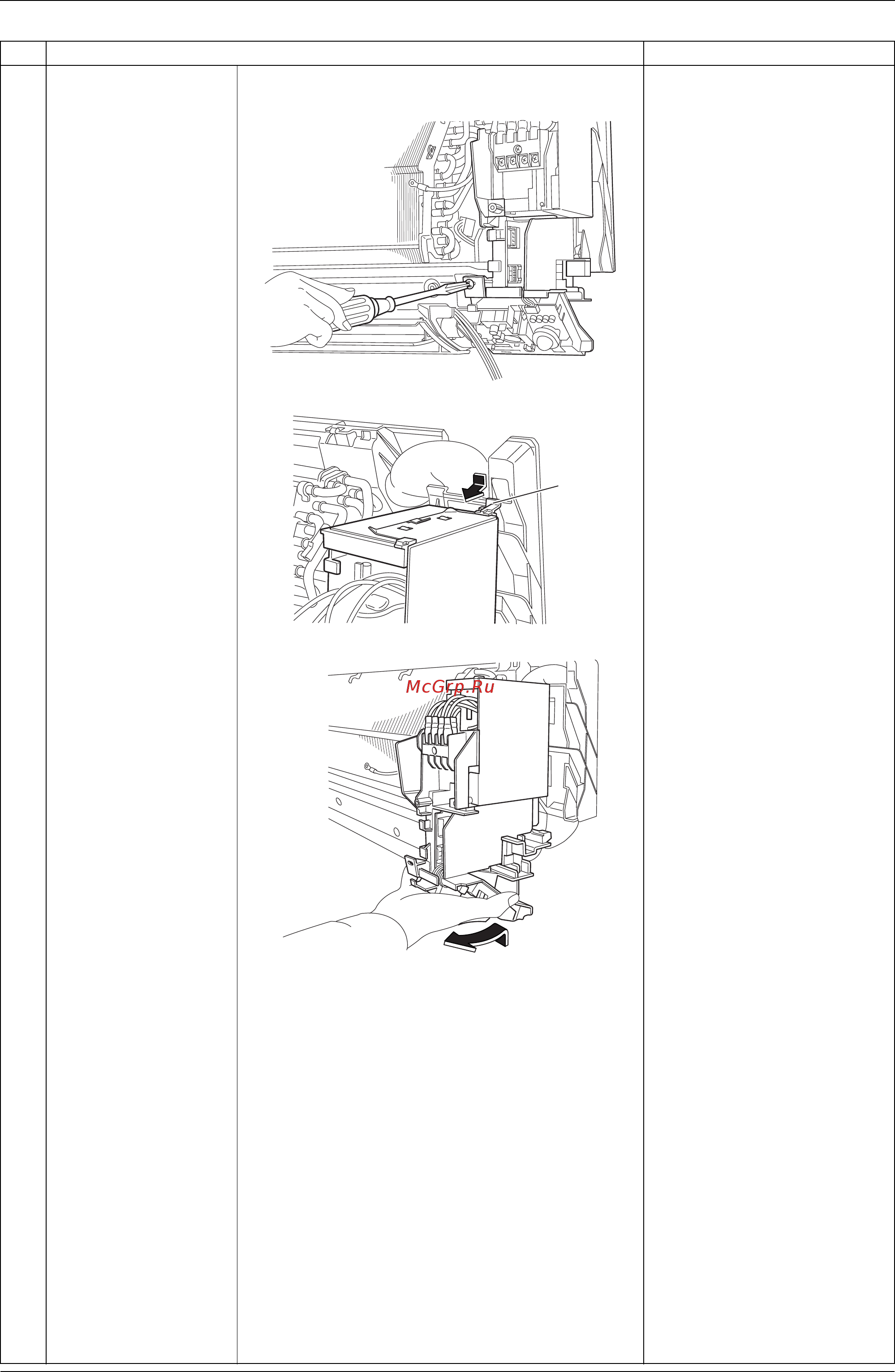

Indoor Unit SiBE04-808_B
169 Removal Procedure
9
Remove the screw of
the electrical box.
10
Unfasten the hook at
the upper far side by
pressing it from above
and pulling the
electrical box toward
yourself.
11
Lift up the electrical box
and pull it out.
There is a hook also at the
lower part of the back. When
mounting the electrical box,
make sure that it is securely
fastened.
Step Procedure Points
(R3939)
(R8081)
Hook
(R8082)
