SiBE04-808_B Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B
Removal Procedure 266
5

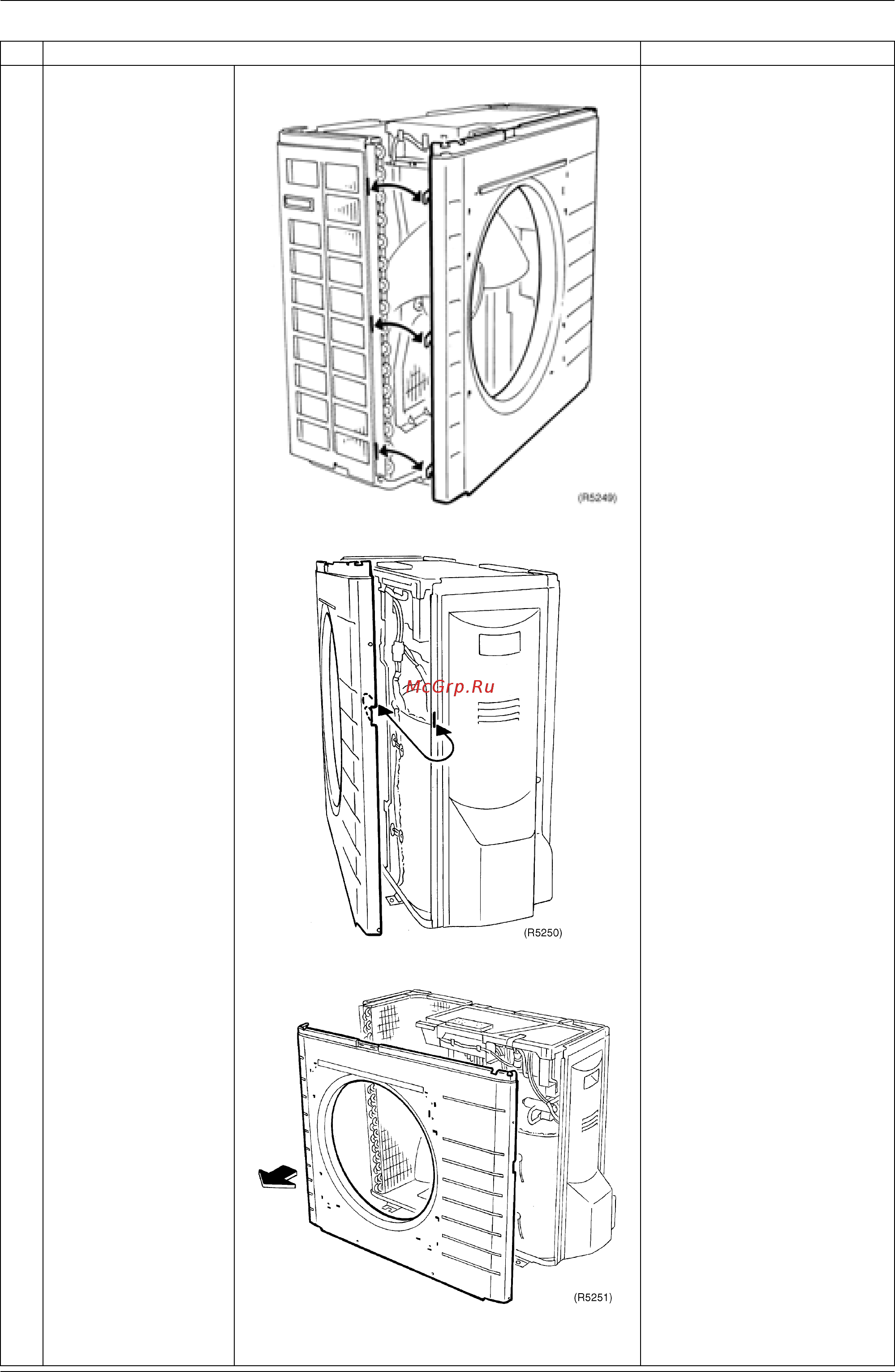

Unfasten the left side
hooks, and then the
right side hook.
Remove the front panel.
Lift the front panel while
pushing the left side panel
inwards.
Lift the front panel and
unfasten the right side hook.
When reassembling, fit the
right side of the front panel
first.
Step
Procedure Points
