Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B SiBE04-808_B
267 Removal Procedure

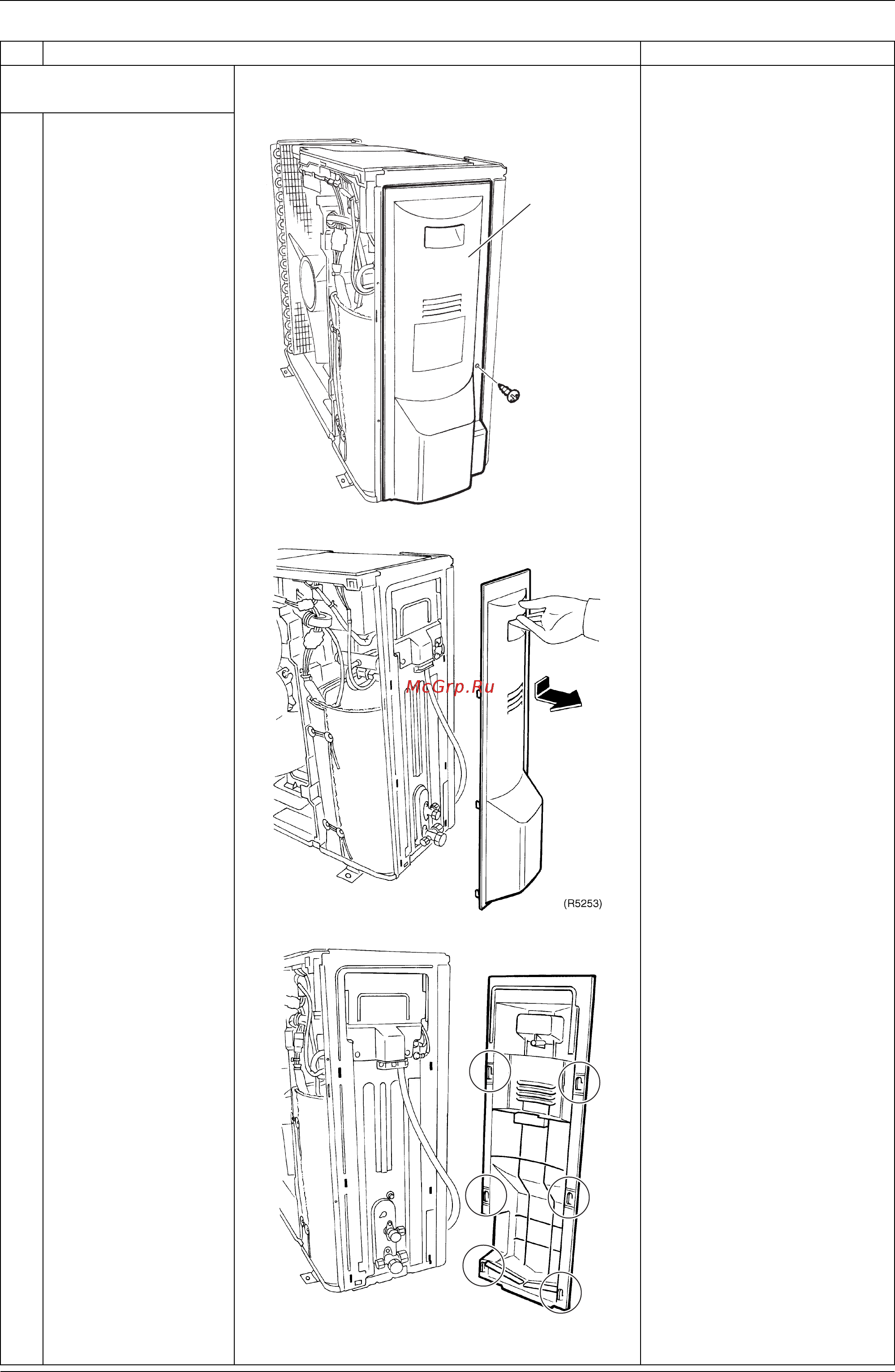

2. Remove the stop valve
cover.
1
Remove the screw of
the stop valve cover.
2
Pull down the stop
valve cover to unfasten
the hooks and remove
it.
The stop valve cover has 6
hooks.
Step
Procedure Points
Stop valve cover
(R5252)
(R5254)
