Chapter 6 Typical Application Guide

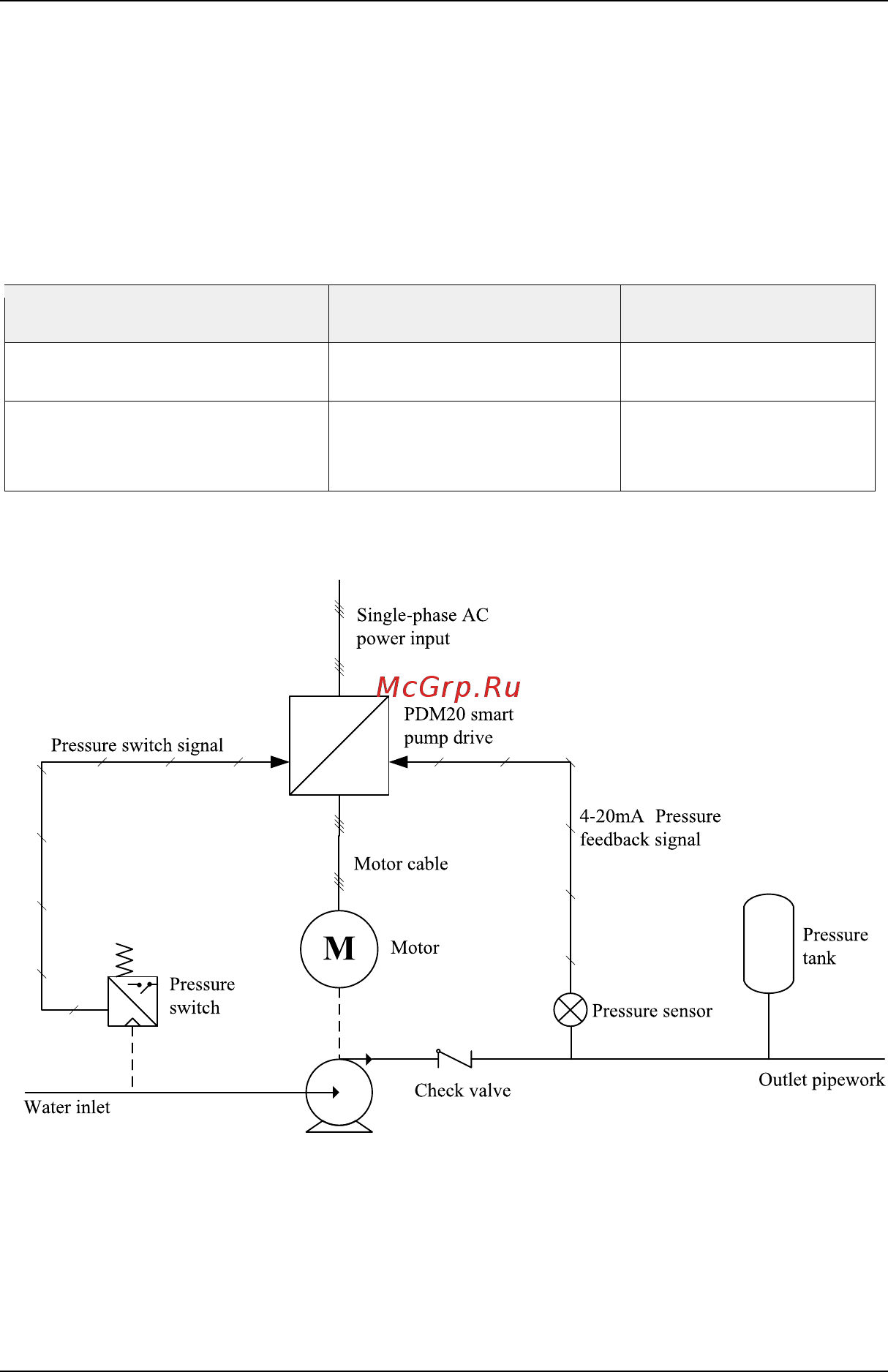

6.1 Single Pump Control

Condition Requirement Parameter setting

Pipe network pressure 3.0bar P0.00 = 3.0

Water shortage protection mode

Switching value sensor is

installed at inlet.

Input by external

terminals
