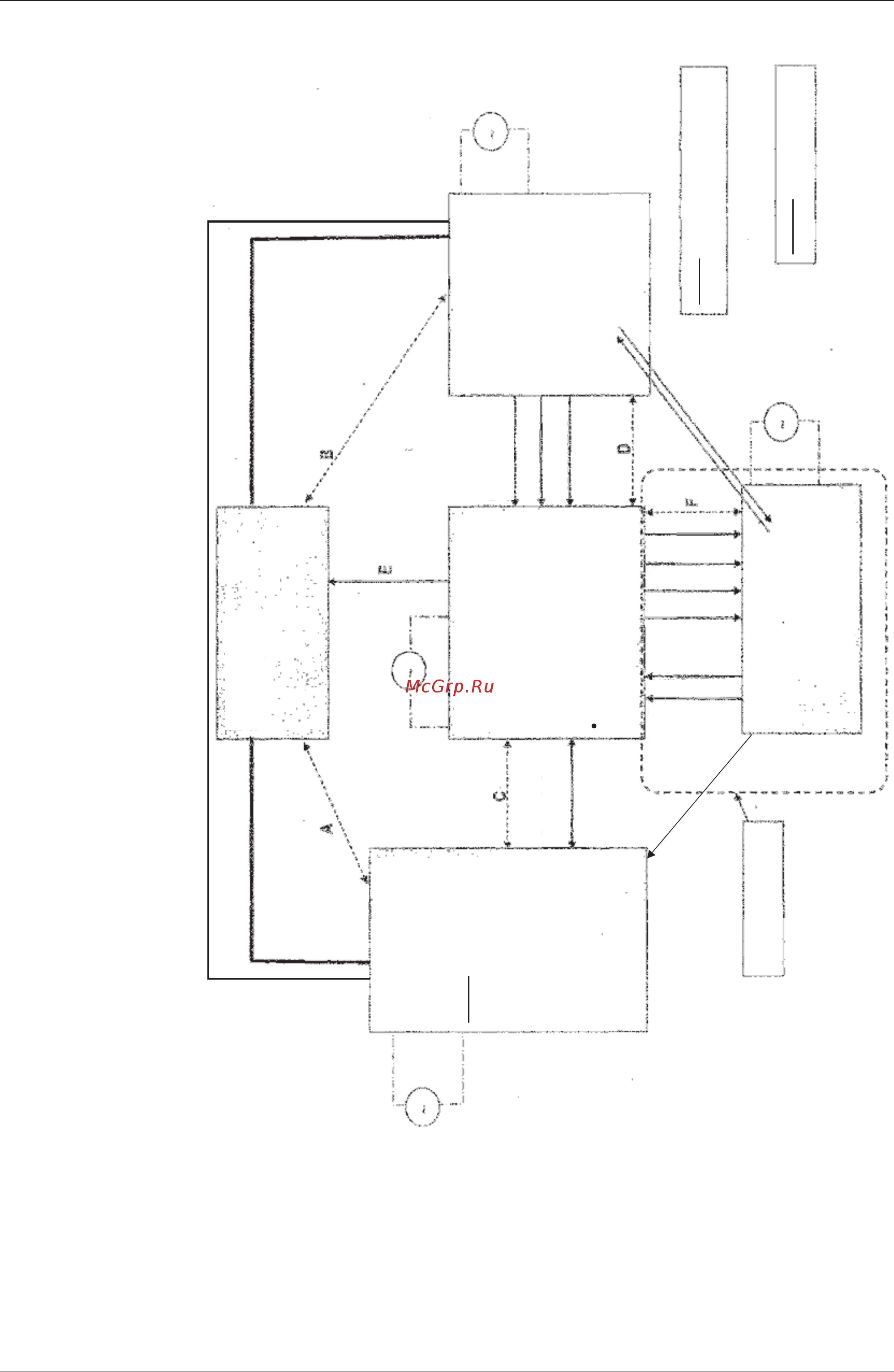

ESiEN09-06 Different Systems with their Control Boxes
Control Box EKEQ - CBV3 51
EXV - Kit
(Pair application only)
Liquid pipe
Liquid pipe
Gas pipe
Dedicated power supply
1~/230V/50Hz (4,5,6 Hp)
Attention:
ERQ
EKEQFCB / EKEQDCB
(Pair application only)
power supply
(1~/230V/50Hz)
H/E thermistor 1
H/E thermistor 2
Remocon connection
EKEQFCB => BRC1D = service tool
EKEQDCB => BRC1D = required option
AHU
Can be both on air or water control
Control
remarks:
(*1) Compressor running
distances:
DDC
ON/OFF
Fan status
Error Status
Defrost status
Unit ON/OFF (*1)
System A: ERQ - Unit + EXV-kit
Need software block to prevent
VRV AHUs to be connected on
ERX condensing unit.
Communication
2 lines (F1,F2)
* 2 types depending on
control type
Air Thermistor
(only needed for
control type Z)
(Third party Air handling unit)
power supply
(depend on AHU)
cool/heat
selection
(only in combination with
EKEQFCB & X-control)
0-10V DC
Capacity step
control
(Field supplied Digital controller)
DDC has temperature sensor for
target (e.g. air discharge temp.)
power supply (depend
on Controller)
A,B,C,D,E,F : see below
