■English 12
English
2.
Connecting to outdoor unit.

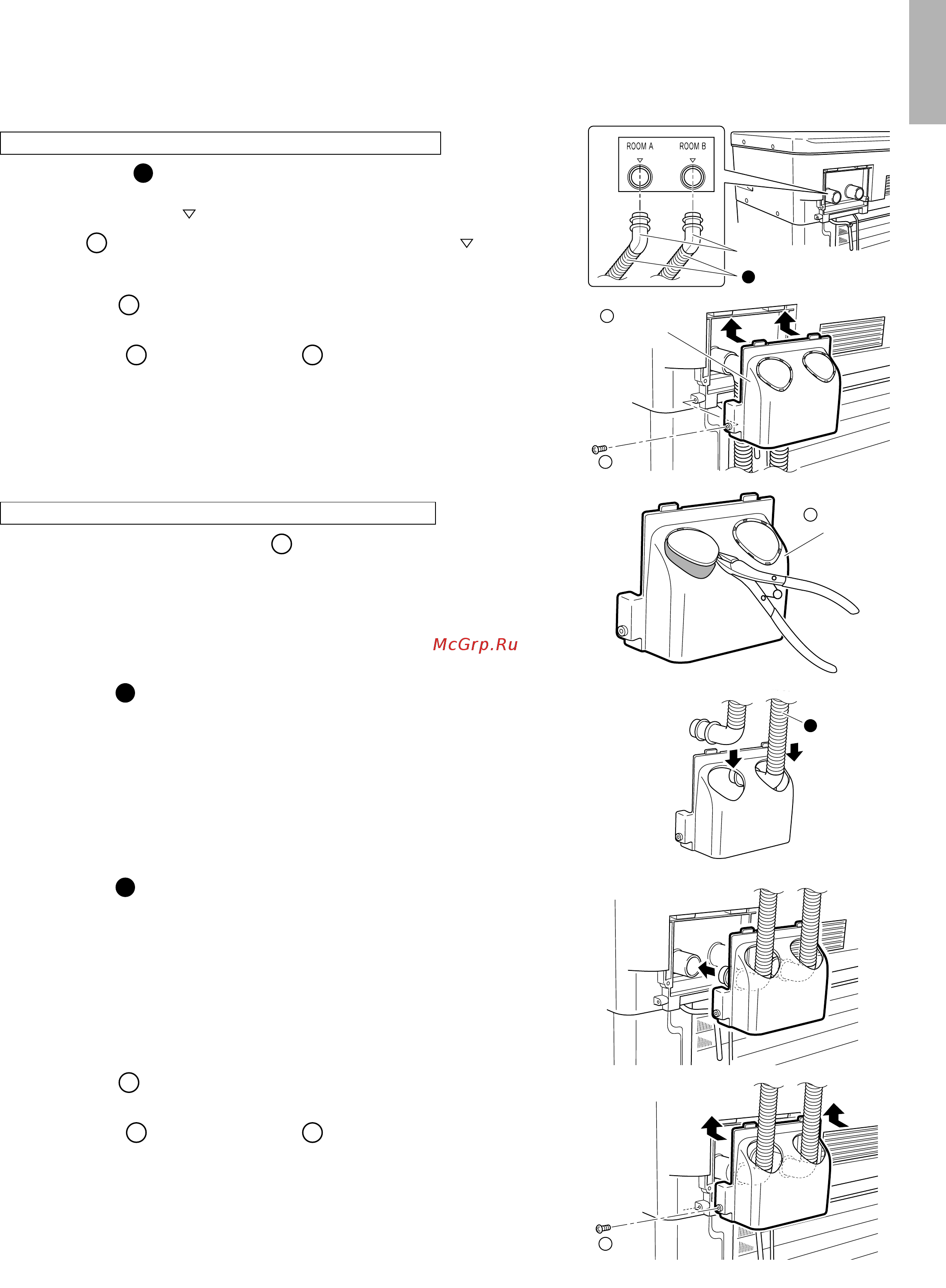

There are 2 ways to connect humidifying hoses to the outdoor unit.
1) Connect the humidifying hose (2m) to the humidifying duct on the back of
the outdoor unit. In that case, make sure that the centreline on the cuff of the
hose coincides with mark above the connecting port.
* The humidifying hose cover cannot be mounted unless mark
coincides with the centreline.
2) Mount the humidifying hose cover.
Insert the 4 tabs of the cover as shown in the figure.
3) Tighten the screw and secure the humidifying hose cover and outdoor
unit.
1) Cut out the knockout hole on the humidifying hose cover.
2) Insert the humidifying hose (2m) into the knockout hole.
3) Insert the humidifying hose into the humidifying duct on the back of the
outdoor unit.
4) Mount the humidifying hose cover.
Insert the 4 tabs of the cover as shown in the figure.
5) Tighten the screw and secure the humidifying hose cover and outdoor
unit.
Connecting through the path under the humidifying hoses cover
Connecting through the path above the humidifying hose cover
<Back side>
Humidifying hose (2m)D
Centreline
D
F
ScrewE
Humidifying
hose cover
F
F
E F
Humidifying
hose cover
F
F
Humidifying
hose (2m)
D
D
D
ScrewE
F
E F
