■English 6
English

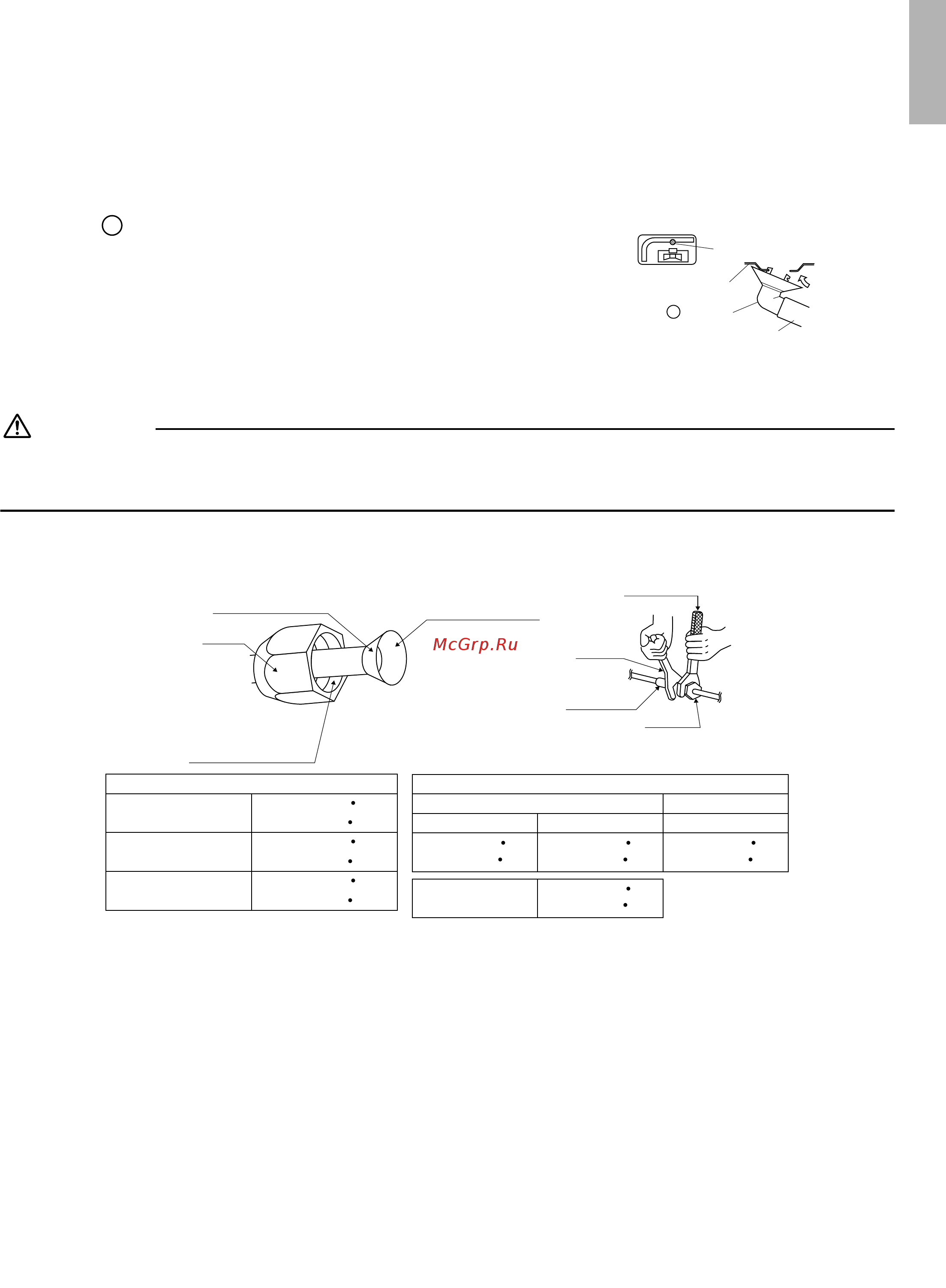

Refrigerant Piping Work
1.
Installing outdoor unit.
1) When installing the outdoor unit, refer to “Precautions for Selecting the Location” on page 2 and the “Outdoor Unit
Installation Drawings” on page 3.
2) If drain work is necessary, follow the procedures below.
2.
Drain work.
1) Use
drain plug for drainage.
2) If the drain port is covered by a mounting base or floor surface, place
additional foot bases of at least 30mm in height under the outdoor
unit’s feet.
3) In cold areas, do not use a drain hose with the outdoor unit.
(Otherwise, drain water may freeze, impairing heating performance.)
3.
Refrigerant piping.
CAUTION
1) Use the flare nut fixed to the main unit. (To prevent cracking of the flare nut by aged deterioration.)
2) To prevent gas leakage, apply refrigeration oil only to the inner surface of the flare. (Use refrigeration oil for R410A.)
3) Use torque wrenches when tightening the flare nuts to prevent damage to the flare nuts and gas leakage.
Align the centres of both flares and tighten the flare nuts 3 or 4 turns by hand. Then tighten them fully with the torque wrenches.
Drain-water hole
Bottom frame
Hose (available commercially,
inner dia. 16mm)
Drain plug
C
C
Flare nut tightening torque
Flare nut for φ6.4
14.2-17.2N
m
(144-175kgf
cm)
Flare nut for φ9.5
32.7-39.9N
m
(333-407kgf
cm)
Flare nut for φ12.7
49.5-60.3N
m
(505-615kgf
cm)
Valve cap tightening torque
Liquid side
3/8 inch 1/4 inch
21.6-27.4N
m
(220-280kgf
cm)
Gas side
1/2 inch
48.1-59.7N
m
(490-610kgf
cm)
21.6-27.4N
m
(220-280kgf
cm)
Service port cap
tightening torque
10.8-14.7N m
(110-150kgf
cm)
Torque wrench
Piping union
Flare nut
Do not apply refrigeration
oil to the outer surface.
Flare nut
Apply refrigeration oil to
the inner surface of the
flare.
Do not apply refrigeration
oil to the flare nut avoid
tightening with over torque.
Spanner
[Apply oil] [Tighten]
01_EN_3P234246-1.fm Page 6 Thursday, November 6, 2008 9:42 PM
