English 18
9-4 SIMULTANEOUS OPERATION SYSTEM INDIVIDUAL SETTING
It is easier if the optional remote controller is used when setting the slave unit.
• Perform the following procedure when setting the master and slave unit separately.
Procedure
(1) Change the SECOND CODE NO. to “02”, individual setting, so that the slave unit can be individually set.
( Refer to Table 8 )
(SECOND CODE NO. is factory set to “01”, for unified setting.)
Ta ble 8
(2) Perform field setting (Refer to 9-1 to 9-3) for the master unit.
(3) Turn off the main power supply switch after (2).
(4) Detach remote controller from the master unit and connect it to the slave unit.
(5) Turn on the main power supply switch again, and as in (1), change the SECOND CODE NO. to “02”, indi-
vidual setting.
(6) Perform field setting (Refer to 9-1 to 9-2) for the slave unit.
(7) Turn off the main power supply switch after (6).
(8) If there is more than one slave unit, repeat steps (4) to (7).
(9) Detach the remote controller from the slave unit after the setting, and reattach to the master unit. This is
the end of the setting procedure.
* You do not need to rewire the remote controller from the master unit if the optional remote controller for
slave unit is used.
(However, remove the wires attached to the remote controller terminal board of the master unit.)

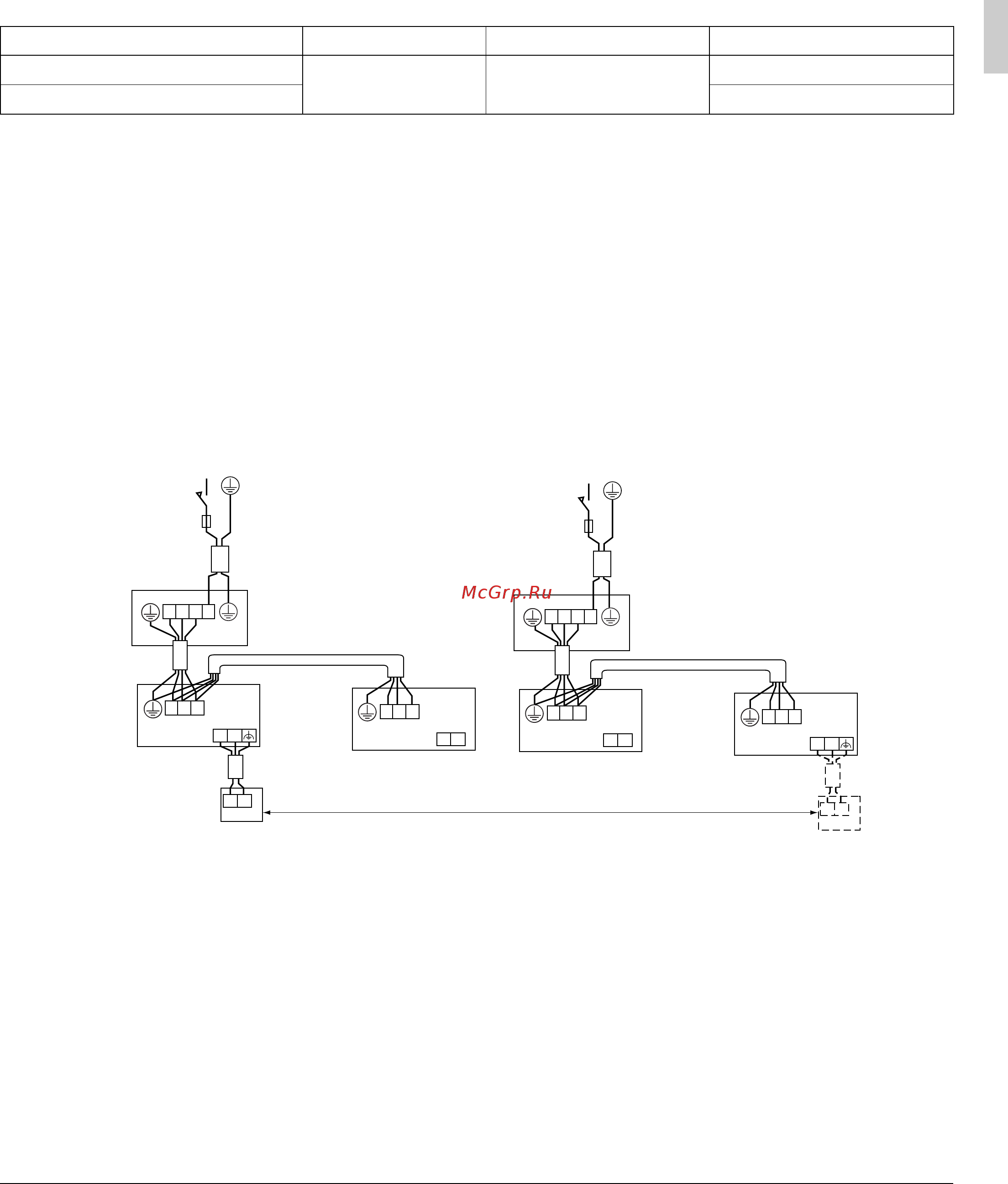

Setting Mode No. FIRST CODE NO. SECOND CODE NO.
Unified setting
11 (21) 1
01
Individual setting 02
P1 P2
123
P1 P2
123
P1 P2
123
123
123
123
P1 P2
P
1
P
2
P
1
P
2
Main power supply Main power supply
Main switch
FuseFuse
Outdoor unitOutdoor unit
Main switch
Indoor unit (Master)
Indoor unit (Master)
Indoor unit (Slave)
Indoor unit
(Slave)
Remote controller
Remote controller
( 1 ) ( 2 )
( 3 ) ( 7 )
( 4 )
( 8 )
( 5 ) ( 6 )
