Optional Accessories ED40-437
10 FDMG-AV1(S) Series
5.1.3 Digital Remote Controller (KRC47-2)

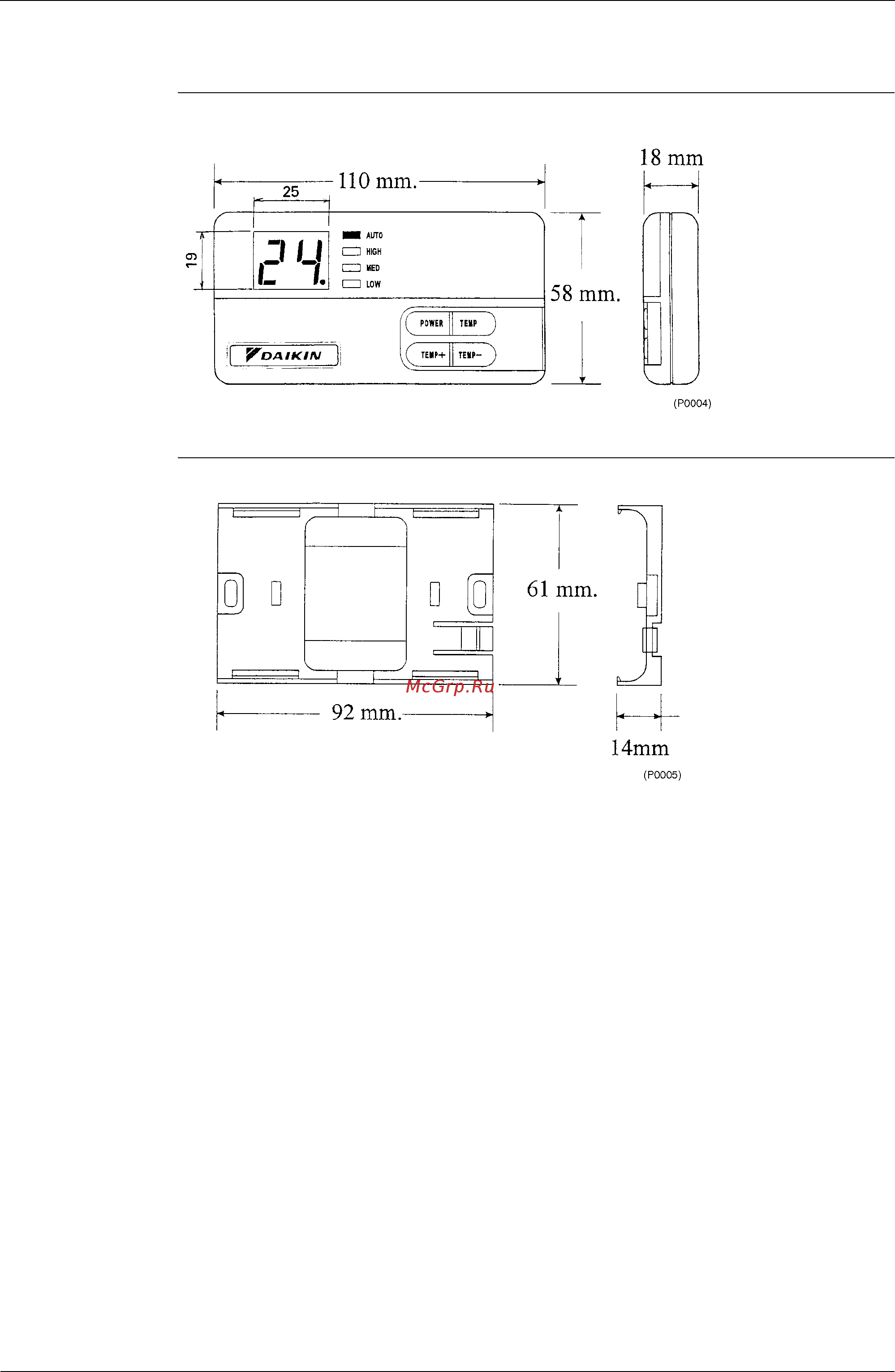

KRC47-2 contains the following parts, and they are packed in one carton.
1. Digital Remote Controller
2. Holder
