RB 302, RB 402 PLUS
English
17

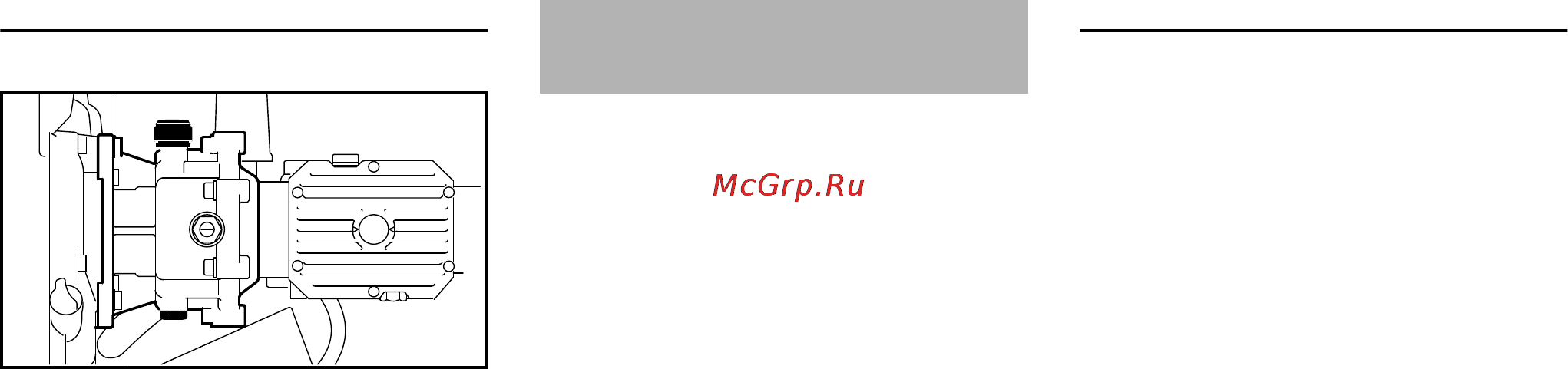

Gearbox (RB 402 PLUS)
First oil change after 50 hours of
operation, then every six months or
every 500 hours of operation.
N Unscrew oil filler cap (1)
N Place a suitable container (1 liter)
under the pump
N Unscrew the oil drain plug (3)
N Drain oil into container
N Refit and tighten oil drain plug
N Add oil (275 ml, SAE 15 W 40)
N Check the oil level
N Refit and tighten oil filler cap
Compliance with the specifications of
this Instruction Manual will avoid
excessive wear and damage to the
machine.
The machine must be used, maintained
and stored as carefully as described in
this Instruction Manual and the enclosed
engine instruction manual.
The user is responsible for all damage
caused by failure to comply with the
safety, operating and maintenance
instructions. This applies in particular
for:
– product modifications not
authorized by STIHL
– use of accessories that are not
approved for the machine,
unsuitable or of inferior quality
– use of the machine in a manner not
in keeping with the intended use
– Use of the machine in sporting
events or competitions
– Consequential damages due to
continued use of a machine with
defective components
– Damage due to freezing
– Damage due to improper power
supply voltage
– Damage due to poor water supply
(e. g., cross-section of the intake
hose too small)
Maintenance work
All of the tasks listed under
"Maintenance and Repairs" and in the
enclosed engine instruction manual
must be carried out periodically. If the
user does not carry out these
maintenance tasks him- or herself, they
should be delegated to a dealer.
STIHL recommends that maintenance
and repair work be carried out only by
authorized STIHL dealers. STIHL
dealers receive regular training and are
supplied with technical information.
If these tasks are not performed or are
performed improperly, this may result in
damage for which the user is
responsible. Among other things, this
includes:
– Damage to machine components
due to delayed or insufficient
performance of maintenance
– Corrosion damage and other
consequential damages due to
improper storage
– Damage to the machine as a result
of using replacement parts of
inferior quality
3
1
677BA011 KN
Minimize Wear and Avoid
Damage
