Korting OGG540CFX [25/40] Electrical connection

INSTALLATION LOCATION

In order for the gas oven to work properly, it is important that the air necessary for burning the gas, flows into

the area naturally.

The installer must follow the safety norms of the country of installation.

The flow of air into the area must come directly through the openings made in the external walls.

These openings must have a free passage of at least 100 cm² (one or more openings can be made).

Products of combustion must be exhausted through a hood connected to a fume flue or directly outside.

If it is not possible to install the hood, it is necessary to use an electric ventilation fan installed in the outside

wall or window of the area so long as there is an opening for the air to enter the area in conformity with the

current laws.

This electric ventilation fan must have a flow capacity sufficient to guarantee that 3 to 5 times the volume of

air in the room is exchanged every hour.

ELECTRICAL CONNECTION

Ovens equipped with tri-polar supply cables are constructed to function with alternating current, and with the

voltage and frequency indicated on the product plate.

Make sure the voltage matches the one indicated on the product plate.

Assembly of the power cable

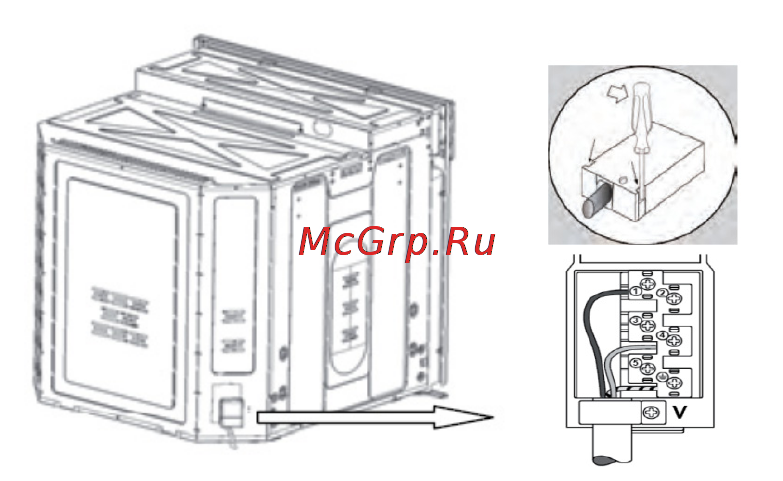

Figure 2.

1. Open the terminal board by placing a screwdriver under the side flaps on the cover, pull and then open the

cover (see figure 2).

2. Install the power supply cable, unscrew the screws on the cable grip and the three screws on contacts L-

N- ╧ and then attach the wires under the screw heads respecting the colours:

BLUE - NEUTRAL (N)

BROWN - LIVE (L)

YELLOW-GREEN - EARTH ( ╧ )

3. Attach the cable to the appropriate cable holder.

4. Close the terminal board cover.

Attention: earth connection is required by law.

Connecting the power supply cable to the mains

For direct connection to the mains supply, it is necessary to use a device that ensures that the mains power

is disconnected, with a distance between the contacts that allows complete disconnection in compliance with

surge category III and installation regulations.

Assemble a standard plug for the capacity indicated on the product plate.

The power supply cable must be positioned in such a way that it does not exceed the room temperature by

50°C at any point.

The installer is responsible for correct electricity connection and adherence to safety regulations.
