10 | Maintenance and service
Installer and user reference guide
29
FXSN50~112A2VEB
CO₂ Conveni-Pack: indoor unit
4P602817-1A – 2020.05
10.2 Cleaning the air filter and air outlet
10.2.1 To clean the air outlet
WARNING
Do NOT let the indoor unit get wet. Possible consequence: Electric shock or fire.
NOTICE
▪ Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide.
Possible consequence: Discoloration and deformation.
▪ Do NOT use water or air of 50°C or higher. Possible consequence: Discoloration
and deformation.
Clean with a soft cloth. If it is difficult to remove stains, use water or a neutral
detergent.
10.2.2 To clean the air filter
When to clean the air filter:
▪ Rule of thumb: Clean every 6 months. If the air in the room is extremely
contaminated, increase the cleaning frequency.
▪ Depending on the settings, the user interface can display the TIME TO CLEAN AIR
FILTER notification. Clean the air filter when the notification is displayed.
▪ If the dirt becomes impossible to clean, change the air filter (= optional
equipment).

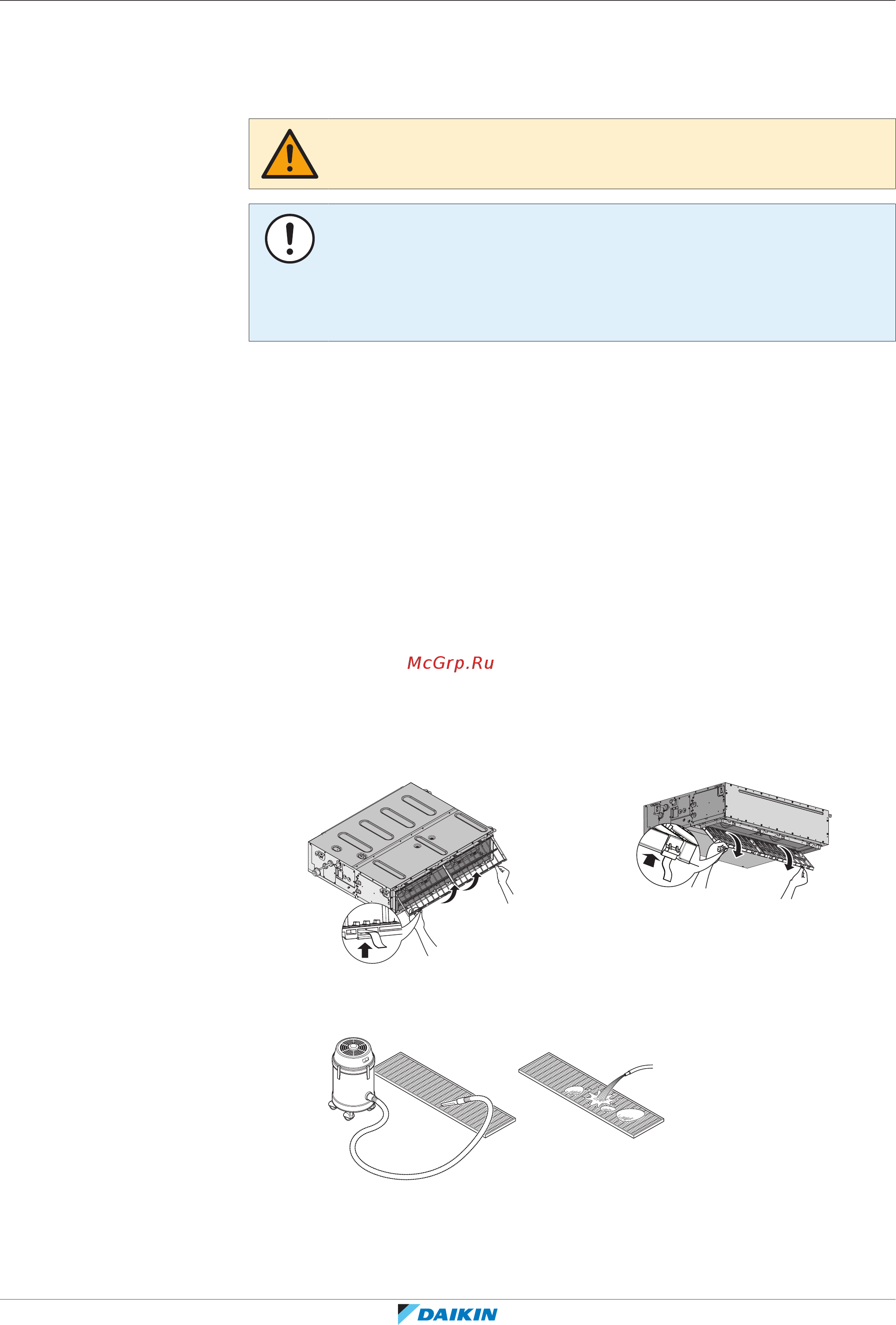

How to clean the air filter:
1 Remove the air filters by pulling their cloth upward (in case of rear suction) or
backward (in case of bottom suction).
rear suction bottom suction
2 Clean the air filter. Use a vacuum cleaner or wash with water. If the air filter is
very dirty, use a soft brush and neutral detergent.
3 Dry the air filter in the shadow.
4 Re-attach the air filter. Align the 2 hanger brackets and push the 2 clips in
their place and pull the cloth if necessary.
