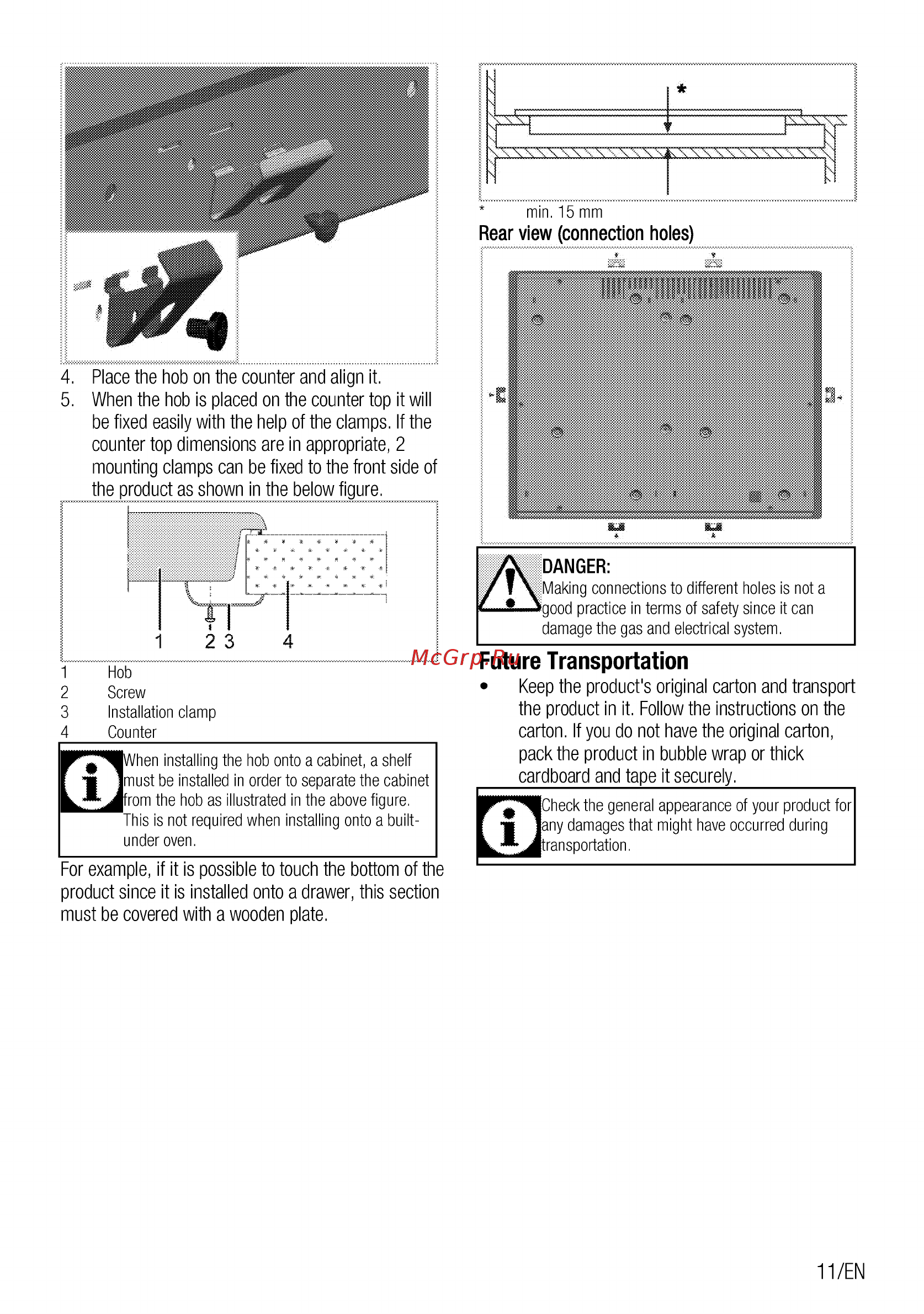

min 15 mm Rear view connection holes 4 Place the hob on the counter and align it 5 When the hob is placed on the counter top it will be fixed easily with the help of the clamps If the counter top dimensions are in appropriate 2 mounting clamps can be fixed to the front side of the product as shown in the below figure B 1 2 3 4 Hob Screw Installation clamp Counter l WVhen installing the hob onto a cabinet a shelf w Imust be installed in order to separate the cabinet from the hob as illustrated in the above figure This is not required when installing onto a builtunder oven DANGER Making connections to different holes is not a good practice in terms of safety since it can damage the gas and electrical system Future Transportation Keep the product s original carton and transport the product in it Follow the instructions on the carton If you do not have the original carton pack the product in bubble wrap or thick cardboard and tape it securely Check the general appearance of your product for w lany damages that might have occurred during transportation For example if it is possible to touch the bottom of the product since it is installed onto a drawer this section must be covered with a wooden plate 11ÆN
