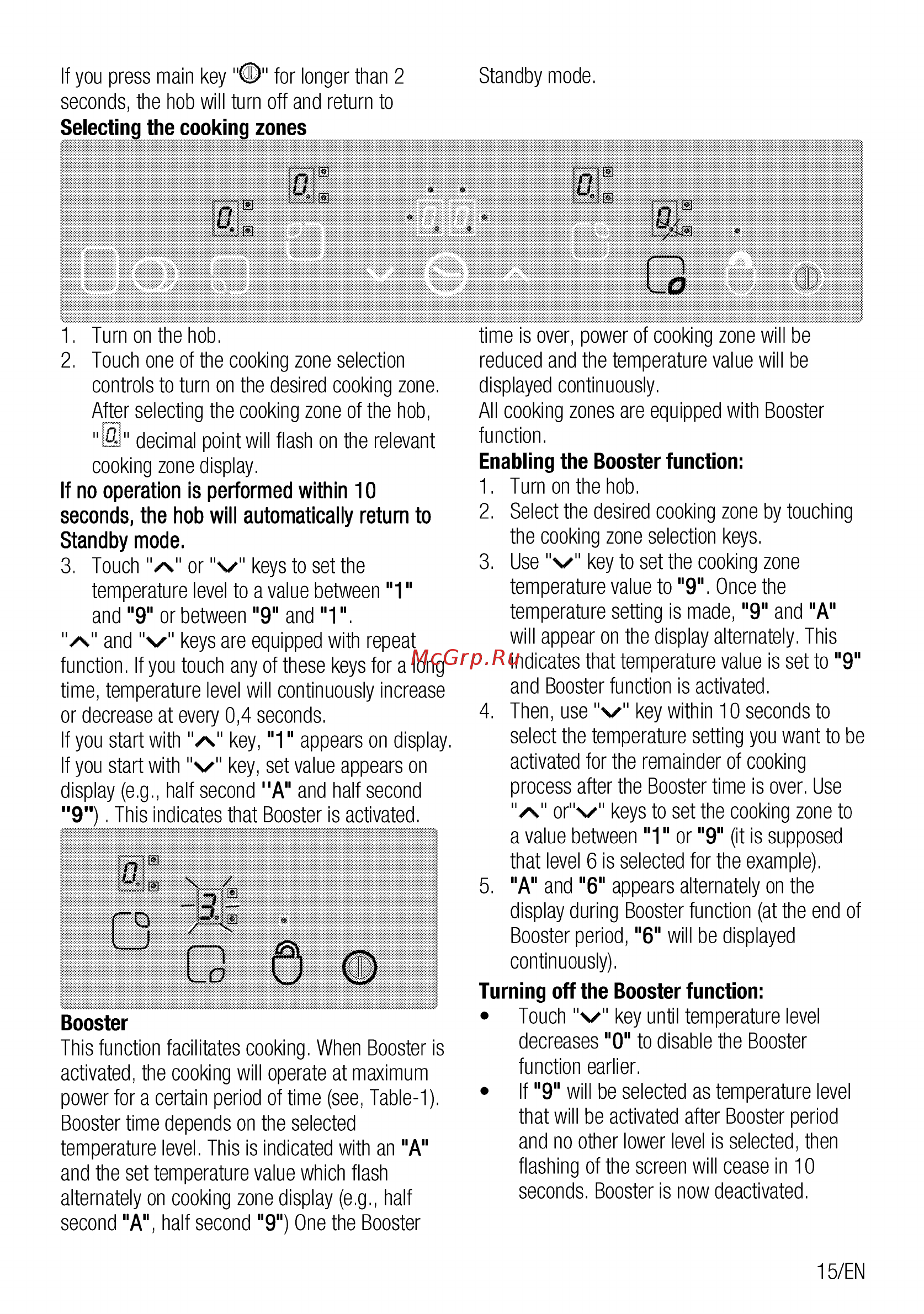

If you press main key for longer than 2 seconds the hob will turn off and return to Standby mode Selecting the cooking zones 1 Turn on the hob 2 Touch one of the cooking zone selection controls to turn on the desired cooking zone After selecting the cooking zone of the hob 0 decimal point will flash on the relevant cooking zone display time is over power of cooking zone will be reduced and the temperature value will be displayed continuously All cooking zones are equipped with Booster function Enabling the Booster function 1 Turn on the hob If no operation is performed within 10 2 Select the desired cooking zone by touching seconds the hob will automatically return to the cooking zone selection keys Standby mode 3 Touch zx or xz keys to set the temperature level to a value between 1 and 9 or between 9 and 1 zx and xz keys are equipped with repeat function If you touch any of these keys for a long time temperature level will continuously increase or decrease at every 0 4 seconds If you start with zx key 1 appears on display If you start with xz key set value appears on display e g half second A and half second 9 This indicates that Booster is activated 3 Use xz key to set the cooking zone temperature value to 9 Once the temperature setting is made 9 and A will appear on the display alternately This indicates that temperature value is set to 9 and Booster function is activated 4 Then use xz key within 10 seconds to select the temperature setting you want to be activated for the remainder of cooking process after the Booster time is over Use zx or xz keys to set the cooking zone to a value between 1 or 9 it is supposed that level 6 is selected for the example 5 A and 6 appears alternately on the display during Booster function at the end of Booster period 6 will be displayed continuously Turning off the Booster function Booster This function facilitates cooking When Booster is activated the cooking will operate at maximum power for a certain period of time see Table 1 Booster time depends on the selected temperature level This is indicated with an A and the set temperature value which flash alternately on cooking zone display e g half second A half second 9 One the Booster Touch xz key until temperature level decreases 0 to disable the Booster function earlier If 9 will be selected as temperature level that will be activated after Booster period and no other lower level is selected then flashing of the screen will cease in 10 seconds Booster is now deactivated 15 EN
