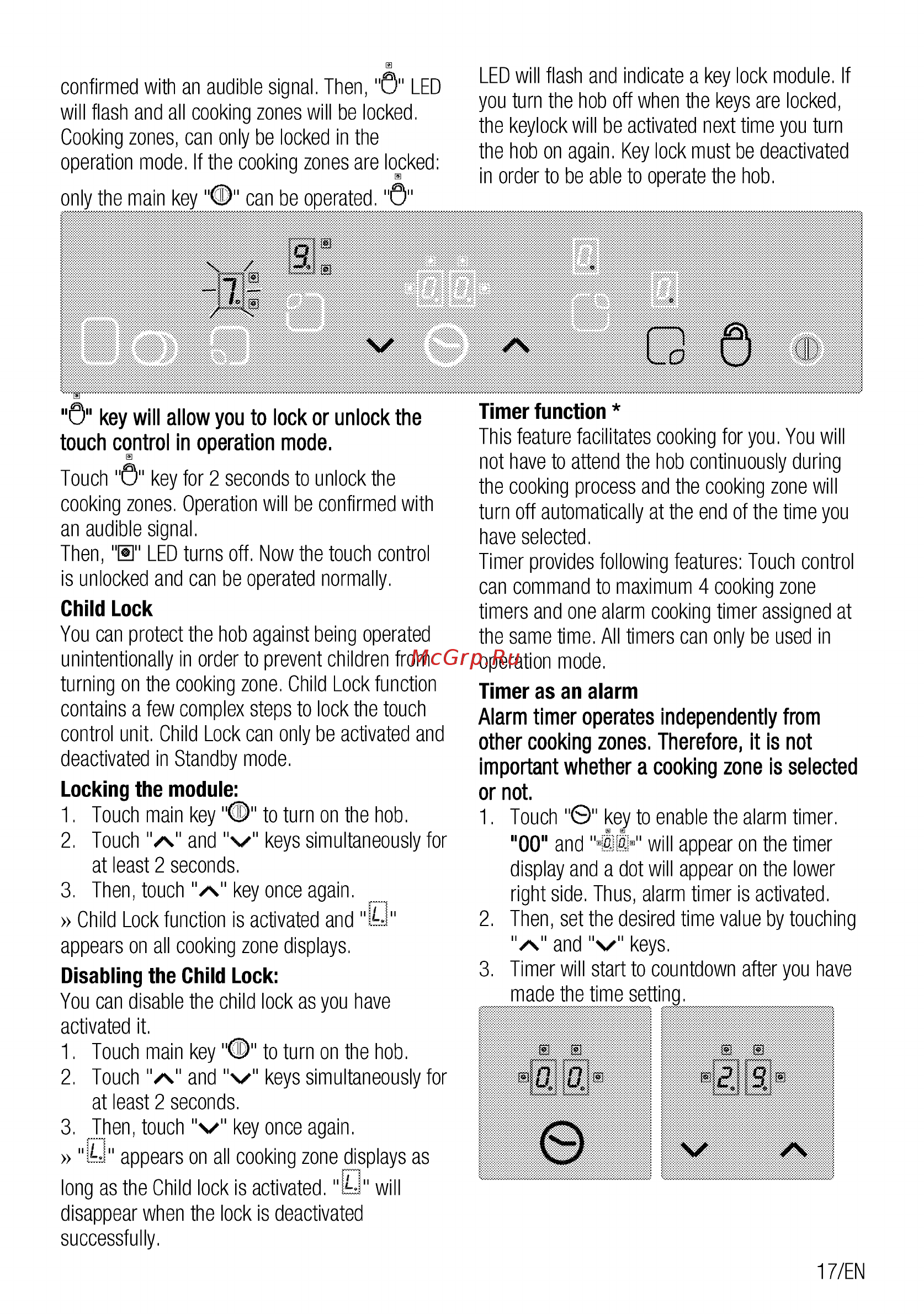

confirmed with an audible signal Then 0 LED will flash and all cooking zones will be locked Cooking zones can only be locked in the operation mode If the cooking zones are locked LED will flash and indicate a key lock module If you turn the hob off when the keys are locked the keylock will be activated next time you turn the hob on again Key lock must be deactivated in order to be able to operate the hob only the main key can be operated 0 0 0 key will allow you to lock or unlock theTimer function This feature facilitates cooking for you You will touch control in operation mode 1 Touch 0 key for 2 seconds to unlock the cooking zones Operation will be confirmed with an audible signal Then S LED turns off Now the touch control is unlocked and can be operated normally Child Lock You can protect the hob against being operated unintentionally in order to prevent children from turning on the cooking zone Child Lock function contains a few complex steps to lock the touch control unit Child Lock can only be activated and deactivated in Standby mode Locking the module 1 Touch main key to turn on the hob 2 Touch zx and xz keys simultaneously for at least 2 seconds 3 Then touch zx key once again Child Lock function is activated and H appears on all cooking zone displays Disabling the Child Lock You can disable the child lock as you have activated it 1 Touch main key to turn on the hob 2 Touch zx and xz keys simultaneously for at least 2 seconds 3 Then touch xz key once again J appears on all cooking zone displays as long as the Child lock is activated H will disappear when the lock is deactivated successfully not have to attend the hob continuously during the cooking process and the cooking zone will turn off automatically at the end of the time you have selected Timer provides following features Touch control can command to maximum 4 cooking zone timers and one alarm cooking timer assigned at the same time All timers can only be used in operation mode Timer as an alarm Alarm timer operates independently from other cooking zones Therefore it is not important whether a cooking zone is selected or not 1 Touch key to enable the alarm timer 00 and will appear on the timer display and a dot will appear on the lower right side Thus alarm timer is activated 2 Then set the desired time value by touching zx and xz keys 3 Timer will start to countdown after you have made the time setting 17 EN
