ASUS PRIME H570-PLUS
1-1
Product Introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.

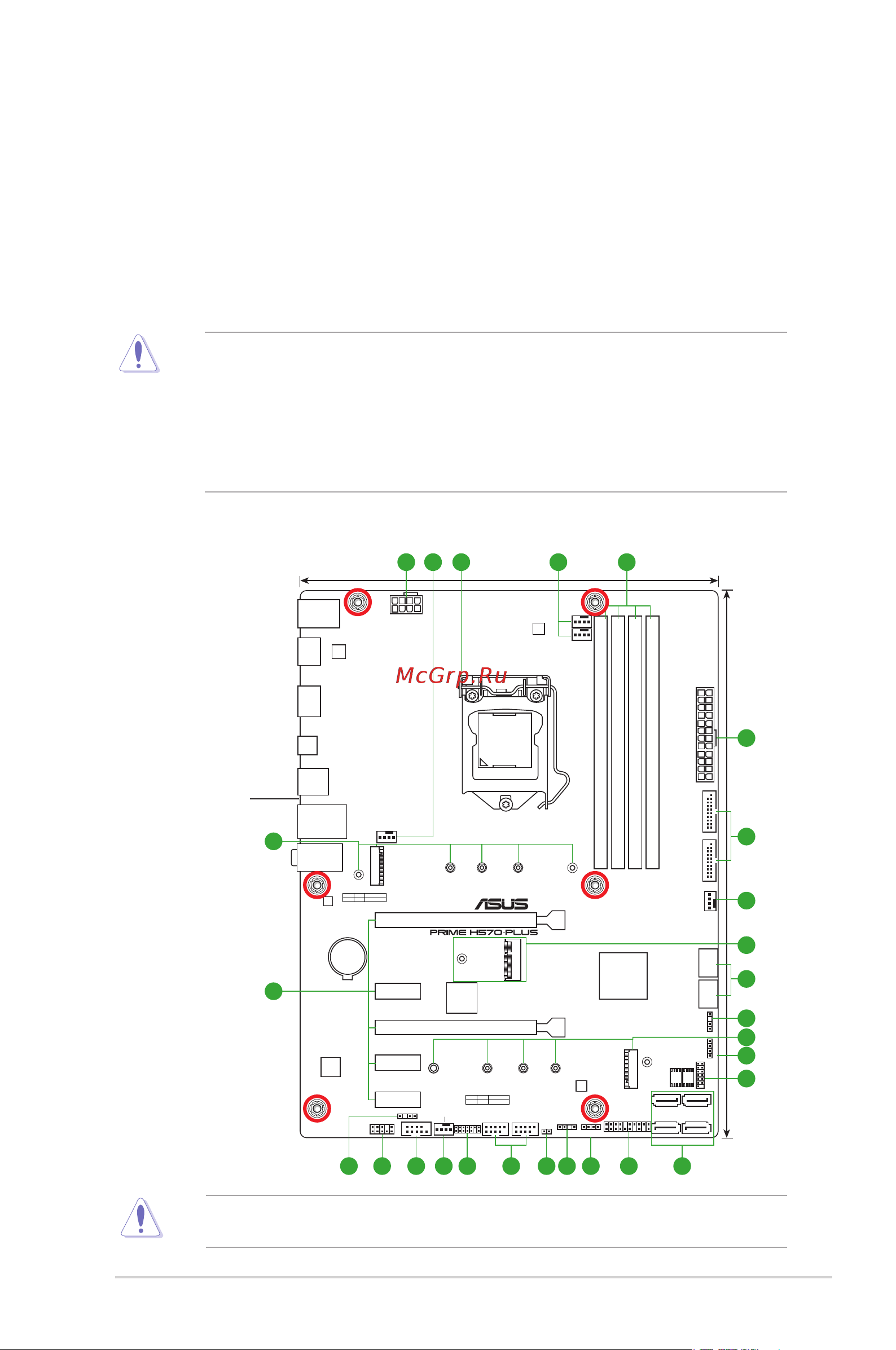

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2* (64bit, 288-pin module)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2* (64bit, 288-pin module)
DIGI+
VRM
ASM
1442K
SATA6G_1 SATA6G_2
SATA6G_4 SATA6G_3
CHA_FAN1
CPU_FAN
AIO_PUMP
CHA_FAN3
CHA_FAN2
COM
M.2(WIFI)
RGB_HEADER1
RGB_HEADER2
ADD_GEN2_1
ADD_GEN2_2
AURA
PANEL
AAFP
CLRTC
128Mb
BIOS
64Mb
BIOS
SATA6G_6SATA6G_5
ATX_12V
LGA1200
ATX_PWR
U32G1_1011U32G1_1213
Intel
®
H570
BATTERY
KBMS_USB67
Super
I/O
PCIEX1_1
2280
22110
22602242
2230
M.2_2(SOCKET3)
M.2_1(SOCKET3)
2280
22110
2260 2242
PCIEX1_2
PCIEX1_3
PCIEX16_2
PCIEX16_1
USB_E12 USB_E34
TB_HEADER
TPM
SPDIF_OUT
HDMI
DP
U32G2_C3
U32G2_12
23.4cm(9.2in)
30.5cm(12in)
AUDIO
LAN_USB45
M.2_1(SOCKET3)
PCIE
SATA
IRST
4.0 X4 CPU-attachedX
M.2_2(SOCKET3)
Ethernet
Audio
Codec
PCIE SATA IRST
3.0 X4 PCH-attachedV
8
7
17
11
10
6
15
4
5
413 19 9 18111416
3
5 214 4
71012
6
