ASUS PRIME B460-PLUS
1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage motherboard components.

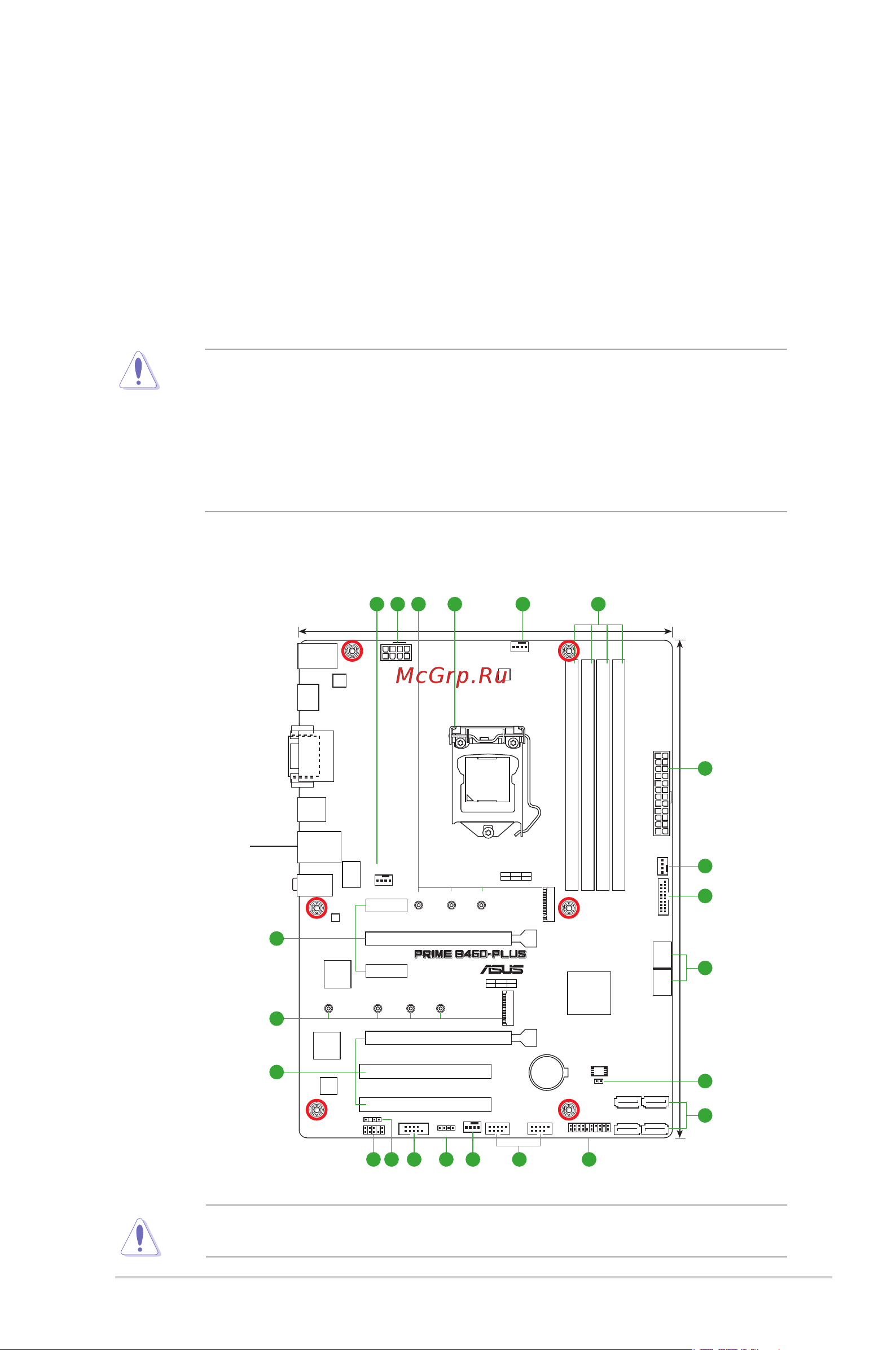

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
PCIEX16_1
PCIEX16_2
PCI_1
PCI_2
PCIEX1_1
PCIEX1_2
ALC
887
M.2_1(SOCKET3)
M.2_1(SOCKET3)
M.2_2(SOCKET3)
RTL
8111H
USB910 USB1112
AAFP
SPDIF_OUT
CLRTC
EATXPWR
BATTERY
Super
I/O
ASM
1083
ASM
1442K
2280 2260 2242
228022110 2260 2242
KBMS_USB78
22.86cm(9.0in)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2* (64bit, 288-pin module)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2* (64bit, 288-pin module)
SATA6G_2 SATA6G_1
LAN_U32G1_34
U32G1_56
HDMI
CHA_FAN1
CHA_FAN2
RGB_HEADER2
CPU_FAN
CHA_FAN3
30.5cm(12in)
LGA1200
DIGI
+VRM
COM
EATX12V
U32G1_12
Intel
®
B460
128Mb
BIOS
PANEL
AUDIO
SATA6G_5 SATA6G_6
SATA6G_3 SATA6G_4
LANGuard
PCIE SATA IRST
X4 VX
PCIE SATA IRST
X4 V X
DVI
VGA
5 64 1 24
159410121413
5
4
8
7
11
7
3
6
17
3
