Wired connection

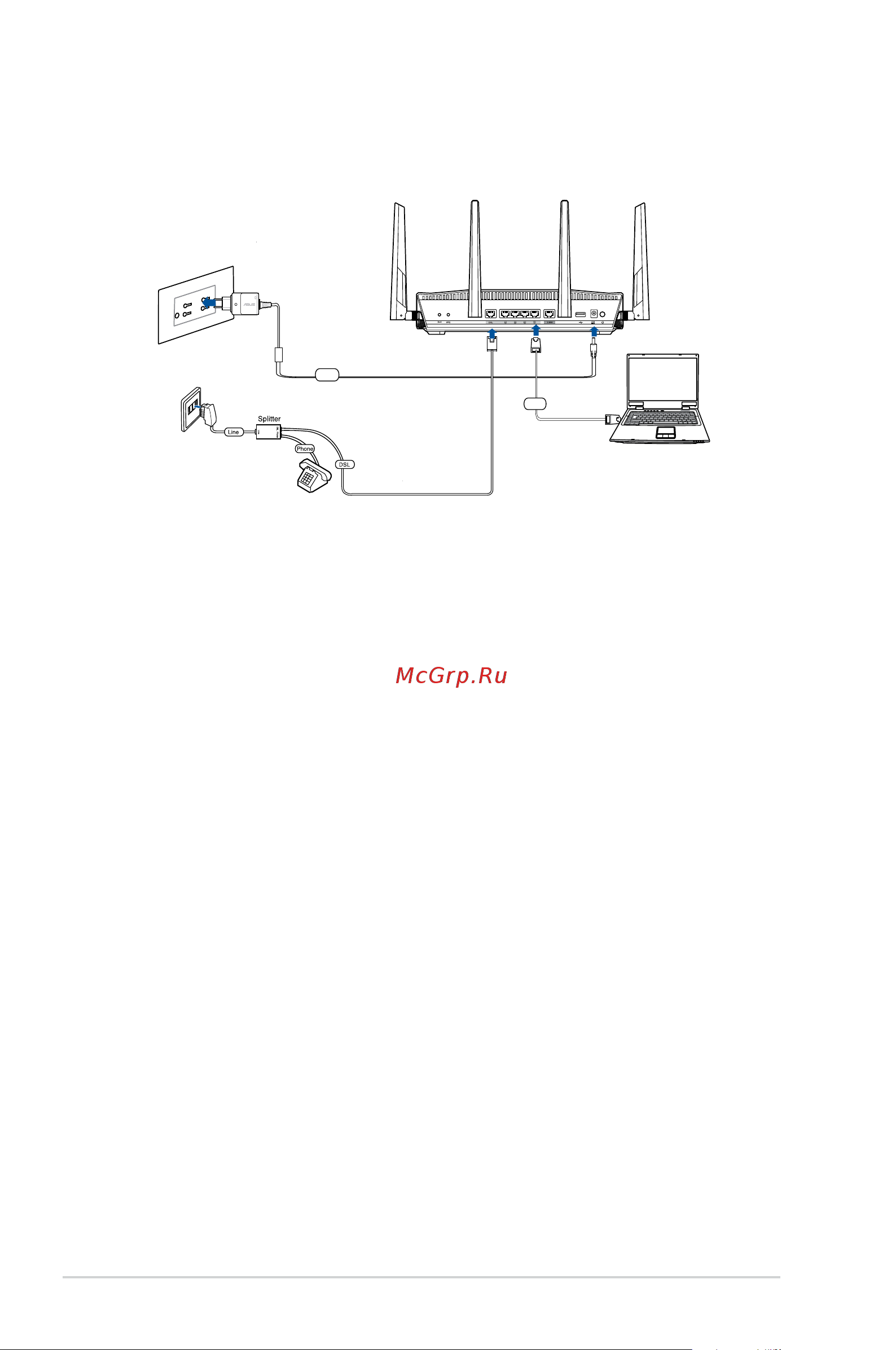

To set up your ADSL/VDSL router using a wired connection:

1. Insert the splitter’s line connector to the phone outlet and

connect your phone into the phone port.

2. Using the bundled phone cable, connect your DSL-AC88U

Annex B’s DSL port to the splitter’s DSL port.

3. Using the bundled network cable, connect your computer to

the ADSL/VDSL modem router’s LAN port.

Computer

Wall Power Outlet

Power

Wall telephone

outlet

LAN
