Asus ESC4000A-E10 [114/150] Chipset menu

5-24

Chapter 5: BIOS Setup

5.6 Chipset menu

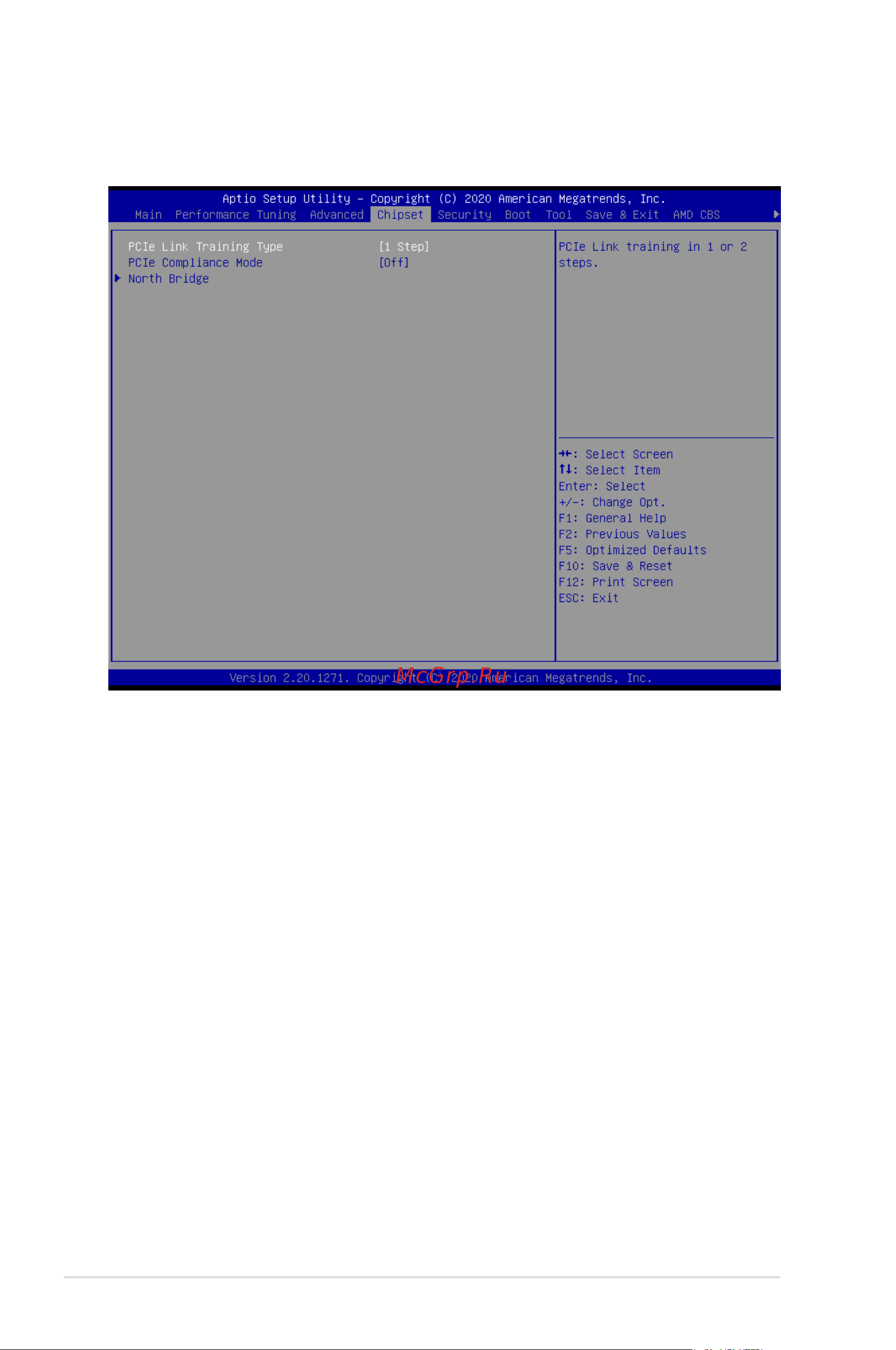

The Chipset menu items allow you to change the Chipset settings.

PCIe Link Training Type [1 Step]

This item allows you to select PCIe Link Training in 1 or 2 steps.

Configuration options: [1 Step] [2 Step]

PCIe Compliance Mode [Off]

This item allows you to turn the PCIe Compliance Mode on or off.

Configuration options: [On] [Off]

North Bridge

Socket 0 Information

This item displays the memory information on Socket 0.

Socket 1 Information

This item displays the memory information on Socket 1.
