2-29

ASUS ESC4000A-E10

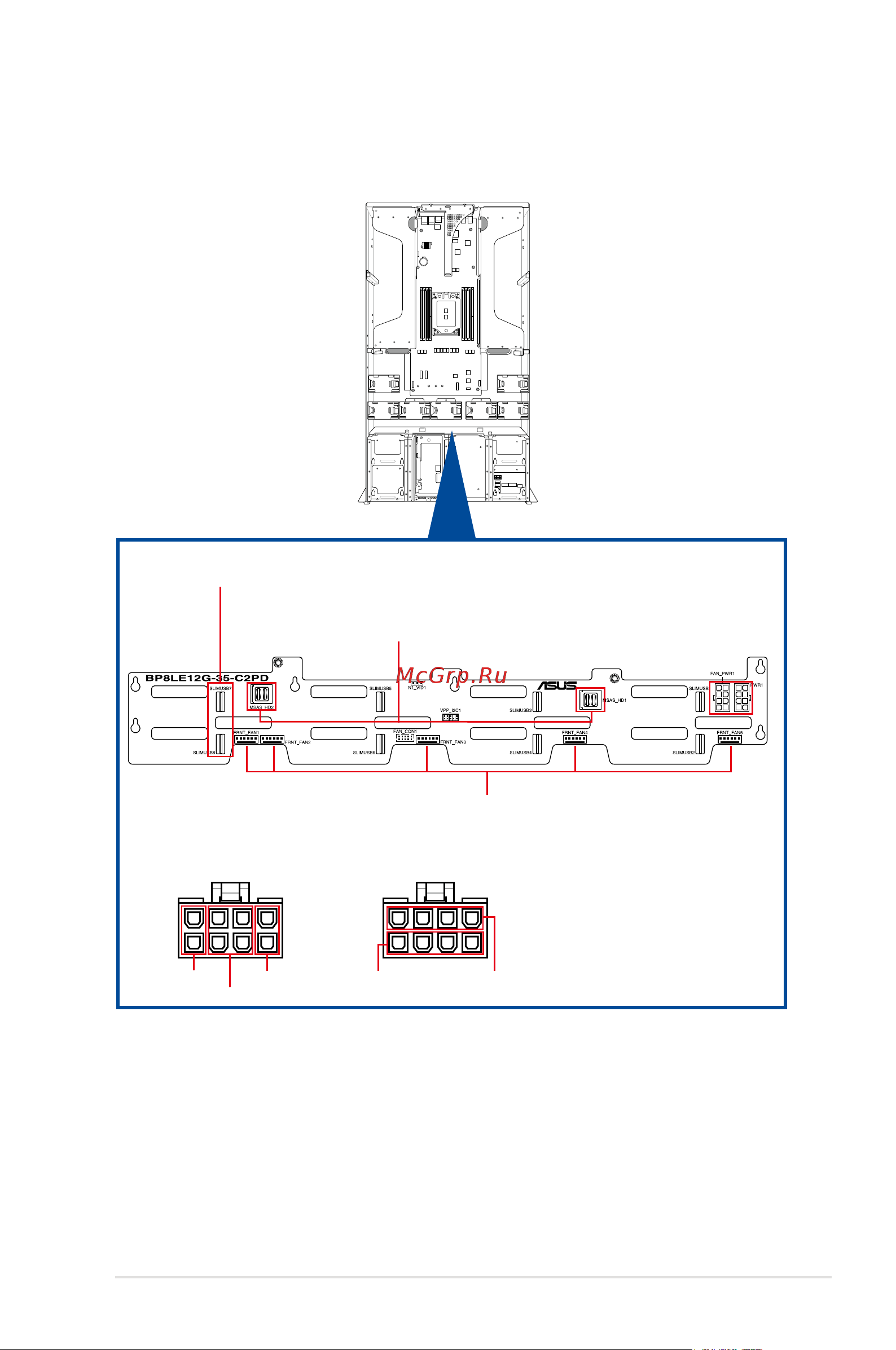

2.7 SATA/SAS backplane cabling

connect to mini-SAS HD connectors 1 and 2 on the

motherboard. With two mini-SAS HD cables connected, a

total number of 8 SAS/SATA HDDs can be supported

connect to SLIMPCIE1 on the motherboard to support 2

NVMe devices

connects to the system fans

red

PWR1 FAN_PWR1

yellow yellow

black

* Ensure to connect the corresponding 8-pin plugs to PWR1 and FAN_PWR1 as shown below:
