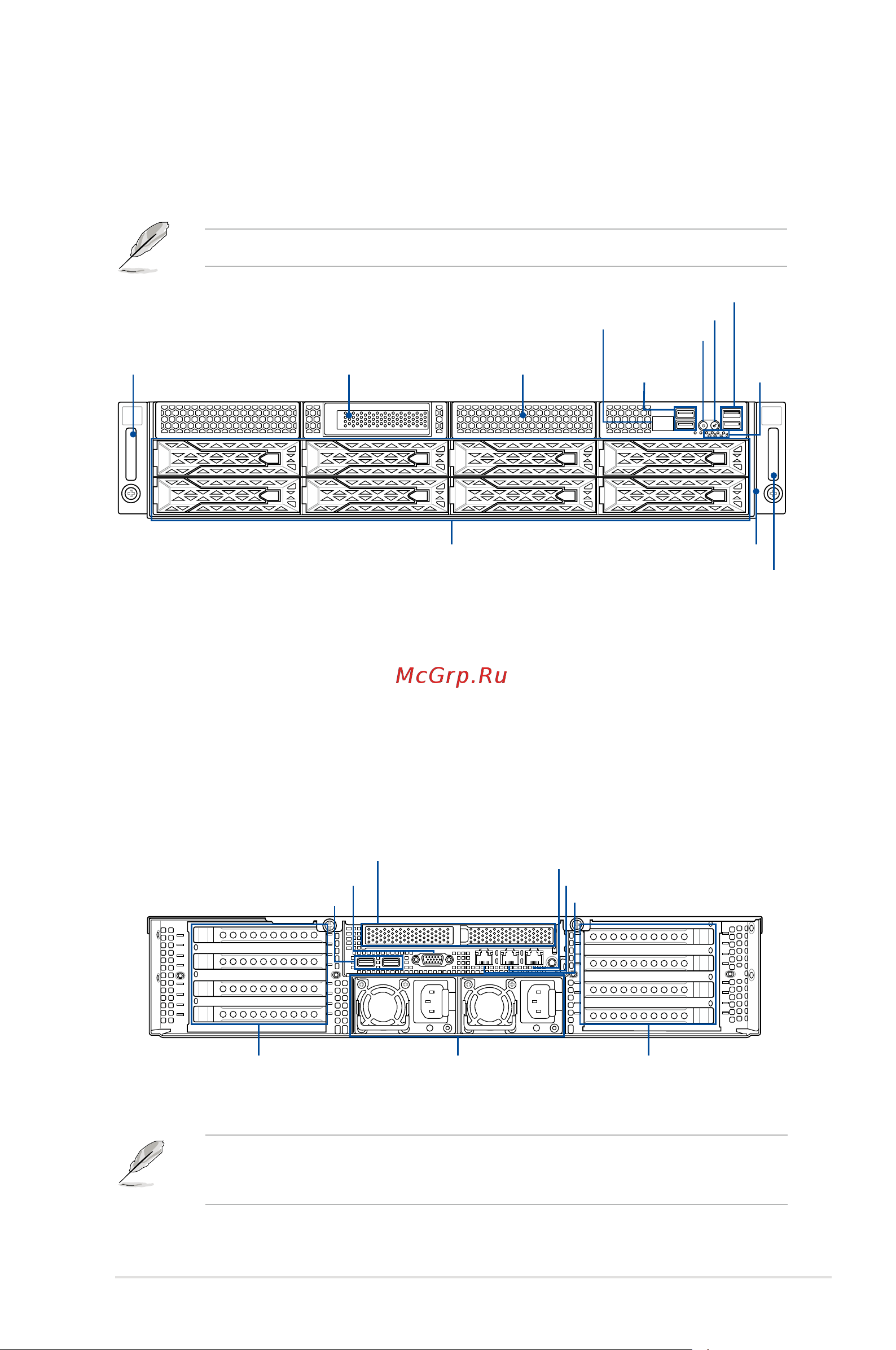

ASUS ESC4000A-E10
1-5
1.4 Front panel features
The barebone server features a simple yet stylish front panel. The power and location
buttons, LED indicators, and USB ports are located and easily accessible on the front panel.
Refer to the
1.7.1 Front panel LEDs
section for the LED descriptions.
1
2
USB 3.2 Gen 1
ports
Front panel
LED
USB 3.2 Gen 1 ports
Steel handle
Steel handle
Hot-swap 3.5-inch storage bays Asset tag
Location button
Power button
Half-length / Low-profile expansion slot Expansion card cage
Q-code/Port 80 LED
1
2
1.5 Rear panel features
The expansion slots and system power socket is located on the rear panel of the server.
The middle part includes the I/O shield with openings for the rear panel connectors on the
motherboard.
• The rear I/O ports do not appear on the rear panel if motherboard is not present.
• *The DM_LAN1 port is for ASUS ASMB9-iKVM controller only.
USB 3.0 ports
LAN port 2
VGA port
4 Full-length Expansion slots
Power cord connector and
Redundant power supply
LAN port 1
DM_LAN1*
4 Full-length Expansion slots
Half-length / Low-profile expansion slot
