12 ■English

Outdoor Unit

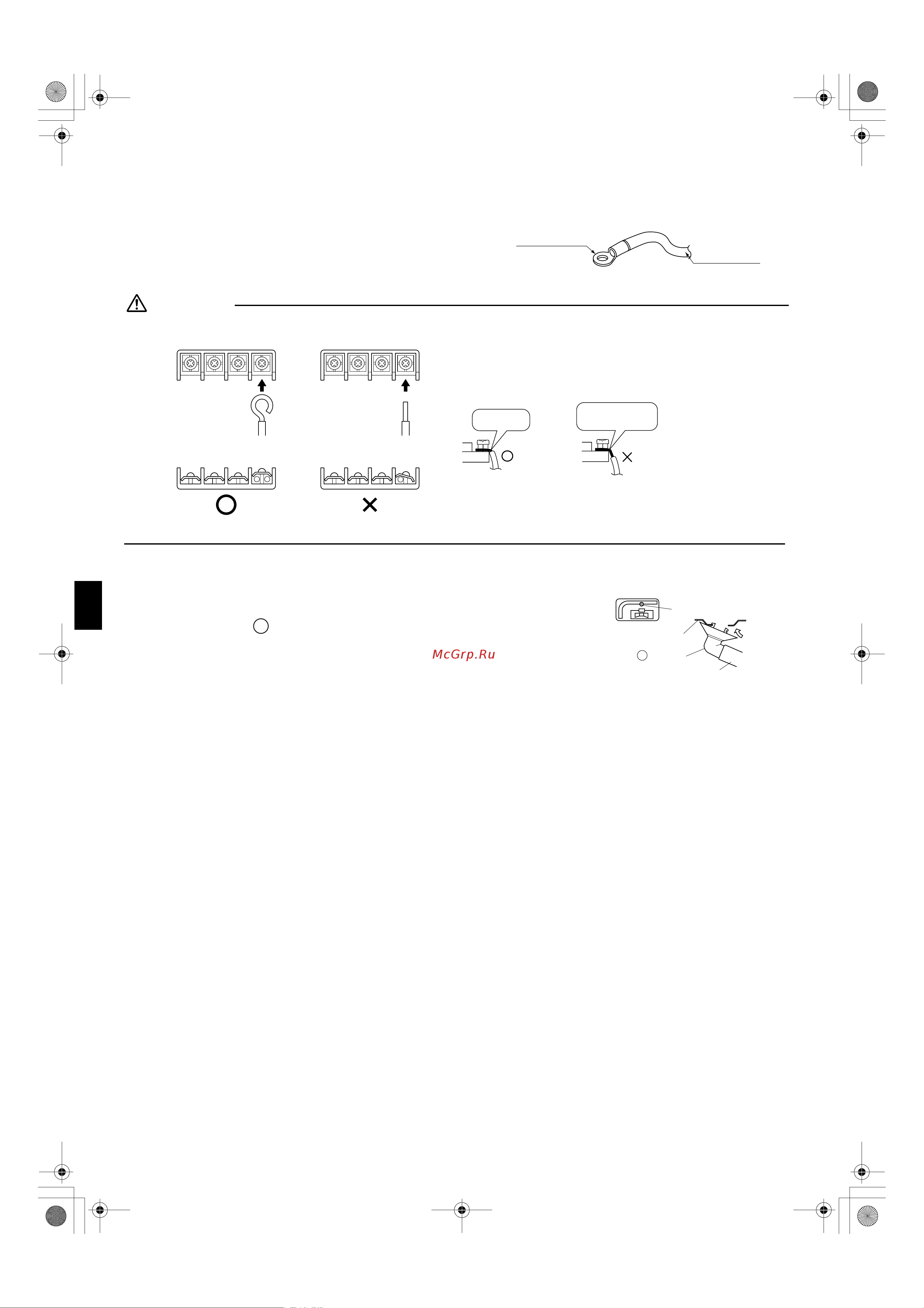

Observe the notes mentioned below when wiring to the terminal block.

Precautions to be taken for power supply wiring.

(Use a round crimp-style terminal for connection to the terminal block.

In case it cannot be used due to unavoidable reasons, be sure to

observe the following instruction.)

CAUTION

When connecting the connection wires to the terminal block using a single core wire, be sure to perform curling.

Problems with the work may cause heat and fires.

• Pull the wire and make sure that it does not disconnect. Then fix the wire in place with a wire stop.

Drain work.

1) Use drain plug for drainage.

2) If the drain port is covered by a mounting base or floor surface, place additional

foot bases of at least 30mm in height under the outdoor unit’s feet.

3) In cold areas, do not use a drain hose with the outdoor unit.

(Otherwise, drain water may freeze, impairing heating performance.)

Stranded wire

Round crimp-style

terminal

Strip wire end

to this point.

Excessive strip length

may cause electrical

shock or leakage.

Good Wrong

Stripping wire at terminal block

Drain-water hole

Bottom frame

Drain plug

Hose (available commercially,

inner dia. 16mm)
