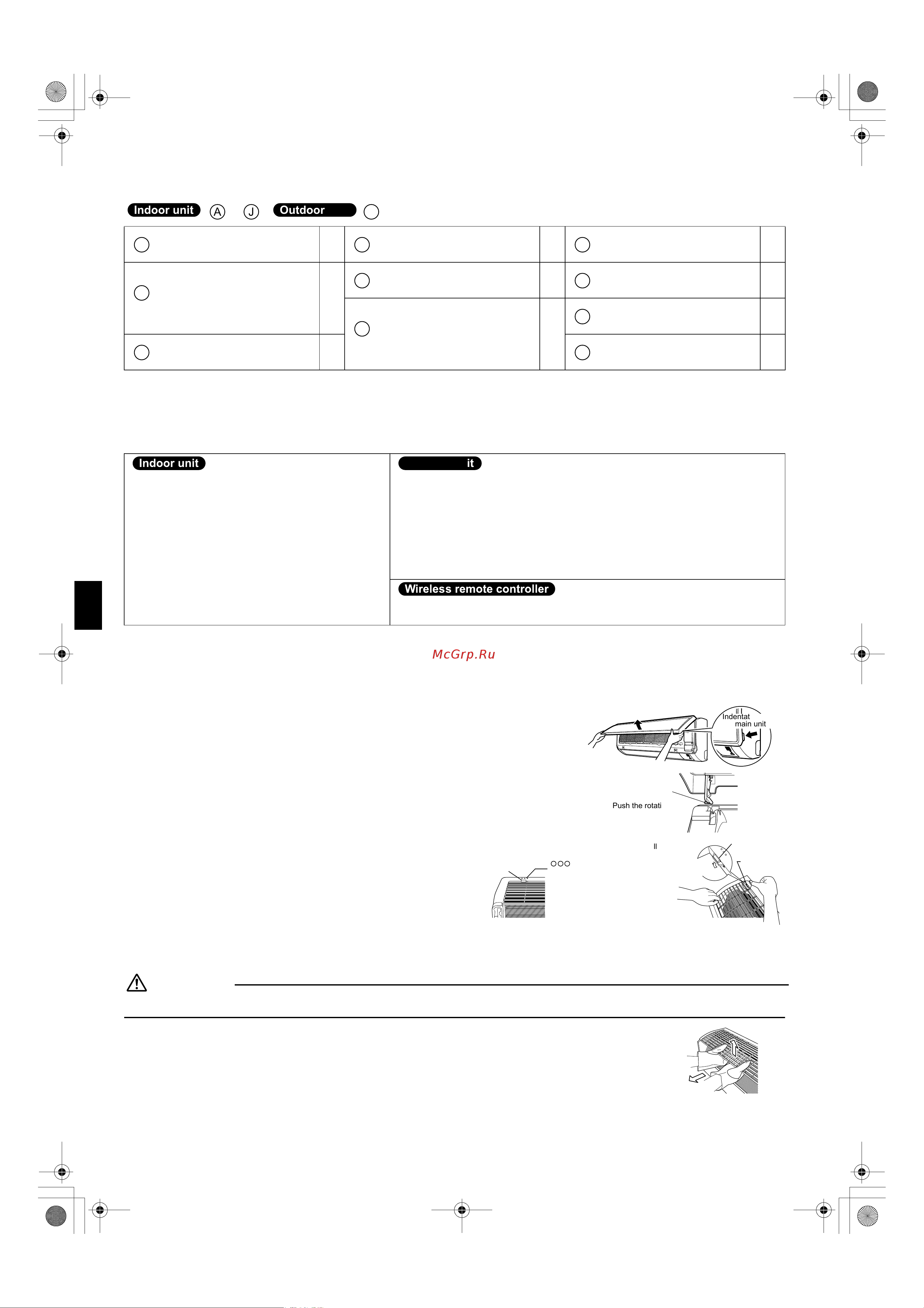

2 ■English
Accessories
– ,
*1 The thermistor cable is attached to the indoor unit.
Choosing a Site
• Before choosing the installation site, obtain user approval.
Installation Tips
1.
Removing and installing front panel.
• Removal method
1) Place your fingers in the indentations on the main unit (one each on the left
and right sides), and open the panel until it stops.
2)
Continue to open the front panel further while sliding the panel to the right and pulling it
toward you in order to disengage the rotating shaft on the left side. To disengage the rotating
shaft on the right side, slide the panel to the left while pulling it toward you.
• Installation method
Align the tabs of the front panel with the grooves, and push all the way in. Then close
slowly. Push the center of the lower surface of the panel firmly to engage the tabs.
2.
Removing and installing front grille.
• Removal method
1) Remove front panel to remove the air filter.
2) Remove the screws (2) from the front grille.
3) In front of the {{{ mark of the front grille, there are 3
upper hooks. Lightly pull the front grille toward you with one
hand, and push down on the hooks with the fingers of your other hand.
When there is no work space because the unit is close to ceiling
CAUTION
Be sure to wear protection gloves.
Place both hands under the center of the front grille, and while pushing up, pull it toward you.
• Installation method
1) Install the front grille and firmly engage the upper hooks (3 locations).
2) Install 2screws of the front grille.
3) Install the air filter and then mount the front panel.
Mounting plate
1
Remote controller holder
1
Thermistor cable (8m)*1
1
Air-Purifying Filter with
bacteriostatic, virustatic function
2
AAA dry-cell batteries
2
Operation manual
1
Indoor unit fixing screw
M4 × 12L
2
Installation manual
1
Wireless remote controller
1
Drain plug
1
The indoor unit should be sited in a place where:
• the restrictions on installation specified in the
indoor unit installation drawings are met,
•
both air intake and exhaust have clear paths met,
• the unit is not in the path of direct sunlight,
•
the unit is away from the source of heat or steam,
• there is no source of machine oil vapour (this
may shorten indoor unit life),
• cool (heat) air is circulated throughout the room,
•
the unit is away from electronic ignition type fluorescent lamps (inverter
or rapid start type) as they may shorten the remote control range,
•
the unit is at least 1 metre away from any television or radio
set (unit may cause interference with the picture or sound).
The outdoor unit should be sited in a place where:
•
the restrictions on installation specified in the outdoor unit installation diagram are met,
• drain water causes no trouble or problem in particular,
•
both air intake and exhaust have clear paths of air (they should be free of snow in snowy districts),
•
the unit is in a clear path of air but not directly exposed to rain, strong winds, or direct sunlight,
• there is no fear of inflammable gas leakage,
•
the unit is no directly exposed to salt, sulfidized gases, or machine oil vapour (they may shorten outdoor unit life),
• operation noise or hot air flow does not cause trouble to neighbours,
• the unit is at least 3 metres away from any television or radio antenna.
•
Turn on all the fluorescent lamps in the room, if any, and find the site where remote
controller signals are properly received by the indoor unit (within 7 metres).
A J
Outdoor unit
K
A D G
B
E H
F
J
C K
Outdoor unit
Indentations on
the main unit
Push the rotating
shaft of the front
panel into the groove.
Rotating shaft
¡¡¡
mark area
(3 locations)
Upper hook
Lightly pull the
front grille
toward you with
one hand, and
push down on
the hooks with
the fingers of
your other hand.
(3 locations)
Upper hook
Upper hook
Push
down.
1) Push up.
2) Pull toward you.
