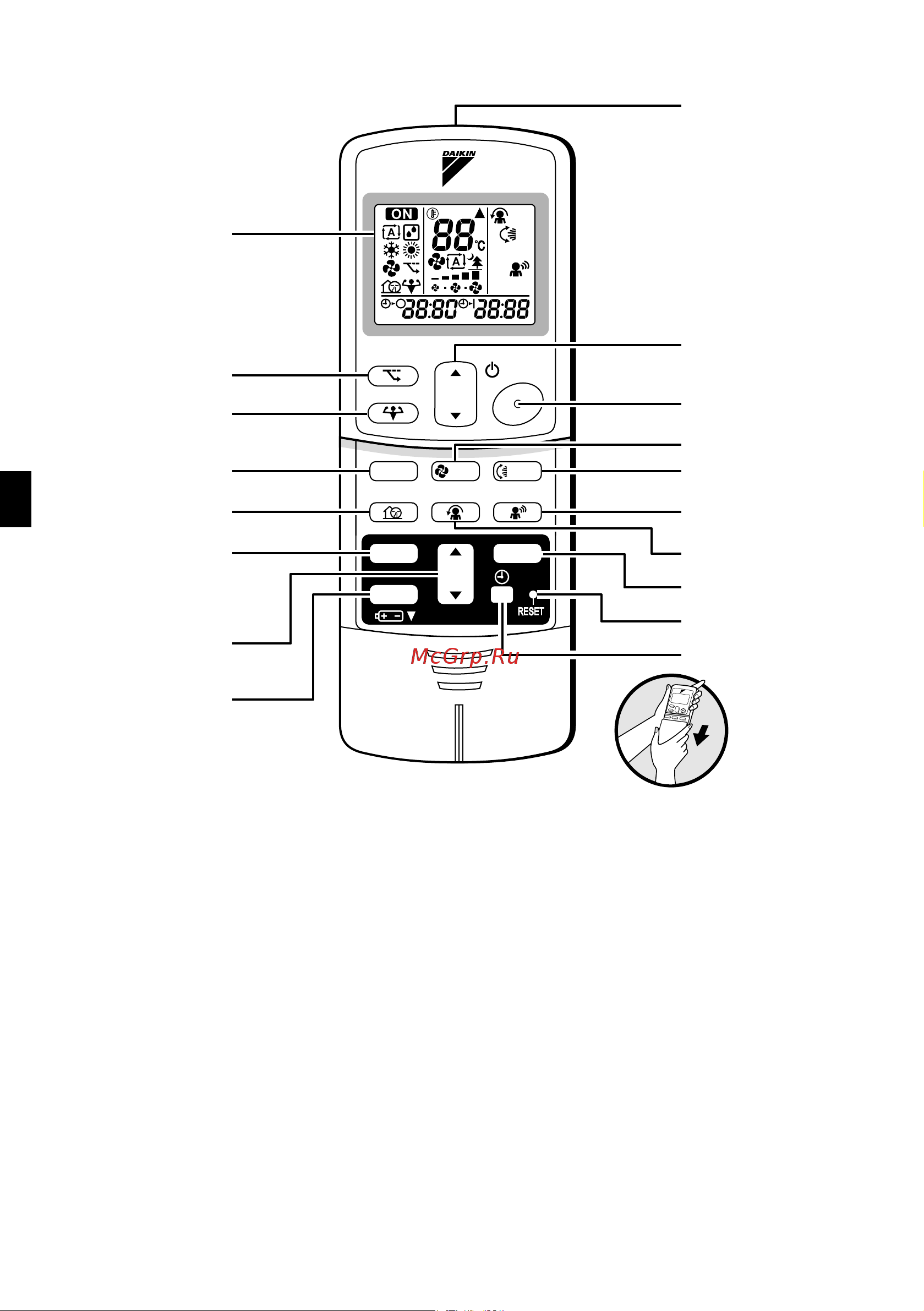

■ Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. ECONO button:
ECONO operation
(page 16.)
4. POWERFUL button:
POWERFUL operation
(page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button:
OUTDOOR UNIT QUIET
operation
(page 15.)
9. FAN setting button:
• It selects the airflow rate setting.
10. SWING button:
• Ajusting the Airflow Direction.
(page 12.)
11. COMFORT AIRFLOW button:
COMFORT
AIRFLOW operation (page 13.)
12.
SENSOR button: INTELLIGENT EYE operation (page 17.)
13. ON TIMER button:
(page 20.)
14. OFF TIMER button:
(page 19.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button:
(page 9.)
18. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
QUIET
SENSOR
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
1
2
5
6
9
10
12
11
16
18
17
13
15
14
<
ARC433B50, B43
>
3
4
7
8
01_EN_3P212420-2.fm Page 6 Monday, July 30, 2007 1:59 PM
